ZNR11

Toyota COROLLA-VERSO · 2004 · 3,566 parts · 182 categories

3,566 items

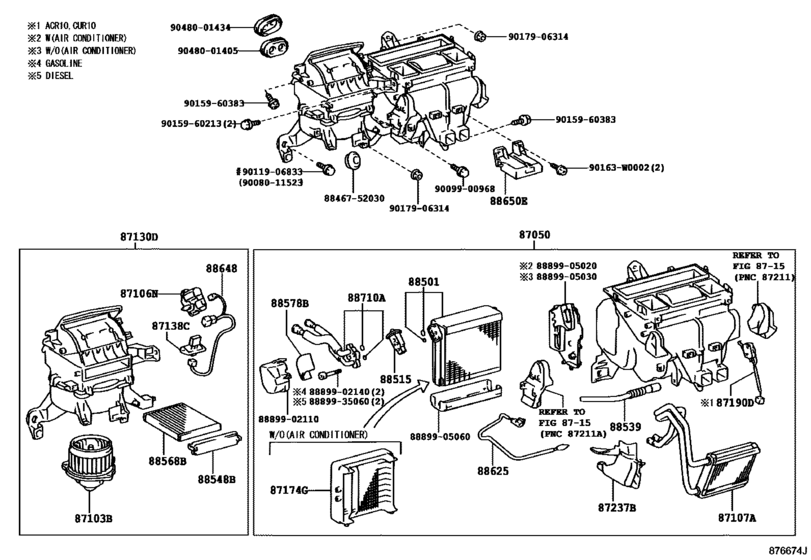

Heating & Air Conditioning - Cooler Unit ([02.2004 - 05.2007] MANUAL AIR CONDITIONER (0402-0705)RHD..TERRA ; (0508-0705)RHD..DCRL) 42

#	OEM	Part name
87050	87050-0F010	Radiator Assy, Air Conditioner
87050	87050-0F030	Radiator Assy, Air Conditioner
87050	87050-0F200	Radiator Assy, Air Conditioner
87103	87103-02070	Motor Sub-Assy, Blower W/fan
87106	87106-02100	Servo Sub-Assy, Damper(For Recirculation)
87107	87107-05090	Unit Sub-Assy, Heater Radiator
87130	87130-0F010	Blower Assy
87130	87130-0F011	Blower Assy
87138	87138-02040	Resistor, Blower
87174	87174-05010	Guide, Air Heater
87174	87174-0F010	Guide, Air Heater
87237	87237-05050	Cover, Heater Piping
88501	88501-05070	Evaporator Sub-Assy, Cooler, No.1
88501	88501-0F021	Evaporator Sub-Assy, Cooler, No.1
88515	88515-21040	Valve, Cooler Expansion
88539	88539-02070	Hose, Cooler Unit Drain, No.1
88548	88548-02040	Case, Air Filter
88568	88568-02030	Filter, Air
88578	88578-12520	Packing, Cooling Unit, No.1
88625	88620-05020	Thermistor, Cooler, No.1
88625	88625-02060	Thermistor, Cooler, No.1
88648	88648-0F110	Wiring, Cooler, No.1
88650	88650-0F030	Amplifier Assy, Air Conditioner, No.1
88650	88650-0F070	Amplifier Assy, Air Conditioner, No.1
88710	88710-05360	Tube Assy, Air Conditioner
90163	90163-W0002	New Genuine Part
8846752030	88467-52030	Grommet (For Cooler Unit Drain Hose)
8889902110	88899-02110	Cover, Evaporator
8889902140	88899-02140	Plate, Cover(For Air Filter)
8889905020	88899-05020	Cover, Evaporator
8889905030	88899-05030	Cover, Evaporator
8889905060	88899-05060	Cover, Evaporator
8889935060	88899-35060	Cover, Evaporator
9008011523	90080-11523	New Genuine Part
9009900968	90099-00968	Screw(For Air Conditioner Unit)
9011906833	90119-06833	BOLT WWASHER
9015960213	90159-60213	New Genuine Part
9015960383	90159-60383	SCREW WWASHER
9015960383	90159-A0010	SCREW WWASHER TAPP
9017906314	90179-06314	NUT
9048001405	90480-01405	Grommet, Heater Hose
9048001434	90480-01434	Grommet, (For Cooler Pipe)

OEM	Part name	Category
87050-0F010	Radiator Assy, Air Conditioner	Heating & Air Conditioning - Cooler Unit ([02.2004 - 05.2007] MANUAL AIR CONDITIONER (0402-0705)RHD..TERRA ; (0508-0705)RHD..DCRL)
87050-0F030	Radiator Assy, Air Conditioner	Heating & Air Conditioning - Cooler Unit ([02.2004 - 05.2007] MANUAL AIR CONDITIONER (0402-0705)RHD..TERRA ; (0508-0705)RHD..DCRL)
87050-0F200	Radiator Assy, Air Conditioner	Heating & Air Conditioning - Cooler Unit ([02.2004 - 05.2007] MANUAL AIR CONDITIONER (0402-0705)RHD..TERRA ; (0508-0705)RHD..DCRL)
87103-02070	Motor Sub-Assy, Blower W/fan	Heating & Air Conditioning - Cooler Unit ([02.2004 - 05.2007] MANUAL AIR CONDITIONER (0402-0705)RHD..TERRA ; (0508-0705)RHD..DCRL)
87106-02100	Servo Sub-Assy, Damper(For Recirculation)	Heating & Air Conditioning - Cooler Unit ([02.2004 - 05.2007] MANUAL AIR CONDITIONER (0402-0705)RHD..TERRA ; (0508-0705)RHD..DCRL)
87107-05090	Unit Sub-Assy, Heater Radiator	Heating & Air Conditioning - Cooler Unit ([02.2004 - 05.2007] MANUAL AIR CONDITIONER (0402-0705)RHD..TERRA ; (0508-0705)RHD..DCRL)
87130-0F010	Blower Assy	Heating & Air Conditioning - Cooler Unit ([02.2004 - 05.2007] MANUAL AIR CONDITIONER (0402-0705)RHD..TERRA ; (0508-0705)RHD..DCRL)
87130-0F011	Blower Assy	Heating & Air Conditioning - Cooler Unit ([02.2004 - 05.2007] MANUAL AIR CONDITIONER (0402-0705)RHD..TERRA ; (0508-0705)RHD..DCRL)
87138-02040	Resistor, Blower	Heating & Air Conditioning - Cooler Unit ([02.2004 - 05.2007] MANUAL AIR CONDITIONER (0402-0705)RHD..TERRA ; (0508-0705)RHD..DCRL)
87174-05010	Guide, Air Heater	Heating & Air Conditioning - Cooler Unit ([02.2004 - 05.2007] MANUAL AIR CONDITIONER (0402-0705)RHD..TERRA ; (0508-0705)RHD..DCRL)
87174-0F010	Guide, Air Heater	Heating & Air Conditioning - Cooler Unit ([02.2004 - 05.2007] MANUAL AIR CONDITIONER (0402-0705)RHD..TERRA ; (0508-0705)RHD..DCRL)
87237-05050	Cover, Heater Piping	Heating & Air Conditioning - Cooler Unit ([02.2004 - 05.2007] MANUAL AIR CONDITIONER (0402-0705)RHD..TERRA ; (0508-0705)RHD..DCRL)
88467-52030	Grommet (For Cooler Unit Drain Hose)	Heating & Air Conditioning - Cooler Unit ([02.2004 - 05.2007] MANUAL AIR CONDITIONER (0402-0705)RHD..TERRA ; (0508-0705)RHD..DCRL)
88501-05070	Evaporator Sub-Assy, Cooler, No.1	Heating & Air Conditioning - Cooler Unit ([02.2004 - 05.2007] MANUAL AIR CONDITIONER (0402-0705)RHD..TERRA ; (0508-0705)RHD..DCRL)
88501-0F021	Evaporator Sub-Assy, Cooler, No.1	Heating & Air Conditioning - Cooler Unit ([02.2004 - 05.2007] MANUAL AIR CONDITIONER (0402-0705)RHD..TERRA ; (0508-0705)RHD..DCRL)
88515-21040	Valve, Cooler Expansion	Heating & Air Conditioning - Cooler Unit ([02.2004 - 05.2007] MANUAL AIR CONDITIONER (0402-0705)RHD..TERRA ; (0508-0705)RHD..DCRL)
88539-02070	Hose, Cooler Unit Drain, No.1	Heating & Air Conditioning - Cooler Unit ([02.2004 - 05.2007] MANUAL AIR CONDITIONER (0402-0705)RHD..TERRA ; (0508-0705)RHD..DCRL)
88548-02040	Case, Air Filter	Heating & Air Conditioning - Cooler Unit ([02.2004 - 05.2007] MANUAL AIR CONDITIONER (0402-0705)RHD..TERRA ; (0508-0705)RHD..DCRL)
88568-02030	Filter, Air	Heating & Air Conditioning - Cooler Unit ([02.2004 - 05.2007] MANUAL AIR CONDITIONER (0402-0705)RHD..TERRA ; (0508-0705)RHD..DCRL)
88578-12520	Packing, Cooling Unit, No.1	Heating & Air Conditioning - Cooler Unit ([02.2004 - 05.2007] MANUAL AIR CONDITIONER (0402-0705)RHD..TERRA ; (0508-0705)RHD..DCRL)
88620-05020	Thermistor, Cooler, No.1	Heating & Air Conditioning - Cooler Unit ([02.2004 - 05.2007] MANUAL AIR CONDITIONER (0402-0705)RHD..TERRA ; (0508-0705)RHD..DCRL)
88625-02060	Thermistor, Cooler, No.1	Heating & Air Conditioning - Cooler Unit ([02.2004 - 05.2007] MANUAL AIR CONDITIONER (0402-0705)RHD..TERRA ; (0508-0705)RHD..DCRL)
88648-0F110	Wiring, Cooler, No.1	Heating & Air Conditioning - Cooler Unit ([02.2004 - 05.2007] MANUAL AIR CONDITIONER (0402-0705)RHD..TERRA ; (0508-0705)RHD..DCRL)
88650-0F030	Amplifier Assy, Air Conditioner, No.1	Heating & Air Conditioning - Cooler Unit ([02.2004 - 05.2007] MANUAL AIR CONDITIONER (0402-0705)RHD..TERRA ; (0508-0705)RHD..DCRL)
88650-0F070	Amplifier Assy, Air Conditioner, No.1	Heating & Air Conditioning - Cooler Unit ([02.2004 - 05.2007] MANUAL AIR CONDITIONER (0402-0705)RHD..TERRA ; (0508-0705)RHD..DCRL)
88710-05360	Tube Assy, Air Conditioner	Heating & Air Conditioning - Cooler Unit ([02.2004 - 05.2007] MANUAL AIR CONDITIONER (0402-0705)RHD..TERRA ; (0508-0705)RHD..DCRL)
88899-02110	Cover, Evaporator	Heating & Air Conditioning - Cooler Unit ([02.2004 - 05.2007] MANUAL AIR CONDITIONER (0402-0705)RHD..TERRA ; (0508-0705)RHD..DCRL)
88899-02140	Plate, Cover(For Air Filter)	Heating & Air Conditioning - Cooler Unit ([02.2004 - 05.2007] MANUAL AIR CONDITIONER (0402-0705)RHD..TERRA ; (0508-0705)RHD..DCRL)
88899-05020	Cover, Evaporator	Heating & Air Conditioning - Cooler Unit ([02.2004 - 05.2007] MANUAL AIR CONDITIONER (0402-0705)RHD..TERRA ; (0508-0705)RHD..DCRL)
88899-05030	Cover, Evaporator	Heating & Air Conditioning - Cooler Unit ([02.2004 - 05.2007] MANUAL AIR CONDITIONER (0402-0705)RHD..TERRA ; (0508-0705)RHD..DCRL)
88899-05060	Cover, Evaporator	Heating & Air Conditioning - Cooler Unit ([02.2004 - 05.2007] MANUAL AIR CONDITIONER (0402-0705)RHD..TERRA ; (0508-0705)RHD..DCRL)
88899-35060	Cover, Evaporator	Heating & Air Conditioning - Cooler Unit ([02.2004 - 05.2007] MANUAL AIR CONDITIONER (0402-0705)RHD..TERRA ; (0508-0705)RHD..DCRL)
90080-11523	New Genuine Part	Heating & Air Conditioning - Cooler Unit ([02.2004 - 05.2007] MANUAL AIR CONDITIONER (0402-0705)RHD..TERRA ; (0508-0705)RHD..DCRL)
90099-00968	Screw(For Air Conditioner Unit)	Heating & Air Conditioning - Cooler Unit ([02.2004 - 05.2007] MANUAL AIR CONDITIONER (0402-0705)RHD..TERRA ; (0508-0705)RHD..DCRL)
90119-06833	BOLT WWASHER	Heating & Air Conditioning - Cooler Unit ([02.2004 - 05.2007] MANUAL AIR CONDITIONER (0402-0705)RHD..TERRA ; (0508-0705)RHD..DCRL)
90159-60213	New Genuine Part	Heating & Air Conditioning - Cooler Unit ([02.2004 - 05.2007] MANUAL AIR CONDITIONER (0402-0705)RHD..TERRA ; (0508-0705)RHD..DCRL)
90159-60383	SCREW WWASHER	Heating & Air Conditioning - Cooler Unit ([02.2004 - 05.2007] MANUAL AIR CONDITIONER (0402-0705)RHD..TERRA ; (0508-0705)RHD..DCRL)
90159-A0010	SCREW WWASHER TAPP	Heating & Air Conditioning - Cooler Unit ([02.2004 - 05.2007] MANUAL AIR CONDITIONER (0402-0705)RHD..TERRA ; (0508-0705)RHD..DCRL)
90163-W0002	New Genuine Part	Heating & Air Conditioning - Cooler Unit ([02.2004 - 05.2007] MANUAL AIR CONDITIONER (0402-0705)RHD..TERRA ; (0508-0705)RHD..DCRL)
90179-06314	NUT	Heating & Air Conditioning - Cooler Unit ([02.2004 - 05.2007] MANUAL AIR CONDITIONER (0402-0705)RHD..TERRA ; (0508-0705)RHD..DCRL)
90480-01405	Grommet, Heater Hose	Heating & Air Conditioning - Cooler Unit ([02.2004 - 05.2007] MANUAL AIR CONDITIONER (0402-0705)RHD..TERRA ; (0508-0705)RHD..DCRL)
90480-01434	Grommet, (For Cooler Pipe)	Heating & Air Conditioning - Cooler Unit ([02.2004 - 05.2007] MANUAL AIR CONDITIONER (0402-0705)RHD..TERRA ; (0508-0705)RHD..DCRL)
