Search › Model › ZNR11

ZNR11

Toyota COROLLA-VERSO · 2004 · 3,566 parts · 182 categories

3,566 items

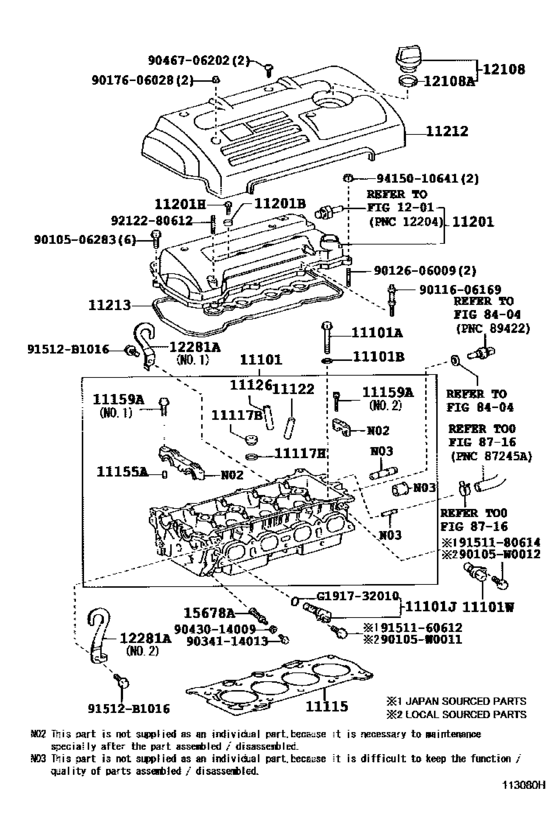

Cylinder Head ([02.2004 - ] (0402- )1ZZFE,3ZZFE) 47

#	OEM	Part name
11101	11101-0D030	Head Sub-Assy, Cylinder
11101	13711-22040	Valve, Intake
11101	11101-22071	Head Sub-Assy, Cylinder
11101	90910-02152	Bolt(For Cylinder Head Set)
11101	90201-10344	Washer, Plate(For Cylinder Head Set)
11101	15330-22030	Valve Assy, Camshaft Timing Oil Control
11101	15330-22050	Valve Assy, Camshaft Timing Oil Control
11101	90919-05026	Sensor, Position
11115	11115-22050	Gasket, Cylinder Head
11117	90341-20002	Plug, W/head Taper Screw, No.1
11117	90430-20004	Gasket(For Cylinder Head Screw Plug)
11122	11122-20020	Bush, Intake Valve Guide
11122	11122-22040	Bush, Intake Valve Guide
11122	11123-20020	Bush, Intake Valve Guide
11155	90250-06001	Pin, Straight
11159	90109-06080	Bolt, Stud(For Head To Cylinder Head Cover)
11159	90119-08A29	Bolt(For Head To Camshaft Bearing Cap)
11201	11201-0D020	Cover Sub-Assy, Cylinder Head
11201	11201-22060	Cover Sub-Assy, Cylinder Head
11201	90210-06013	Washer, Seal(For Cylinder Head Cover)
11201	90105-06202	Bolt(For Cylinder Head Cover)
11212	11212-0D080	Cover, Cylinder Head, No.2
11212	11212-22900	Cover, Cylinder Head, No.2
11212	11212-22150	Cover, Cylinder Head, No.2
11213	11213-0D030	Gasket, Cylinder Head Cover
11213	11213-22050	Gasket, Cylinder Head Cover
12108	12180-0N010	Cap Sub-Assy, Oil Filler
12108	12180-21010	Cap Sub-Assy, Oil Filler
12108	90080-43020	Gasket(For Oil Filler Cap)
12108	90430-37140	Gasket(For Oil Filler Cap)
12281	12281-15040	Hanger, Engine
12281	12281-22021	Hanger, Engine
15678	15678-21010	Filter, Oil Control Valve
90105	90105-W0011	New Genuine Part
90105	90105-W0012	New Genuine Part
91512	91512-B1016	New Genuine Part
9010506283	90105-06283	BOLT, FLANGE
9011606169	90116-06169	BOLT STUD
9012606009	90126-06009	STUD HEX LOBULAR
9017606028	90176-06028	Nut, Cap(For Cylinder Head Cover)
9034114013	90341-14013	Plug, W/head Taper Screw, No.1
9043014009	90430-14009	Gasket(For Cylinder Head Screw Plug)
9046706202	90467-06202	CLIP
9151160612	91511-60612	BOLT
9151180614	91511-80614	BOLT FLANGE
9212280612	92122-80612	BOLTSTUD
9415010641	94150-10641	Nut

OEM	Part name	Category
11101-0D030	Head Sub-Assy, Cylinder	Cylinder Head ([02.2004 - ] (0402- )1ZZFE,3ZZFE)
11101-22071	Head Sub-Assy, Cylinder	Cylinder Head ([02.2004 - ] (0402- )1ZZFE,3ZZFE)
11115-22050	Gasket, Cylinder Head	Cylinder Head ([02.2004 - ] (0402- )1ZZFE,3ZZFE)
11122-20020	Bush, Intake Valve Guide	Cylinder Head ([02.2004 - ] (0402- )1ZZFE,3ZZFE)
11122-22040	Bush, Intake Valve Guide	Cylinder Head ([02.2004 - ] (0402- )1ZZFE,3ZZFE)
11123-20020	Bush, Intake Valve Guide	Cylinder Head ([02.2004 - ] (0402- )1ZZFE,3ZZFE)
11201-0D020	Cover Sub-Assy, Cylinder Head	Cylinder Head ([02.2004 - ] (0402- )1ZZFE,3ZZFE)
11201-22060	Cover Sub-Assy, Cylinder Head	Cylinder Head ([02.2004 - ] (0402- )1ZZFE,3ZZFE)
11212-0D080	Cover, Cylinder Head, No.2	Cylinder Head ([02.2004 - ] (0402- )1ZZFE,3ZZFE)
11212-22150	Cover, Cylinder Head, No.2	Cylinder Head ([02.2004 - ] (0402- )1ZZFE,3ZZFE)
11212-22900	Cover, Cylinder Head, No.2	Cylinder Head ([02.2004 - ] (0402- )1ZZFE,3ZZFE)
11213-0D030	Gasket, Cylinder Head Cover	Cylinder Head ([02.2004 - ] (0402- )1ZZFE,3ZZFE)
11213-22050	Gasket, Cylinder Head Cover	Cylinder Head ([02.2004 - ] (0402- )1ZZFE,3ZZFE)
12180-0N010	Cap Sub-Assy, Oil Filler	Cylinder Head ([02.2004 - ] (0402- )1ZZFE,3ZZFE)
12180-21010	Cap Sub-Assy, Oil Filler	Cylinder Head ([02.2004 - ] (0402- )1ZZFE,3ZZFE)
12281-15040	Hanger, Engine	Cylinder Head ([02.2004 - ] (0402- )1ZZFE,3ZZFE)
12281-22021	Hanger, Engine	Cylinder Head ([02.2004 - ] (0402- )1ZZFE,3ZZFE)
13711-22040	Valve, Intake	Cylinder Head ([02.2004 - ] (0402- )1ZZFE,3ZZFE)
15330-22030	Valve Assy, Camshaft Timing Oil Control	Cylinder Head ([02.2004 - ] (0402- )1ZZFE,3ZZFE)
15330-22050	Valve Assy, Camshaft Timing Oil Control	Cylinder Head ([02.2004 - ] (0402- )1ZZFE,3ZZFE)
15678-21010	Filter, Oil Control Valve	Cylinder Head ([02.2004 - ] (0402- )1ZZFE,3ZZFE)
90080-43020	Gasket(For Oil Filler Cap)	Cylinder Head ([02.2004 - ] (0402- )1ZZFE,3ZZFE)
90105-06202	Bolt(For Cylinder Head Cover)	Cylinder Head ([02.2004 - ] (0402- )1ZZFE,3ZZFE)
90105-06283	BOLT, FLANGE	Cylinder Head ([02.2004 - ] (0402- )1ZZFE,3ZZFE)
90105-W0011	New Genuine Part	Cylinder Head ([02.2004 - ] (0402- )1ZZFE,3ZZFE)
90105-W0012	New Genuine Part	Cylinder Head ([02.2004 - ] (0402- )1ZZFE,3ZZFE)
90109-06080	Bolt, Stud(For Head To Cylinder Head Cover)	Cylinder Head ([02.2004 - ] (0402- )1ZZFE,3ZZFE)
90116-06169	BOLT STUD	Cylinder Head ([02.2004 - ] (0402- )1ZZFE,3ZZFE)
90119-08A29	Bolt(For Head To Camshaft Bearing Cap)	Cylinder Head ([02.2004 - ] (0402- )1ZZFE,3ZZFE)
90126-06009	STUD HEX LOBULAR	Cylinder Head ([02.2004 - ] (0402- )1ZZFE,3ZZFE)
90176-06028	Nut, Cap(For Cylinder Head Cover)	Cylinder Head ([02.2004 - ] (0402- )1ZZFE,3ZZFE)
90201-10344	Washer, Plate(For Cylinder Head Set)	Cylinder Head ([02.2004 - ] (0402- )1ZZFE,3ZZFE)
90210-06013	Washer, Seal(For Cylinder Head Cover)	Cylinder Head ([02.2004 - ] (0402- )1ZZFE,3ZZFE)
90250-06001	Pin, Straight	Cylinder Head ([02.2004 - ] (0402- )1ZZFE,3ZZFE)
90341-14013	Plug, W/head Taper Screw, No.1	Cylinder Head ([02.2004 - ] (0402- )1ZZFE,3ZZFE)
90341-20002	Plug, W/head Taper Screw, No.1	Cylinder Head ([02.2004 - ] (0402- )1ZZFE,3ZZFE)
90430-14009	Gasket(For Cylinder Head Screw Plug)	Cylinder Head ([02.2004 - ] (0402- )1ZZFE,3ZZFE)
90430-20004	Gasket(For Cylinder Head Screw Plug)	Cylinder Head ([02.2004 - ] (0402- )1ZZFE,3ZZFE)
90430-37140	Gasket(For Oil Filler Cap)	Cylinder Head ([02.2004 - ] (0402- )1ZZFE,3ZZFE)
90467-06202	CLIP	Cylinder Head ([02.2004 - ] (0402- )1ZZFE,3ZZFE)
90910-02152	Bolt(For Cylinder Head Set)	Cylinder Head ([02.2004 - ] (0402- )1ZZFE,3ZZFE)
90919-05026	Sensor, Position	Cylinder Head ([02.2004 - ] (0402- )1ZZFE,3ZZFE)
91511-60612	BOLT	Cylinder Head ([02.2004 - ] (0402- )1ZZFE,3ZZFE)
91511-80614	BOLT FLANGE	Cylinder Head ([02.2004 - ] (0402- )1ZZFE,3ZZFE)
91512-B1016	New Genuine Part	Cylinder Head ([02.2004 - ] (0402- )1ZZFE,3ZZFE)
92122-80612	BOLTSTUD	Cylinder Head ([02.2004 - ] (0402- )1ZZFE,3ZZFE)
94150-10641	Nut	Cylinder Head ([02.2004 - ] (0402- )1ZZFE,3ZZFE)
