Search › Model › ZNR11

ZNR11

Toyota COROLLA-VERSO · 2004 · 3,566 parts · 182 categories

3,566 items

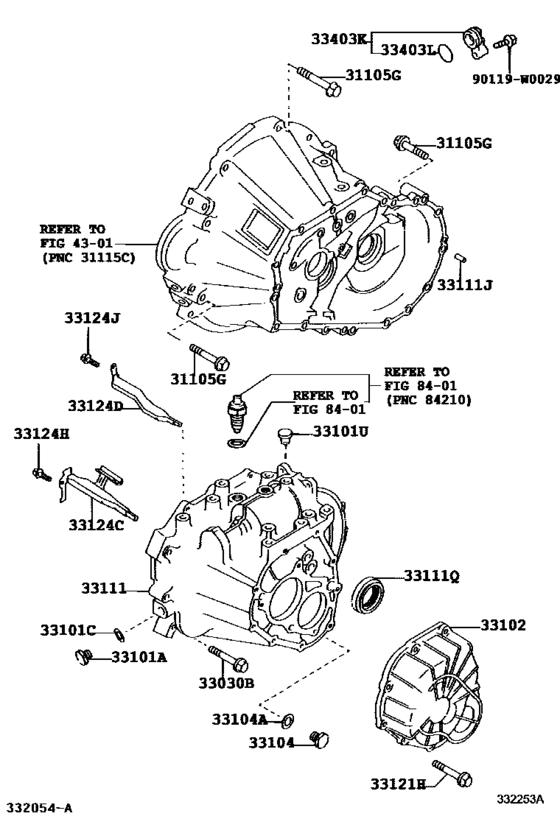

Clutch Housing & Transmission Case (Mtm) ([02.2004 - ] C251 (0402- )ZNR1#..5F) 33

#	OEM	Part name
31105	90119-W0049	Bolt(For Transaxle & Engine Setting)
31105	91642-81055	Bolt(For Transaxle & Engine Setting)
31105	90119-W0080	Bolt(For Transaxle & Engine Setting)
33030	90105-08086	Bolt(For Transaxle Case & Transmission Case Setting)
33030	90105-08353	Bolt(For Head To Camshaft Bearing Cap)
33030	90105-08430	Bolt(For Transaxle Case & Transmission Case Setting)
33101	90341-18006	Plug (No magnet)
33101	90341-18033	Plug(For Manual Transmission Filler)
33101	90430-18008	Gasket
33101	90430-T0021	Gasket(For Manual Transmission Filler Plug)
33101	90430-W0001	Gasket(For Manual Transmission Filler Plug)
33101	90930-03133	Plug, Breather
33102	33102-0D010	Cover Sub-Assy, Manual Transmission Case
33102	33102-12021	Cover Sub-Assy, Manual Transmission Case
33111	33111-05010	Case, Manual Transmission
33111	33295-52010	Shaft, Reverse Restrict
33111	90201-08049	Washer(For Rear Wheel Cylinder)
33111	33111-12300	Case, Manual Transmission
33111	90253-11001	Pin, Ring(For Camshaft Bearing Cap Setting)
33111	33111-05020	Case, Manual Transmission
33111	33111-05021	Case, Manual Transmission
33111	90250-08054	Pin, Straight
33111	90311-35044	Oil Seal, Rear Drive Shaft, Lh
33111	90311-35064	Oil Seal, Rear Drive Shaft, Lh
33111	90311-35058	Oil Seal, Rear Drive Shaft, Lh
33121	90119-08782	Bolt, W/washer(For Transmission Case Cover)
33121	91611-60835	Bolt(For Clutch Release Cylinder Setting)
33124	33124-20050	Pipe, Oil Receiver, No.1(Mtm)
33124	33124-12021	Pipe, Oil Receiver, No.2(Mtm)
33124	91611-G0820	Bolt
33403	33403-35230	Cover Sub-Assy, Speedometer Driven Hole
33403	96711-24030	Ring,o (For Speedometer Driven Hole Cover)
90119	90119-W0029	New Genuine Part

OEM	Part name	Category
33102-0D010	Cover Sub-Assy, Manual Transmission Case	Clutch Housing & Transmission Case (Mtm) ([02.2004 - ] C251 (0402- )ZNR1#..5F)
33102-12021	Cover Sub-Assy, Manual Transmission Case	Clutch Housing & Transmission Case (Mtm) ([02.2004 - ] C251 (0402- )ZNR1#..5F)
33111-05010	Case, Manual Transmission	Clutch Housing & Transmission Case (Mtm) ([02.2004 - ] C251 (0402- )ZNR1#..5F)
33111-05020	Case, Manual Transmission	Clutch Housing & Transmission Case (Mtm) ([02.2004 - ] C251 (0402- )ZNR1#..5F)
33111-05021	Case, Manual Transmission	Clutch Housing & Transmission Case (Mtm) ([02.2004 - ] C251 (0402- )ZNR1#..5F)
33111-12300	Case, Manual Transmission	Clutch Housing & Transmission Case (Mtm) ([02.2004 - ] C251 (0402- )ZNR1#..5F)
33124-12021	Pipe, Oil Receiver, No.2(Mtm)	Clutch Housing & Transmission Case (Mtm) ([02.2004 - ] C251 (0402- )ZNR1#..5F)
33124-20050	Pipe, Oil Receiver, No.1(Mtm)	Clutch Housing & Transmission Case (Mtm) ([02.2004 - ] C251 (0402- )ZNR1#..5F)
33295-52010	Shaft, Reverse Restrict	Clutch Housing & Transmission Case (Mtm) ([02.2004 - ] C251 (0402- )ZNR1#..5F)
33403-35230	Cover Sub-Assy, Speedometer Driven Hole	Clutch Housing & Transmission Case (Mtm) ([02.2004 - ] C251 (0402- )ZNR1#..5F)
90105-08086	Bolt(For Transaxle Case & Transmission Case Setting)	Clutch Housing & Transmission Case (Mtm) ([02.2004 - ] C251 (0402- )ZNR1#..5F)
90105-08353	Bolt(For Head To Camshaft Bearing Cap)	Clutch Housing & Transmission Case (Mtm) ([02.2004 - ] C251 (0402- )ZNR1#..5F)
90105-08430	Bolt(For Transaxle Case & Transmission Case Setting)	Clutch Housing & Transmission Case (Mtm) ([02.2004 - ] C251 (0402- )ZNR1#..5F)
90119-08782	Bolt, W/washer(For Transmission Case Cover)	Clutch Housing & Transmission Case (Mtm) ([02.2004 - ] C251 (0402- )ZNR1#..5F)
90119-W0029	New Genuine Part	Clutch Housing & Transmission Case (Mtm) ([02.2004 - ] C251 (0402- )ZNR1#..5F)
90119-W0049	Bolt(For Transaxle & Engine Setting)	Clutch Housing & Transmission Case (Mtm) ([02.2004 - ] C251 (0402- )ZNR1#..5F)
90119-W0080	Bolt(For Transaxle & Engine Setting)	Clutch Housing & Transmission Case (Mtm) ([02.2004 - ] C251 (0402- )ZNR1#..5F)
90201-08049	Washer(For Rear Wheel Cylinder)	Clutch Housing & Transmission Case (Mtm) ([02.2004 - ] C251 (0402- )ZNR1#..5F)
90250-08054	Pin, Straight	Clutch Housing & Transmission Case (Mtm) ([02.2004 - ] C251 (0402- )ZNR1#..5F)
90253-11001	Pin, Ring(For Camshaft Bearing Cap Setting)	Clutch Housing & Transmission Case (Mtm) ([02.2004 - ] C251 (0402- )ZNR1#..5F)
90311-35044	Oil Seal, Rear Drive Shaft, Lh	Clutch Housing & Transmission Case (Mtm) ([02.2004 - ] C251 (0402- )ZNR1#..5F)
90311-35058	Oil Seal, Rear Drive Shaft, Lh	Clutch Housing & Transmission Case (Mtm) ([02.2004 - ] C251 (0402- )ZNR1#..5F)
90311-35064	Oil Seal, Rear Drive Shaft, Lh	Clutch Housing & Transmission Case (Mtm) ([02.2004 - ] C251 (0402- )ZNR1#..5F)
90341-18006	Plug (No magnet)	Clutch Housing & Transmission Case (Mtm) ([02.2004 - ] C251 (0402- )ZNR1#..5F)
90341-18033	Plug(For Manual Transmission Filler)	Clutch Housing & Transmission Case (Mtm) ([02.2004 - ] C251 (0402- )ZNR1#..5F)
90430-18008	Gasket	Clutch Housing & Transmission Case (Mtm) ([02.2004 - ] C251 (0402- )ZNR1#..5F)
90430-T0021	Gasket(For Manual Transmission Filler Plug)	Clutch Housing & Transmission Case (Mtm) ([02.2004 - ] C251 (0402- )ZNR1#..5F)
90430-W0001	Gasket(For Manual Transmission Filler Plug)	Clutch Housing & Transmission Case (Mtm) ([02.2004 - ] C251 (0402- )ZNR1#..5F)
90930-03133	Plug, Breather	Clutch Housing & Transmission Case (Mtm) ([02.2004 - ] C251 (0402- )ZNR1#..5F)
91611-60835	Bolt(For Clutch Release Cylinder Setting)	Clutch Housing & Transmission Case (Mtm) ([02.2004 - ] C251 (0402- )ZNR1#..5F)
91611-G0820	Bolt	Clutch Housing & Transmission Case (Mtm) ([02.2004 - ] C251 (0402- )ZNR1#..5F)
91642-81055	Bolt(For Transaxle & Engine Setting)	Clutch Housing & Transmission Case (Mtm) ([02.2004 - ] C251 (0402- )ZNR1#..5F)
96711-24030	Ring,o (For Speedometer Driven Hole Cover)	Clutch Housing & Transmission Case (Mtm) ([02.2004 - ] C251 (0402- )ZNR1#..5F)
