ZNR11

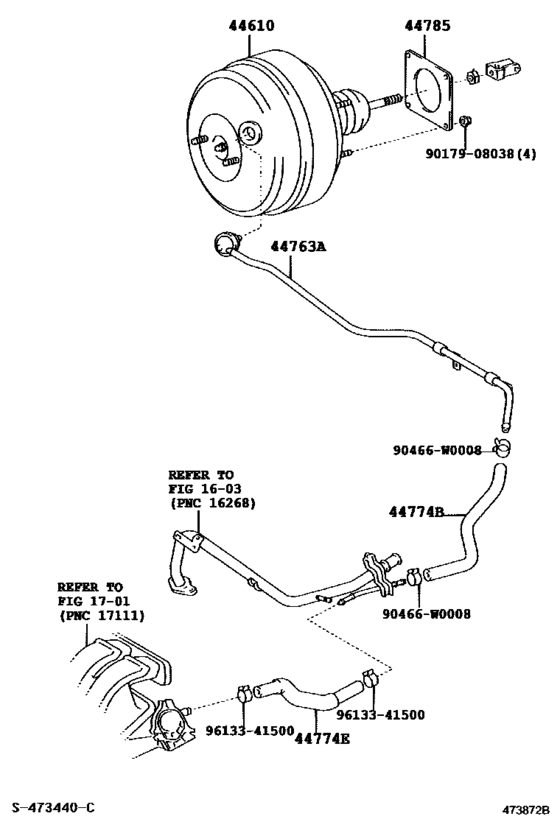

Brake Booster & Vacuum Tube ([02.2004 - ] (0402- )ZNR1#..RHD) 8
| # | OEM | Part name |
|---|---|---|
| 44610 | 44610-05100 | Booster Assy, Brake |
| 44763 | 44763-05020 | Tube, Hose To Hose, No.1 |
| 44774 | 44774-12420 | Hose, Union To Connector Tube |
| 44774 | 44774-20310 | Hose, Union To Connector Tube |
| 44785 | 44785-20020 | Gasket, Brake Booster |
| 90466 | 90466-W0008 | Clip(For Check Valve To Connector Tube) |
| 9017908038 | 90179-08038 | Nut |
| 9613341500 | 96133-41500 | Clamp Or Clip(For Air Hose, No.5) |
| OEM | Part name | Category |
|---|---|---|
| 44610-05100 | Booster Assy, Brake | Brake Booster & Vacuum Tube ([02.2004 - ] (0402- )ZNR1#..RHD) |
| 44763-05020 | Tube, Hose To Hose, No.1 | Brake Booster & Vacuum Tube ([02.2004 - ] (0402- )ZNR1#..RHD) |
| 44774-12420 | Hose, Union To Connector Tube | Brake Booster & Vacuum Tube ([02.2004 - ] (0402- )ZNR1#..RHD) |
| 44774-20310 | Hose, Union To Connector Tube | Brake Booster & Vacuum Tube ([02.2004 - ] (0402- )ZNR1#..RHD) |
| 44785-20020 | Gasket, Brake Booster | Brake Booster & Vacuum Tube ([02.2004 - ] (0402- )ZNR1#..RHD) |
| 90179-08038 | Nut | Brake Booster & Vacuum Tube ([02.2004 - ] (0402- )ZNR1#..RHD) |
| 90466-W0008 | Clip(For Check Valve To Connector Tube) | Brake Booster & Vacuum Tube ([02.2004 - ] (0402- )ZNR1#..RHD) |
| 96133-41500 | Clamp Or Clip(For Air Hose, No.5) | Brake Booster & Vacuum Tube ([02.2004 - ] (0402- )ZNR1#..RHD) |
