Search › Model › ZNM10
ZNM10

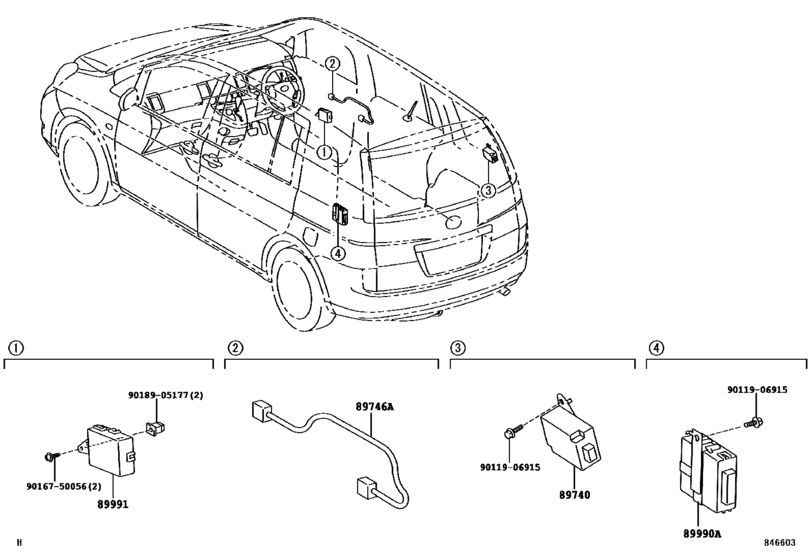

Wireless Door Lock ([09.2004 - 09.2009] ｱﾘ(ｽﾏ-ﾄ ｴﾝﾄﾘ) (0409-0909)G,PLTNA) 7
| # | OEM | Part name |
|---|---|---|
| 89740 | 89740-44030 | Computer Assy, Door Control W/receiver |
| 89746 | 89746-44010 | Harness, Electrical Key Wire |
| 89990 | 89990-44010 | Computer Assy, Smart Key |
| 89991 | 89991-44010 | Oscillator, Door Electrical Key |
| 9011906915 | 90119-06915 | BOLT W-WASHER |
| 9016750056 | 90167-50056 | SCREW PAN TAPPING |
| 9018905177 | 90189-05177 | GROMMETSCREW |
| OEM | Part name | Category |
|---|---|---|
| 89740-44030 | Computer Assy, Door Control W/receiver | Wireless Door Lock ([09.2004 - 09.2009] ｱﾘ(ｽﾏ-ﾄ ｴﾝﾄﾘ) (0409-0909)G,PLTNA) |
| 89746-44010 | Harness, Electrical Key Wire | Wireless Door Lock ([09.2004 - 09.2009] ｱﾘ(ｽﾏ-ﾄ ｴﾝﾄﾘ) (0409-0909)G,PLTNA) |
| 89990-44010 | Computer Assy, Smart Key | Wireless Door Lock ([09.2004 - 09.2009] ｱﾘ(ｽﾏ-ﾄ ｴﾝﾄﾘ) (0409-0909)G,PLTNA) |
| 89991-44010 | Oscillator, Door Electrical Key | Wireless Door Lock ([09.2004 - 09.2009] ｱﾘ(ｽﾏ-ﾄ ｴﾝﾄﾘ) (0409-0909)G,PLTNA) |
| 90119-06915 | BOLT W-WASHER | Wireless Door Lock ([09.2004 - 09.2009] ｱﾘ(ｽﾏ-ﾄ ｴﾝﾄﾘ) (0409-0909)G,PLTNA) |
| 90167-50056 | SCREW PAN TAPPING | Wireless Door Lock ([09.2004 - 09.2009] ｱﾘ(ｽﾏ-ﾄ ｴﾝﾄﾘ) (0409-0909)G,PLTNA) |
| 90189-05177 | GROMMETSCREW | Wireless Door Lock ([09.2004 - 09.2009] ｱﾘ(ｽﾏ-ﾄ ｴﾝﾄﾘ) (0409-0909)G,PLTNA) |
