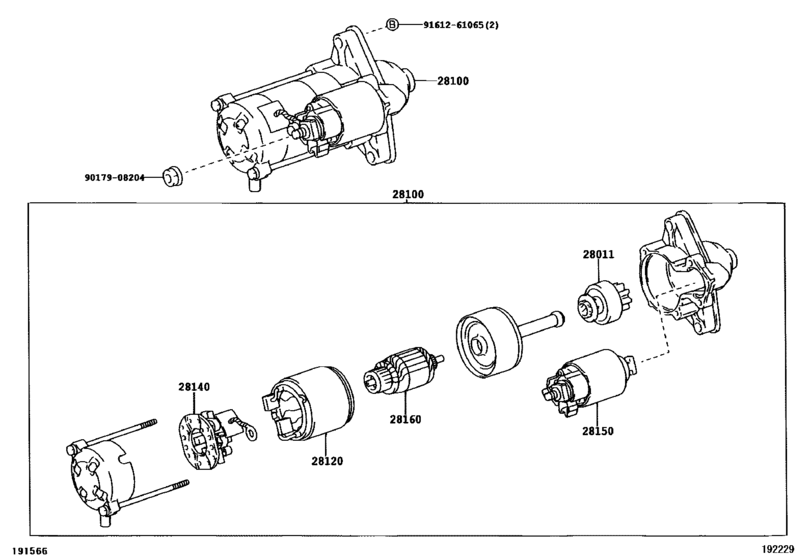

| 28011-70020 |
Clutch Sub-Assy, Starter |
Starter ([09.2004 - 09.2009] 12V 0.8KW,1.0KW (0409-0909)1ZZFE) |
| 28100-22030 |
Starter Assy |
Starter ([09.2004 - 09.2009] 12V 0.8KW,1.0KW (0409-0909)1ZZFE) |
| 28100-22031 |
Starter Assy |
Starter ([09.2004 - 09.2009] 12V 0.8KW,1.0KW (0409-0909)1ZZFE) |
| 28100-22040 |
Starter Assy |
Starter ([09.2004 - 09.2009] 12V 0.8KW,1.0KW (0409-0909)1ZZFE) |
| 28100-22041 |
Starter Assy |
Starter ([09.2004 - 09.2009] 12V 0.8KW,1.0KW (0409-0909)1ZZFE) |
| 28120-40130 |
Yoke Assy, Starter |
Starter ([09.2004 - 09.2009] 12V 0.8KW,1.0KW (0409-0909)1ZZFE) |
| 28120-47120 |
Yoke Assy, Starter |
Starter ([09.2004 - 09.2009] 12V 0.8KW,1.0KW (0409-0909)1ZZFE) |
| 28120-70020 |
Yoke Assy, Starter |
Starter ([09.2004 - 09.2009] 12V 0.8KW,1.0KW (0409-0909)1ZZFE) |
| 28120-70050 |
Yoke Assy, Starter |
Starter ([09.2004 - 09.2009] 12V 0.8KW,1.0KW (0409-0909)1ZZFE) |
| 28140-70020 |
Holder Assy, Starter Brush |
Starter ([09.2004 - 09.2009] 12V 0.8KW,1.0KW (0409-0909)1ZZFE) |
| 28150-22100 |
Switch Assy, Magnet Starter |
Starter ([09.2004 - 09.2009] 12V 0.8KW,1.0KW (0409-0909)1ZZFE) |
| 28150-70030 |
Switch Assy, Magnet Starter |
Starter ([09.2004 - 09.2009] 12V 0.8KW,1.0KW (0409-0909)1ZZFE) |
| 28160-70021 |
Armature Assy, Starter |
Starter ([09.2004 - 09.2009] 12V 0.8KW,1.0KW (0409-0909)1ZZFE) |
| 28160-70050 |
Armature Assy, Starter |
Starter ([09.2004 - 09.2009] 12V 0.8KW,1.0KW (0409-0909)1ZZFE) |
| 90080-18070 |
NUT, WWASHER |
Starter ([09.2004 - 09.2009] 12V 0.8KW,1.0KW (0409-0909)1ZZFE) |
| 90119-A0104 |
Bolt with Washer |
Starter ([09.2004 - 09.2009] 12V 0.8KW,1.0KW (0409-0909)1ZZFE) |
| 90179-08204 |
Nut |
Starter ([09.2004 - 09.2009] 12V 0.8KW,1.0KW (0409-0909)1ZZFE) |
| 91612-61065 |
Bolt(For Transaxle & Engine Setting) |
Starter ([09.2004 - 09.2009] 12V 0.8KW,1.0KW (0409-0909)1ZZFE) |
