Search › Model › ZNM10

ZNM10

Toyota ISIS · 2004 · 5,157 parts · 202 categories
ZNM10 ×

← Back to categories

5,157 items

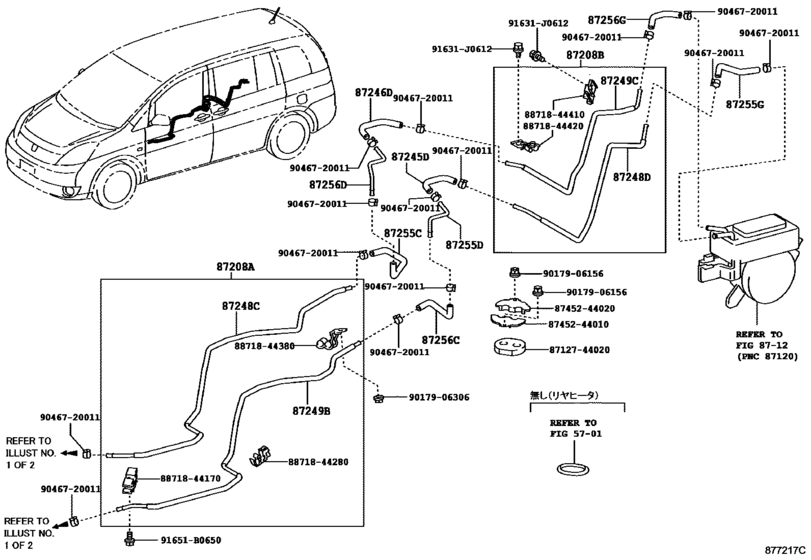

Heating & Air Conditioning - Water Piping ([09.2004 - ] ﾘﾔ (0409- )) 27
#OEMPart name
87208 87208-44150 Pipe Sub-Assy, Heater Water, A
87208 87208-44160 Pipe Sub-Assy, Heater Water, B
87245 87245-44A60 Hose, Heater Water, Inlet D
87246 87245-44A70 Hose, Heater Water, Outlet D
87248 87248-44110 Pipe, Heater Water Inlet, C
87248 87248-44130 Pipe, Heater Water Inlet, D
87249 87248-44120 Pipe, Heater Water Outlet, B
87249 87248-44140 Pipe, Heater Water Outlet, C
87255 87245-44A00 Hose, Rear Heater Water Inlet, C
87255 87248-44150 Hose, Rear Heater Water Inlet, D
87255 87245-44A20 Hose, Rear Heater Water Inlet, G
87256 87245-44A10 Hose, Rear Heater Water Outlet, C
87256 87248-44160 Hose, Rear Heater Water Outlet, D
87256 87245-44A30 Hose, Rear Heater Water Outlet, G
91631 91631-J0612 BRACKET
91651 91651-B0650 New Genuine Part
8712744020 87127-44020 Packing, Heater Air Damper
8745244010 87452-44010 Bracket, Fuel Magnet Valve
8745244020 87452-44020 Bracket, Fuel Magnet Valve
8871844170 88718-44170 Clamp(For Cooler Refrigerant Pipe), No.2
8871844280 88718-44280 Pipe, Cooler Refrigerant Suction, No.2
8871844380 88718-44380 Pipe, Cooler Refrigerant Suction, No.2
8871844410 88718-44410 Pipe, Cooler Refrigerant Suction, No.2
8871844420 88718-44420 Pipe, Cooler Refrigerant Suction, No.2
9017906156 90179-06156 Nut (For Transmission Control Cable)
9017906306 90179-06306 NUT
9046720011 90467-20011 Clamp Or Clip(For Water By-Pass Hose No.2)
