Search › Model › ZNE10
ZNE10

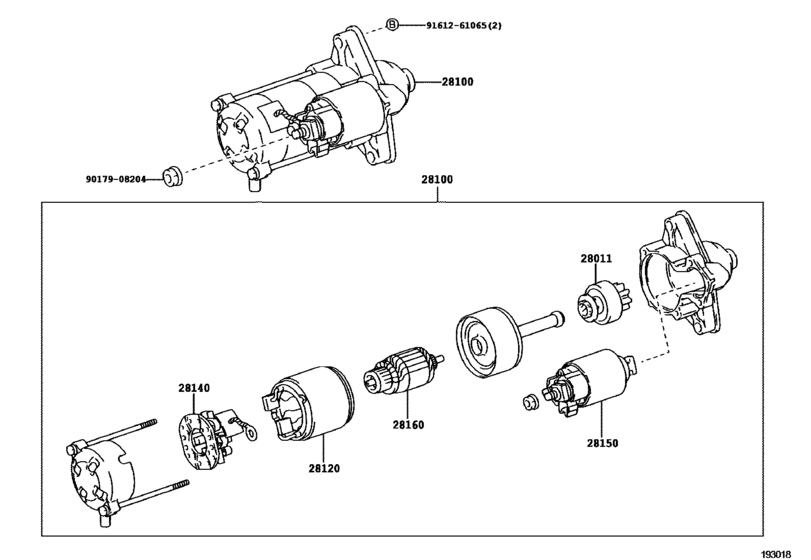

Starter ([04.2008 - ] 12V 0.8KW (0804- )1ZZFE) 11
| # | OEM | Part name |
|---|---|---|
| 28011 | 28011-70020 | Clutch Sub-Assy, Starter |
| 28100 | 28100-22100 | Starter Assy |
| 28100 | 28100-22031 | Starter Assy |
| 28120 | 28120-70020 | Yoke Assy, Starter |
| 28140 | 28140-70020 | Holder Assy, Starter Brush |
| 28150 | 28150-22100 | Switch Assy, Magnet Starter |
| 28160 | 28160-70021 | Armature Assy, Starter |
| 9017908204 | 90179-08204 | Nut |
| 9017908204 | 90080-18070 | NUT, WWASHER |
| 9161261065 | 91612-61065 | Bolt(For Transaxle & Engine Setting) |
| 9161261065 | 90119-A0104 | Bolt with Washer |
| OEM | Part name | Category |
|---|---|---|
| 28011-70020 | Clutch Sub-Assy, Starter | Starter ([04.2008 - ] 12V 0.8KW (0804- )1ZZFE) |
| 28100-22031 | Starter Assy | Starter ([04.2008 - ] 12V 0.8KW (0804- )1ZZFE) |
| 28100-22100 | Starter Assy | Starter ([04.2008 - ] 12V 0.8KW (0804- )1ZZFE) |
| 28120-70020 | Yoke Assy, Starter | Starter ([04.2008 - ] 12V 0.8KW (0804- )1ZZFE) |
| 28140-70020 | Holder Assy, Starter Brush | Starter ([04.2008 - ] 12V 0.8KW (0804- )1ZZFE) |
| 28150-22100 | Switch Assy, Magnet Starter | Starter ([04.2008 - ] 12V 0.8KW (0804- )1ZZFE) |
| 28160-70021 | Armature Assy, Starter | Starter ([04.2008 - ] 12V 0.8KW (0804- )1ZZFE) |
| 90080-18070 | NUT, WWASHER | Starter ([04.2008 - ] 12V 0.8KW (0804- )1ZZFE) |
| 90119-A0104 | Bolt with Washer | Starter ([04.2008 - ] 12V 0.8KW (0804- )1ZZFE) |
| 90179-08204 | Nut | Starter ([04.2008 - ] 12V 0.8KW (0804- )1ZZFE) |
| 91612-61065 | Bolt(For Transaxle & Engine Setting) | Starter ([04.2008 - ] 12V 0.8KW (0804- )1ZZFE) |
