ZNE10

Toyota WISH · 2003 · 4,560 parts · 365 categories

← Back to categories

4,560 items

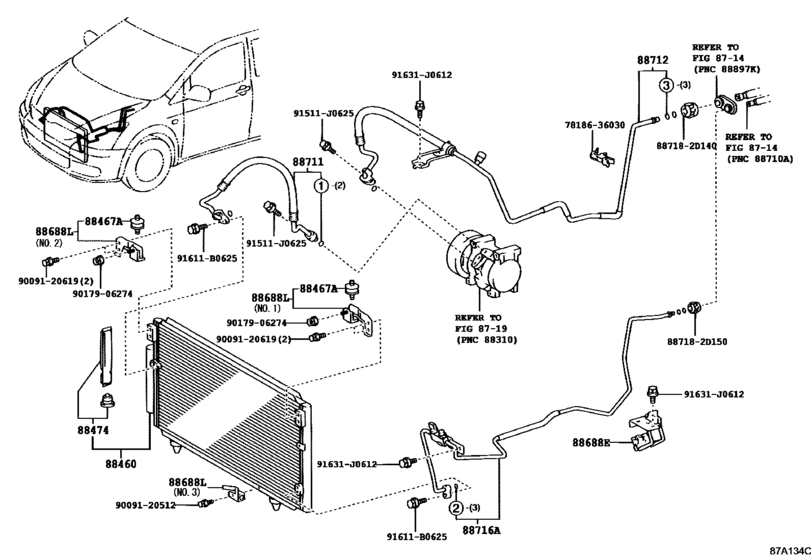

Heating & Air Conditioning - Cooler Piping ([04.2008 - ] (0804- )ZNE10) 19

#	OEM	Part name
88460	88460-21040	Condenser Assy, Cooler
88467	88467-12030	Cushion, Cooler Condenser, No.1
88474	88474-17010	Dryer, Cooler
88688	88688-68010	Bracket, Cooler Refrigerant Hose, No.1
88688	88688-68030	Bracket, Condenser Packing
88688	88688-68040	Bracket, Condenser Packing
88688	88688-68050	Bracket, Condenser Packing
88711	88703-68010	Hose, Cooler Refrigerant Discharge, No.1
88712	88704-68010	Hose, Cooler Refrigerant Suction, No.1
88716	88710-68010	Pipe, Cooler Refrigerant Liquid, A
91511	91511-J0625	Bolt(For Cylinder Head Cover)
91611	91611-B0625	Bolt (For Automatic Transmission Oil Pan)
91631	91631-J0612	BRACKET
887182	88718-2D140	Clamp(For Cooler Refrigerant Pipe), No.1
887182	88718-2D150	Clamp(For Cooler Refrigerant Pipe), No.1
7818636030	78186-36030	Clamp, Accelerator Control Cable, No.3
9009120512	90091-20512	BOLT WWASHER
9009120619	90091-20619	BOLT
9017906274	90179-06274	Nut

OEM	Part name	Category
78186-36030	Clamp, Accelerator Control Cable, No.3	Heating & Air Conditioning - Cooler Piping ([04.2008 - ] (0804- )ZNE10)
88460-21040	Condenser Assy, Cooler	Heating & Air Conditioning - Cooler Piping ([04.2008 - ] (0804- )ZNE10)
88467-12030	Cushion, Cooler Condenser, No.1	Heating & Air Conditioning - Cooler Piping ([04.2008 - ] (0804- )ZNE10)
88474-17010	Dryer, Cooler	Heating & Air Conditioning - Cooler Piping ([04.2008 - ] (0804- )ZNE10)
88688-68010	Bracket, Cooler Refrigerant Hose, No.1	Heating & Air Conditioning - Cooler Piping ([04.2008 - ] (0804- )ZNE10)
88688-68030	Bracket, Condenser Packing	Heating & Air Conditioning - Cooler Piping ([04.2008 - ] (0804- )ZNE10)
88688-68040	Bracket, Condenser Packing	Heating & Air Conditioning - Cooler Piping ([04.2008 - ] (0804- )ZNE10)
88688-68050	Bracket, Condenser Packing	Heating & Air Conditioning - Cooler Piping ([04.2008 - ] (0804- )ZNE10)
88703-68010	Hose, Cooler Refrigerant Discharge, No.1	Heating & Air Conditioning - Cooler Piping ([04.2008 - ] (0804- )ZNE10)
88704-68010	Hose, Cooler Refrigerant Suction, No.1	Heating & Air Conditioning - Cooler Piping ([04.2008 - ] (0804- )ZNE10)
88710-68010	Pipe, Cooler Refrigerant Liquid, A	Heating & Air Conditioning - Cooler Piping ([04.2008 - ] (0804- )ZNE10)
88718-2D140	Clamp(For Cooler Refrigerant Pipe), No.1	Heating & Air Conditioning - Cooler Piping ([04.2008 - ] (0804- )ZNE10)
88718-2D150	Clamp(For Cooler Refrigerant Pipe), No.1	Heating & Air Conditioning - Cooler Piping ([04.2008 - ] (0804- )ZNE10)
90091-20512	BOLT WWASHER	Heating & Air Conditioning - Cooler Piping ([04.2008 - ] (0804- )ZNE10)
90091-20619	BOLT	Heating & Air Conditioning - Cooler Piping ([04.2008 - ] (0804- )ZNE10)
90179-06274	Nut	Heating & Air Conditioning - Cooler Piping ([04.2008 - ] (0804- )ZNE10)
91511-J0625	Bolt(For Cylinder Head Cover)	Heating & Air Conditioning - Cooler Piping ([04.2008 - ] (0804- )ZNE10)
91611-B0625	Bolt (For Automatic Transmission Oil Pan)	Heating & Air Conditioning - Cooler Piping ([04.2008 - ] (0804- )ZNE10)
91631-J0612	BRACKET	Heating & Air Conditioning - Cooler Piping ([04.2008 - ] (0804- )ZNE10)
