Search › Model › ZNE10

ZNE10

Toyota WISH · 2003 · 4,560 parts · 365 categories

4,560 items

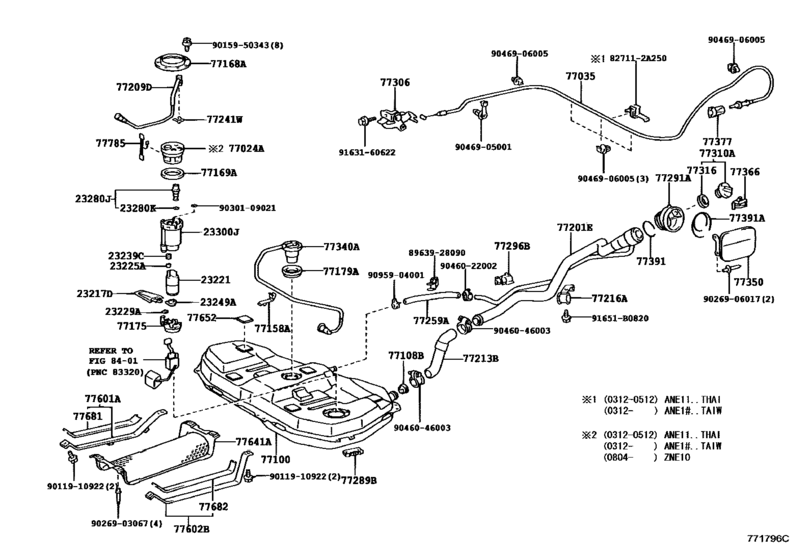

Fuel Tank & Tube ([12.2003 - ] FUEL TANK (0312- )) 67

#	OEM	Part name
23217	23217-0D070	Filter, Fuel Pump
23221	23221-28280	Pump Assy, Fuel (without filter)
23225	23225-21010	Spacer, Fuel Pump
23229	23229-16010	Clip(For Fuel Pump Filter)
23229	23219-03010	Clip(For Fuel Pump Filter)
23239	23239-21010	Seal, Fuel Pump Filter
23249	23249-74610	Rubber, Cushion(For Fuel Pump)
23280	23280-22010	Regulator Assy, Fuel Pressure
23280	90301-07020	Ring, O(For Fuel Pressure Regulator)
23300	23300-28040	Filter Assy, Fuel
77024	77024-68010	Plate Sub-Assy, Fuel Suction
77035	77035-68010	Cable Sub-Assy, Fuel Lid Lock Control
77100	77001-68011	Tank Assy, Fuel
77100	77001-68031	Tank Assy, Fuel
77100	77001-68012	Tank Assy, Fuel
77108	77108-12020	Valve Sub-Assy, Fuel Tank Filler Check
77158	77158-68010	Support, Tank Suction Tube
77168	77168-0D010	Plate, Fuel Tank Vent Tube Set
77168	77168-52010	Plate, Fuel Tank Vent Tube Set
77169	77169-33020	Gasket, Fuel Pump Bracket
77175	77175-52020	Support, Fuel Suction, No.2
77179	77179-33010	Gasket, Fuel Tank Evap/vent Tube
77201	77201-68010	Pipe Sub-Assy, Fuel Tank Filler
77201	77201-68030	Pipe Sub-Assy, Fuel Tank Filler
77209	77209-68010	Tube Sub-Assy, Fuel Tank Main
77213	77213-68010	Hose, Fuel Tank To Filler Pipe
77216	77216-68010	Support, Fuel Tank Filler Pipe, No.1
77241	77241-32060	Clip, Tube Joint
77259	77259-68010	Hose, Fuel(For Breather Tube)
77289	77289-68010	Clamp, Fuel Tube, No.3
77291	77291-68010	Shield, Fuel Tank Filler Pipe
77296	77296-68012	Support, Fuel Tube Protector, No.1
77306	77306-13020	Lever Sub-Assy, Fuel Lid Lock Open
77310	77310-48010	Cap Assy, Fuel Tank
77316	77316-16010	Gasket (For Fuel Tank Cap)
77340	77340-68010	Valve Assy, Fuel Cut Off W/tube
77350	77350-68010	Lid Assy, Fuel Filler Opening
77366	77360-21010	Spring, Fuel Filler Opening Lid Hinge
77377	77377-12050	Bracket, Fuel Lid Lock Control
77391	77391-12020	Ring, Fuel Inlet Box
77391	77391-63010	Ring, Fuel Inlet Box
77601	77601-68011	Band Sub-Assy, Fuel Tank, No.1
77602	77602-68010	Band Sub-Assy, Fuel Tank, No.1 Lh
77641	77641-68010	Protector, Fuel Tank, No.1
77652	77651-02060	Cushion, Fuel Tank, No.1
77652	77651-20090	Cushion, Fuel Tank, No.1
77681	77616-68010	Seat, Fuel Tank Band, Rh
77682	77616-68020	Seat, Fuel Tank Band, Rh
77785	77785-32010	Harness, Fuel Pump
91651	91651-B0820	Bolt, Radiator Side Support Plate
91651	90080-11347	New Genuine Part
827112	82711-2A250	Clamp (For Fuel Lid Lock Control Cable)
8963928090	89639-28090	Wire, Brake Control
9011910922	90119-10922	BOLT WWASHER
9011910922	90080-11654	New Genuine Part
9015950343	90159-50343	SCREW, W-WASHER
9026903067	90269-03067	RIVET
9026906017	90269-06017	RIVET
9030109021	90301-09021	GASKET
9046022002	90460-22002	CLAMP
9046022002	90460-22001	CLAMP
9046046003	90460-46003	Clamp (For Fuel Filler Pipe)
9046046003	90460-46005	Clamp (For Fuel Filler Pipe)
9046905001	90469-05001	CLAMP
9046906005	90469-06005	Clamp(For Hood Lock Control Cable)
9095904001	90959-04001	Clip, Fuel Hose
9163160622	91631-60622	Screw

OEM	Part name	Category
23217-0D070	Filter, Fuel Pump	Fuel Tank & Tube ([12.2003 - ] FUEL TANK (0312- ))
23219-03010	Clip(For Fuel Pump Filter)	Fuel Tank & Tube ([12.2003 - ] FUEL TANK (0312- ))
23221-28280	Pump Assy, Fuel (without filter)	Fuel Tank & Tube ([12.2003 - ] FUEL TANK (0312- ))
23225-21010	Spacer, Fuel Pump	Fuel Tank & Tube ([12.2003 - ] FUEL TANK (0312- ))
23229-16010	Clip(For Fuel Pump Filter)	Fuel Tank & Tube ([12.2003 - ] FUEL TANK (0312- ))
23239-21010	Seal, Fuel Pump Filter	Fuel Tank & Tube ([12.2003 - ] FUEL TANK (0312- ))
23249-74610	Rubber, Cushion(For Fuel Pump)	Fuel Tank & Tube ([12.2003 - ] FUEL TANK (0312- ))
23280-22010	Regulator Assy, Fuel Pressure	Fuel Tank & Tube ([12.2003 - ] FUEL TANK (0312- ))
23300-28040	Filter Assy, Fuel	Fuel Tank & Tube ([12.2003 - ] FUEL TANK (0312- ))
77001-68011	Tank Assy, Fuel	Fuel Tank & Tube ([12.2003 - ] FUEL TANK (0312- ))
77001-68012	Tank Assy, Fuel	Fuel Tank & Tube ([12.2003 - ] FUEL TANK (0312- ))
77001-68031	Tank Assy, Fuel	Fuel Tank & Tube ([12.2003 - ] FUEL TANK (0312- ))
77024-68010	Plate Sub-Assy, Fuel Suction	Fuel Tank & Tube ([12.2003 - ] FUEL TANK (0312- ))
77035-68010	Cable Sub-Assy, Fuel Lid Lock Control	Fuel Tank & Tube ([12.2003 - ] FUEL TANK (0312- ))
77108-12020	Valve Sub-Assy, Fuel Tank Filler Check	Fuel Tank & Tube ([12.2003 - ] FUEL TANK (0312- ))
77158-68010	Support, Tank Suction Tube	Fuel Tank & Tube ([12.2003 - ] FUEL TANK (0312- ))
77168-0D010	Plate, Fuel Tank Vent Tube Set	Fuel Tank & Tube ([12.2003 - ] FUEL TANK (0312- ))
77168-52010	Plate, Fuel Tank Vent Tube Set	Fuel Tank & Tube ([12.2003 - ] FUEL TANK (0312- ))
77169-33020	Gasket, Fuel Pump Bracket	Fuel Tank & Tube ([12.2003 - ] FUEL TANK (0312- ))
77175-52020	Support, Fuel Suction, No.2	Fuel Tank & Tube ([12.2003 - ] FUEL TANK (0312- ))
77179-33010	Gasket, Fuel Tank Evap/vent Tube	Fuel Tank & Tube ([12.2003 - ] FUEL TANK (0312- ))
77201-68010	Pipe Sub-Assy, Fuel Tank Filler	Fuel Tank & Tube ([12.2003 - ] FUEL TANK (0312- ))
77201-68030	Pipe Sub-Assy, Fuel Tank Filler	Fuel Tank & Tube ([12.2003 - ] FUEL TANK (0312- ))
77209-68010	Tube Sub-Assy, Fuel Tank Main	Fuel Tank & Tube ([12.2003 - ] FUEL TANK (0312- ))
77213-68010	Hose, Fuel Tank To Filler Pipe	Fuel Tank & Tube ([12.2003 - ] FUEL TANK (0312- ))
77216-68010	Support, Fuel Tank Filler Pipe, No.1	Fuel Tank & Tube ([12.2003 - ] FUEL TANK (0312- ))
77241-32060	Clip, Tube Joint	Fuel Tank & Tube ([12.2003 - ] FUEL TANK (0312- ))
77259-68010	Hose, Fuel(For Breather Tube)	Fuel Tank & Tube ([12.2003 - ] FUEL TANK (0312- ))
77289-68010	Clamp, Fuel Tube, No.3	Fuel Tank & Tube ([12.2003 - ] FUEL TANK (0312- ))
77291-68010	Shield, Fuel Tank Filler Pipe	Fuel Tank & Tube ([12.2003 - ] FUEL TANK (0312- ))
77296-68012	Support, Fuel Tube Protector, No.1	Fuel Tank & Tube ([12.2003 - ] FUEL TANK (0312- ))
77306-13020	Lever Sub-Assy, Fuel Lid Lock Open	Fuel Tank & Tube ([12.2003 - ] FUEL TANK (0312- ))
77310-48010	Cap Assy, Fuel Tank	Fuel Tank & Tube ([12.2003 - ] FUEL TANK (0312- ))
77316-16010	Gasket (For Fuel Tank Cap)	Fuel Tank & Tube ([12.2003 - ] FUEL TANK (0312- ))
77340-68010	Valve Assy, Fuel Cut Off W/tube	Fuel Tank & Tube ([12.2003 - ] FUEL TANK (0312- ))
77350-68010	Lid Assy, Fuel Filler Opening	Fuel Tank & Tube ([12.2003 - ] FUEL TANK (0312- ))
77360-21010	Spring, Fuel Filler Opening Lid Hinge	Fuel Tank & Tube ([12.2003 - ] FUEL TANK (0312- ))
77377-12050	Bracket, Fuel Lid Lock Control	Fuel Tank & Tube ([12.2003 - ] FUEL TANK (0312- ))
77391-12020	Ring, Fuel Inlet Box	Fuel Tank & Tube ([12.2003 - ] FUEL TANK (0312- ))
77391-63010	Ring, Fuel Inlet Box	Fuel Tank & Tube ([12.2003 - ] FUEL TANK (0312- ))
77601-68011	Band Sub-Assy, Fuel Tank, No.1	Fuel Tank & Tube ([12.2003 - ] FUEL TANK (0312- ))
77602-68010	Band Sub-Assy, Fuel Tank, No.1 Lh	Fuel Tank & Tube ([12.2003 - ] FUEL TANK (0312- ))
77616-68010	Seat, Fuel Tank Band, Rh	Fuel Tank & Tube ([12.2003 - ] FUEL TANK (0312- ))
77616-68020	Seat, Fuel Tank Band, Rh	Fuel Tank & Tube ([12.2003 - ] FUEL TANK (0312- ))
77641-68010	Protector, Fuel Tank, No.1	Fuel Tank & Tube ([12.2003 - ] FUEL TANK (0312- ))
77651-02060	Cushion, Fuel Tank, No.1	Fuel Tank & Tube ([12.2003 - ] FUEL TANK (0312- ))
77651-20090	Cushion, Fuel Tank, No.1	Fuel Tank & Tube ([12.2003 - ] FUEL TANK (0312- ))
77785-32010	Harness, Fuel Pump	Fuel Tank & Tube ([12.2003 - ] FUEL TANK (0312- ))
82711-2A250	Clamp (For Fuel Lid Lock Control Cable)	Fuel Tank & Tube ([12.2003 - ] FUEL TANK (0312- ))
89639-28090	Wire, Brake Control	Fuel Tank & Tube ([12.2003 - ] FUEL TANK (0312- ))
90080-11347	New Genuine Part	Fuel Tank & Tube ([12.2003 - ] FUEL TANK (0312- ))
90080-11654	New Genuine Part	Fuel Tank & Tube ([12.2003 - ] FUEL TANK (0312- ))
90119-10922	BOLT WWASHER	Fuel Tank & Tube ([12.2003 - ] FUEL TANK (0312- ))
90159-50343	SCREW, W-WASHER	Fuel Tank & Tube ([12.2003 - ] FUEL TANK (0312- ))
90269-03067	RIVET	Fuel Tank & Tube ([12.2003 - ] FUEL TANK (0312- ))
90269-06017	RIVET	Fuel Tank & Tube ([12.2003 - ] FUEL TANK (0312- ))
90301-07020	Ring, O(For Fuel Pressure Regulator)	Fuel Tank & Tube ([12.2003 - ] FUEL TANK (0312- ))
90301-09021	GASKET	Fuel Tank & Tube ([12.2003 - ] FUEL TANK (0312- ))
90460-22001	CLAMP	Fuel Tank & Tube ([12.2003 - ] FUEL TANK (0312- ))
90460-22002	CLAMP	Fuel Tank & Tube ([12.2003 - ] FUEL TANK (0312- ))
90460-46003	Clamp (For Fuel Filler Pipe)	Fuel Tank & Tube ([12.2003 - ] FUEL TANK (0312- ))
90460-46005	Clamp (For Fuel Filler Pipe)	Fuel Tank & Tube ([12.2003 - ] FUEL TANK (0312- ))
90469-05001	CLAMP	Fuel Tank & Tube ([12.2003 - ] FUEL TANK (0312- ))
90469-06005	Clamp(For Hood Lock Control Cable)	Fuel Tank & Tube ([12.2003 - ] FUEL TANK (0312- ))
90959-04001	Clip, Fuel Hose	Fuel Tank & Tube ([12.2003 - ] FUEL TANK (0312- ))
91631-60622	Screw	Fuel Tank & Tube ([12.2003 - ] FUEL TANK (0312- ))
91651-B0820	Bolt, Radiator Side Support Plate	Fuel Tank & Tube ([12.2003 - ] FUEL TANK (0312- ))
