Search › Model › ZNE10
ZNE10

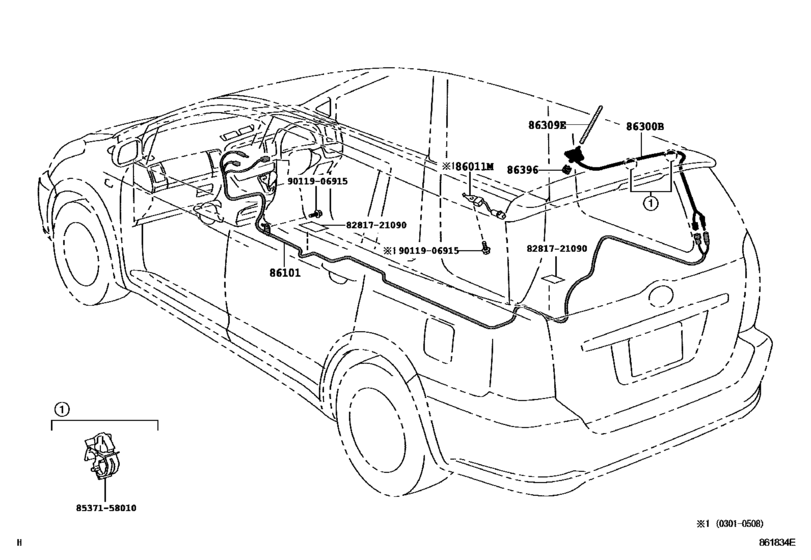

Antenna ([01.2003 - ] (0301- )) 11
| # | OEM | Part name |
|---|---|---|
| 86011 | 90980-04134 | Condenser, Radio Setting |
| 86101 | 86101-68010 | Cord Sub-Assy, Antenna |
| 86101 | 86101-68020 | Cord Sub-Assy, Antenna |
| 86101 | 86101-68060 | Cord Sub-Assy, Antenna |
| 86101 | 86101-68070 | Cord Sub-Assy, Antenna |
| 86300 | 86300-68020 | Antenna Assy, Amplifier, No.1 |
| 86309 | 86309-20310 | Pole Sub-Assy, Antenna |
| 86396 | 86396-20040 | Nut, Antenna |
| 8281721090 | 82817-21090 | Protector, Wiring Harness, No.7 |
| 8537158010 | 85371-58010 | Hose, Windshield Washer (from Motor To Joint) |
| 9011906915 | 90119-06915 | BOLT W-WASHER |
| OEM | Part name | Category |
|---|---|---|
| 82817-21090 | Protector, Wiring Harness, No.7 | Antenna ([01.2003 - ] (0301- )) |
| 85371-58010 | Hose, Windshield Washer (from Motor To Joint) | Antenna ([01.2003 - ] (0301- )) |
| 86101-68010 | Cord Sub-Assy, Antenna | Antenna ([01.2003 - ] (0301- )) |
| 86101-68020 | Cord Sub-Assy, Antenna | Antenna ([01.2003 - ] (0301- )) |
| 86101-68060 | Cord Sub-Assy, Antenna | Antenna ([01.2003 - ] (0301- )) |
| 86101-68070 | Cord Sub-Assy, Antenna | Antenna ([01.2003 - ] (0301- )) |
| 86300-68020 | Antenna Assy, Amplifier, No.1 | Antenna ([01.2003 - ] (0301- )) |
| 86309-20310 | Pole Sub-Assy, Antenna | Antenna ([01.2003 - ] (0301- )) |
| 86396-20040 | Nut, Antenna | Antenna ([01.2003 - ] (0301- )) |
| 90119-06915 | BOLT W-WASHER | Antenna ([01.2003 - ] (0301- )) |
| 90980-04134 | Condenser, Radio Setting | Antenna ([01.2003 - ] (0301- )) |
