Search › Model › ZGR22

ZGR22

Toyota E-Z · 2011 · 2,960 parts · 177 categories

← Back to categories

2,960 items

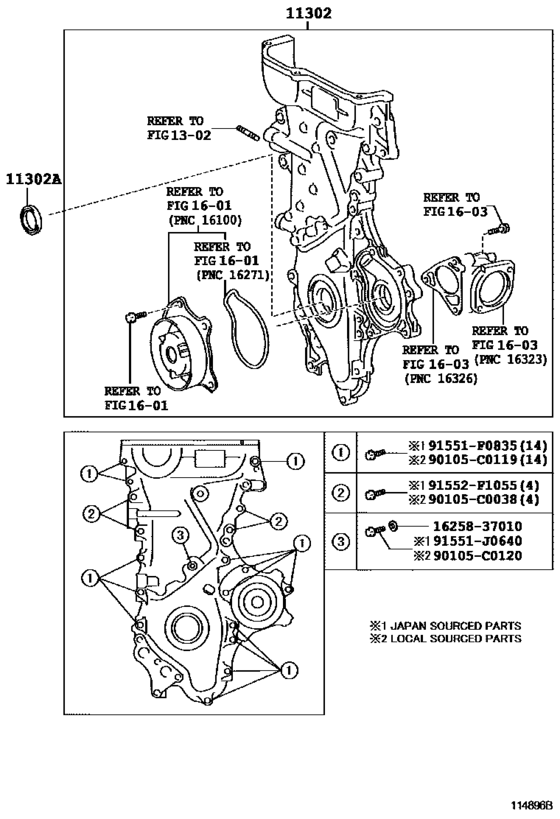

Timing Gear Cover & Rear End Plate ([06.2011 - ] (1106- )) 11

#	OEM	Part name
11302	11310-37031	Cover Sub-Assy, Timing Chain Or Belt
11302	11310-37032	Cover Sub-Assy, Timing Chain Or Belt
11302	90311-38089	Seal, Oil(For Timing Gear Case Or Timing Chain Case)
11302	90311-38096	Seal, Oil(For Timing Chain Or Belt Cover)
90105	90105-C0038	New Genuine Part
90105	90105-C0119	New Genuine Part
90105	90105-C0120	New Genuine Part
91551	91551-F0835	New Genuine Part
91551	91551-J0640	New Genuine Part
91552	91552-F1055	BOLT FLANGE
1625837010	16258-37010	Washer, Seal(For Cylinder Head Cover)

OEM	Part name	Category
11310-37031	Cover Sub-Assy, Timing Chain Or Belt	Timing Gear Cover & Rear End Plate ([06.2011 - ] (1106- ))
11310-37032	Cover Sub-Assy, Timing Chain Or Belt	Timing Gear Cover & Rear End Plate ([06.2011 - ] (1106- ))
16258-37010	Washer, Seal(For Cylinder Head Cover)	Timing Gear Cover & Rear End Plate ([06.2011 - ] (1106- ))
90105-C0038	New Genuine Part	Timing Gear Cover & Rear End Plate ([06.2011 - ] (1106- ))
90105-C0119	New Genuine Part	Timing Gear Cover & Rear End Plate ([06.2011 - ] (1106- ))
90105-C0120	New Genuine Part	Timing Gear Cover & Rear End Plate ([06.2011 - ] (1106- ))
90311-38089	Seal, Oil(For Timing Gear Case Or Timing Chain Case)	Timing Gear Cover & Rear End Plate ([06.2011 - ] (1106- ))
90311-38096	Seal, Oil(For Timing Chain Or Belt Cover)	Timing Gear Cover & Rear End Plate ([06.2011 - ] (1106- ))
91551-F0835	New Genuine Part	Timing Gear Cover & Rear End Plate ([06.2011 - ] (1106- ))
91551-J0640	New Genuine Part	Timing Gear Cover & Rear End Plate ([06.2011 - ] (1106- ))
91552-F1055	BOLT FLANGE	Timing Gear Cover & Rear End Plate ([06.2011 - ] (1106- ))

Source: Public OEM parts-catalog data
Variants: 2 / 2
Category: 177
Collected: 2026-08-03
