ZGR22

Toyota E-Z · 2011 · 2,960 parts · 177 categories

2,960 items

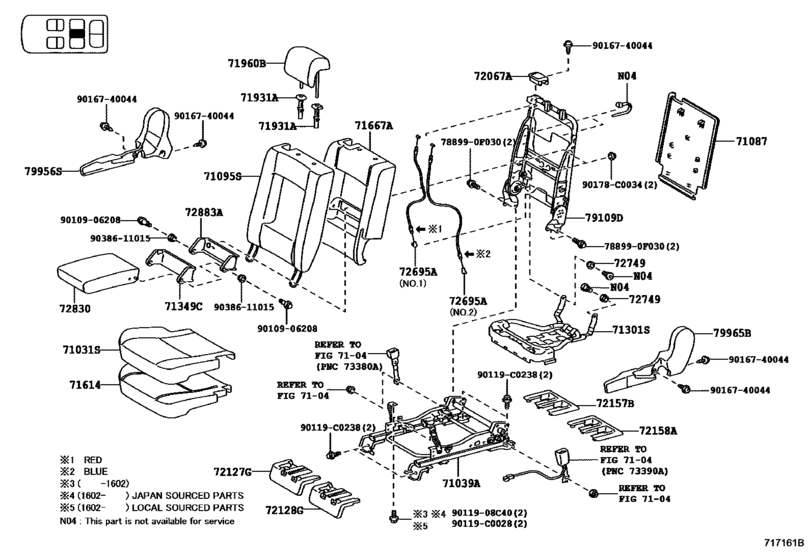

Rear Seat & Seat Track ([06.2011 - ] REAR NO.1 SEAT(CENTER) (1106- )) 40

#	OEM	Part name
71031	71097-0F100-E1	Cover Sub-Assy, Center Seat Cushion
71031	71097-0F090-E0	Cover Sub-Assy, Center Seat Cushion
71031	71097-0F091-E1	Cover Sub-Assy, Center Seat Cushion
71039	71039-0F020	Leg Sub-Assy, Center Seat
71087	71087-0F020-E1	Board Sub-Assy, Rear Seat Back
71095	71095-0F100-E1	Cover Sub-Assy, Center Seat Back
71095	71095-0F090-E0	Cover Sub-Assy, Center Seat Back
71095	71095-0F091-E1	Cover Sub-Assy, Center Seat Back
71301	71031-0F040	Frame Sub-Assy, Center Seat Cushion
71349	71349-0F030-E0	Cover, Rear Seat Back Hinge
71614	71614-0F030	Pad, Rear Seat Cushion, Center
71667	71667-0F020	Pad, Rear Seat Back, Center A
71931	71930-44020-E0	Support, Front Seat Headrest
71931	71931-47010-E4	Support, Front Seat Headrest
71960	71940-0F050-E1	Headrest Assy, Rear Seat
71960	71940-0F110-E0	Headrest Assy, Rear Seat
71960	71940-0F040-E0	Headrest Assy, Rear Seat
71960	71940-0F041-E0	Headrest Assy, Rear Seat
72067	72067-0F100-E0	Lever, Rear Back Lock Control, Center
72127	72127-0F030-E0	Cover, Seat Track Bracket, Inner Front Rh
72128	72128-0F020-E0	Cover, Seat Track Bracket, Inner Front Lh
72157	72157-0F060-E0	Cover, Rear Seat Track Bracket, Inner Rh
72695	72695-0F030	Cable, Rear Seat Lock Control
72695	72695-0F040	Cable, Rear Seat Lock Control
72749	72749-48010	Spacer, Rear Seat Reclining
72830	72830-0F050-E0	Armrest Assy, Rear Seat, Center
72830	72830-0F040-E0	Armrest Assy, Rear Seat, Center
72830	72830-0F041-E1	Armrest Assy, Rear Seat, Center
72883	72883-0F020	Bracket, Rear Seat Center Armrest, No.1
79109	79109-0F020	Frame Sub-Assy, Rear No.1 Seat Back, Center
79956	79956-0F080-E0	Cover, Rear Seat Leg Side
79965	79965-0F080-E0	Cover, Rear Seat Leg Side, No.2
90119	90119-C0028	New Genuine Part
90119	90119-C0238	New Genuine Part
90178	90178-C0034	Nut (For Transmission Control Cable)
788990	78899-0F030	Bolt, Front Seat
9011908	90119-08C40	New Genuine Part
9010906208	90109-06208	New Genuine Part
9016740044	90167-40044	BOLT
9038611015	90386-11015	Bush(For Rear Seat Center Armrest)

OEM	Part name	Category
71031-0F040	Frame Sub-Assy, Center Seat Cushion	Rear Seat & Seat Track ([06.2011 - ] REAR NO.1 SEAT(CENTER) (1106- ))
71039-0F020	Leg Sub-Assy, Center Seat	Rear Seat & Seat Track ([06.2011 - ] REAR NO.1 SEAT(CENTER) (1106- ))
71087-0F020-E1	Board Sub-Assy, Rear Seat Back	Rear Seat & Seat Track ([06.2011 - ] REAR NO.1 SEAT(CENTER) (1106- ))
71095-0F090-E0	Cover Sub-Assy, Center Seat Back	Rear Seat & Seat Track ([06.2011 - ] REAR NO.1 SEAT(CENTER) (1106- ))
71095-0F091-E1	Cover Sub-Assy, Center Seat Back	Rear Seat & Seat Track ([06.2011 - ] REAR NO.1 SEAT(CENTER) (1106- ))
71095-0F100-E1	Cover Sub-Assy, Center Seat Back	Rear Seat & Seat Track ([06.2011 - ] REAR NO.1 SEAT(CENTER) (1106- ))
71097-0F090-E0	Cover Sub-Assy, Center Seat Cushion	Rear Seat & Seat Track ([06.2011 - ] REAR NO.1 SEAT(CENTER) (1106- ))
71097-0F091-E1	Cover Sub-Assy, Center Seat Cushion	Rear Seat & Seat Track ([06.2011 - ] REAR NO.1 SEAT(CENTER) (1106- ))
71097-0F100-E1	Cover Sub-Assy, Center Seat Cushion	Rear Seat & Seat Track ([06.2011 - ] REAR NO.1 SEAT(CENTER) (1106- ))
71349-0F030-E0	Cover, Rear Seat Back Hinge	Rear Seat & Seat Track ([06.2011 - ] REAR NO.1 SEAT(CENTER) (1106- ))
71614-0F030	Pad, Rear Seat Cushion, Center	Rear Seat & Seat Track ([06.2011 - ] REAR NO.1 SEAT(CENTER) (1106- ))
71667-0F020	Pad, Rear Seat Back, Center A	Rear Seat & Seat Track ([06.2011 - ] REAR NO.1 SEAT(CENTER) (1106- ))
71930-44020-E0	Support, Front Seat Headrest	Rear Seat & Seat Track ([06.2011 - ] REAR NO.1 SEAT(CENTER) (1106- ))
71931-47010-E4	Support, Front Seat Headrest	Rear Seat & Seat Track ([06.2011 - ] REAR NO.1 SEAT(CENTER) (1106- ))
71940-0F040-E0	Headrest Assy, Rear Seat	Rear Seat & Seat Track ([06.2011 - ] REAR NO.1 SEAT(CENTER) (1106- ))
71940-0F041-E0	Headrest Assy, Rear Seat	Rear Seat & Seat Track ([06.2011 - ] REAR NO.1 SEAT(CENTER) (1106- ))
71940-0F050-E1	Headrest Assy, Rear Seat	Rear Seat & Seat Track ([06.2011 - ] REAR NO.1 SEAT(CENTER) (1106- ))
71940-0F110-E0	Headrest Assy, Rear Seat	Rear Seat & Seat Track ([06.2011 - ] REAR NO.1 SEAT(CENTER) (1106- ))
72067-0F100-E0	Lever, Rear Back Lock Control, Center	Rear Seat & Seat Track ([06.2011 - ] REAR NO.1 SEAT(CENTER) (1106- ))
72127-0F030-E0	Cover, Seat Track Bracket, Inner Front Rh	Rear Seat & Seat Track ([06.2011 - ] REAR NO.1 SEAT(CENTER) (1106- ))
72128-0F020-E0	Cover, Seat Track Bracket, Inner Front Lh	Rear Seat & Seat Track ([06.2011 - ] REAR NO.1 SEAT(CENTER) (1106- ))
72157-0F060-E0	Cover, Rear Seat Track Bracket, Inner Rh	Rear Seat & Seat Track ([06.2011 - ] REAR NO.1 SEAT(CENTER) (1106- ))
72695-0F030	Cable, Rear Seat Lock Control	Rear Seat & Seat Track ([06.2011 - ] REAR NO.1 SEAT(CENTER) (1106- ))
72695-0F040	Cable, Rear Seat Lock Control	Rear Seat & Seat Track ([06.2011 - ] REAR NO.1 SEAT(CENTER) (1106- ))
72749-48010	Spacer, Rear Seat Reclining	Rear Seat & Seat Track ([06.2011 - ] REAR NO.1 SEAT(CENTER) (1106- ))
72830-0F040-E0	Armrest Assy, Rear Seat, Center	Rear Seat & Seat Track ([06.2011 - ] REAR NO.1 SEAT(CENTER) (1106- ))
72830-0F041-E1	Armrest Assy, Rear Seat, Center	Rear Seat & Seat Track ([06.2011 - ] REAR NO.1 SEAT(CENTER) (1106- ))
72830-0F050-E0	Armrest Assy, Rear Seat, Center	Rear Seat & Seat Track ([06.2011 - ] REAR NO.1 SEAT(CENTER) (1106- ))
72883-0F020	Bracket, Rear Seat Center Armrest, No.1	Rear Seat & Seat Track ([06.2011 - ] REAR NO.1 SEAT(CENTER) (1106- ))
78899-0F030	Bolt, Front Seat	Rear Seat & Seat Track ([06.2011 - ] REAR NO.1 SEAT(CENTER) (1106- ))
79109-0F020	Frame Sub-Assy, Rear No.1 Seat Back, Center	Rear Seat & Seat Track ([06.2011 - ] REAR NO.1 SEAT(CENTER) (1106- ))
79956-0F080-E0	Cover, Rear Seat Leg Side	Rear Seat & Seat Track ([06.2011 - ] REAR NO.1 SEAT(CENTER) (1106- ))
79965-0F080-E0	Cover, Rear Seat Leg Side, No.2	Rear Seat & Seat Track ([06.2011 - ] REAR NO.1 SEAT(CENTER) (1106- ))
90109-06208	New Genuine Part	Rear Seat & Seat Track ([06.2011 - ] REAR NO.1 SEAT(CENTER) (1106- ))
90119-08C40	New Genuine Part	Rear Seat & Seat Track ([06.2011 - ] REAR NO.1 SEAT(CENTER) (1106- ))
90119-C0028	New Genuine Part	Rear Seat & Seat Track ([06.2011 - ] REAR NO.1 SEAT(CENTER) (1106- ))
90119-C0238	New Genuine Part	Rear Seat & Seat Track ([06.2011 - ] REAR NO.1 SEAT(CENTER) (1106- ))
90167-40044	BOLT	Rear Seat & Seat Track ([06.2011 - ] REAR NO.1 SEAT(CENTER) (1106- ))
90178-C0034	Nut (For Transmission Control Cable)	Rear Seat & Seat Track ([06.2011 - ] REAR NO.1 SEAT(CENTER) (1106- ))
90386-11015	Bush(For Rear Seat Center Armrest)	Rear Seat & Seat Track ([06.2011 - ] REAR NO.1 SEAT(CENTER) (1106- ))
