ZGR22

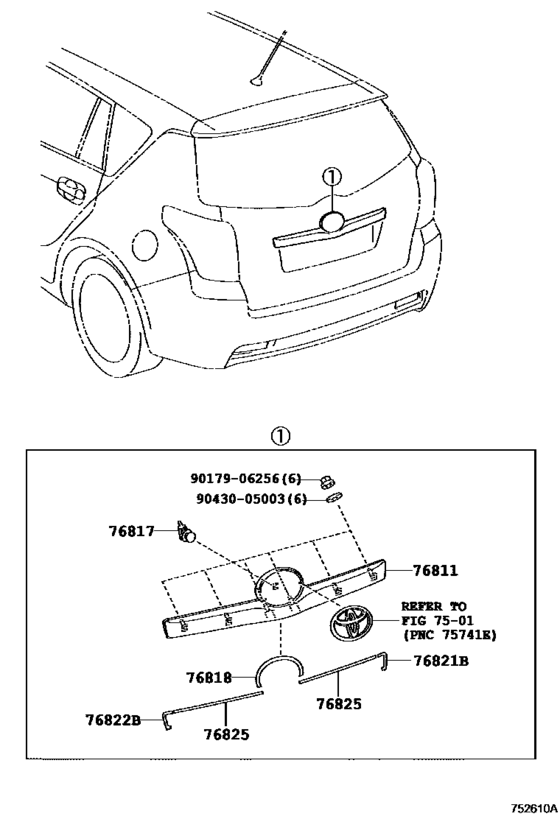

Rear Moulding ([06.2011 - 10.2011] (1106-1110)) 9
| # | OEM | Part name |
|---|---|---|
| 76811 | 76811-0F070 | Garnish, Back Door, Outside |
| 76811 | 76811-0F080 | Garnish, Back Door, Outside |
| 76817 | 76817-0D010 | Clip, Back Door Outside Garnish |
| 76818 | 76818-0F030 | Pad, Back Door Outside Garnish |
| 76821 | 76821-0F020 | Protector, Back Door Garnish Side, Rh |
| 76822 | 76822-0F020 | Protector, Back Door Garnish Side, Lh |
| 76825 | 76825-0F040 | Protector, Back Door Outside Garnish |
| 9017906256 | 90179-06256 | NUT |
| 9043005003 | 90430-05003 | GASKET |
| OEM | Part name | Category |
|---|---|---|
| 76811-0F070 | Garnish, Back Door, Outside | Rear Moulding ([06.2011 - 10.2011] (1106-1110)) |
| 76811-0F080 | Garnish, Back Door, Outside | Rear Moulding ([06.2011 - 10.2011] (1106-1110)) |
| 76817-0D010 | Clip, Back Door Outside Garnish | Rear Moulding ([06.2011 - 10.2011] (1106-1110)) |
| 76818-0F030 | Pad, Back Door Outside Garnish | Rear Moulding ([06.2011 - 10.2011] (1106-1110)) |
| 76821-0F020 | Protector, Back Door Garnish Side, Rh | Rear Moulding ([06.2011 - 10.2011] (1106-1110)) |
| 76822-0F020 | Protector, Back Door Garnish Side, Lh | Rear Moulding ([06.2011 - 10.2011] (1106-1110)) |
| 76825-0F040 | Protector, Back Door Outside Garnish | Rear Moulding ([06.2011 - 10.2011] (1106-1110)) |
| 90179-06256 | NUT | Rear Moulding ([06.2011 - 10.2011] (1106-1110)) |
| 90430-05003 | GASKET | Rear Moulding ([06.2011 - 10.2011] (1106-1110)) |
