ZGR22

Toyota E-Z · 2011 · 2,960 parts · 177 categories

2,960 items

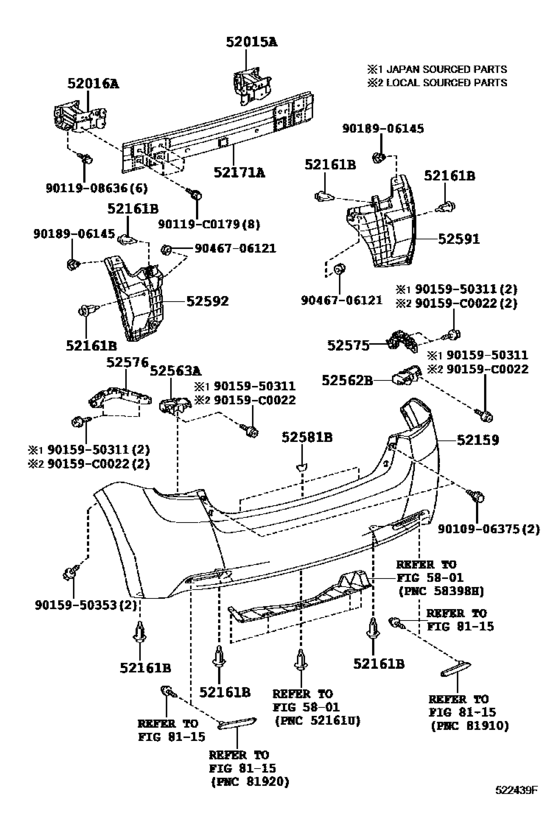

Rear Bumper & Bumper Stay ([06.2011 - ] (1106- )) 24

#	OEM	Part name
52015	52015-0F030	Arm Sub-Assy, Rear Bumper, Rh
52016	52016-0F030	Arm Sub-Assy, Rear Bumper, Lh
52159	52159-0F910	Cover, Rear Bumper
52161	52161-02040	Piece, Rear Bumper
52161	52161-16010	Clip
52161	52161-0K040	Clip
52161	52161-02020	Clip
52171	52023-0F020	Reinforcement, Rear Bumper, No.1
52562	52562-0F030	Retainer, Rear Bumper, Upper Rh
52563	52563-0F030	Retainer, Rear Bumper, Upper Lh
52575	52575-0F030	Retainer, Rear Bumper Side, Rh
52576	52576-0F030	Retainer, Rear Bumper Side, Lh
52581	52581-0F010	Protector, Rear Bumper
52591	52591-0F020	Seal, Rear Bumper Side, Rh
52592	52592-0F020	Seal, Rear Bumper Side, Lh
90119	90119-C0179	New Genuine Part
90159	90159-C0022	New Genuine Part
9010906375	90109-06375	BOLT
9011908636	90119-08636	BOLT
9015950311	90159-50311	SCREW
9015950311	90159-A0034	SCREW WWASHER
9015950353	90159-50353	SCREW, W-WASHER
9018906145	90189-06145	GROMMET SCREW
9046706121	90467-06121	Clip, Rear Bumper Side

OEM	Part name	Category
52015-0F030	Arm Sub-Assy, Rear Bumper, Rh	Rear Bumper & Bumper Stay ([06.2011 - ] (1106- ))
52016-0F030	Arm Sub-Assy, Rear Bumper, Lh	Rear Bumper & Bumper Stay ([06.2011 - ] (1106- ))
52023-0F020	Reinforcement, Rear Bumper, No.1	Rear Bumper & Bumper Stay ([06.2011 - ] (1106- ))
52159-0F910	Cover, Rear Bumper	Rear Bumper & Bumper Stay ([06.2011 - ] (1106- ))
52161-02020	Clip	Rear Bumper & Bumper Stay ([06.2011 - ] (1106- ))
52161-02040	Piece, Rear Bumper	Rear Bumper & Bumper Stay ([06.2011 - ] (1106- ))
52161-0K040	Clip	Rear Bumper & Bumper Stay ([06.2011 - ] (1106- ))
52161-16010	Clip	Rear Bumper & Bumper Stay ([06.2011 - ] (1106- ))
52562-0F030	Retainer, Rear Bumper, Upper Rh	Rear Bumper & Bumper Stay ([06.2011 - ] (1106- ))
52563-0F030	Retainer, Rear Bumper, Upper Lh	Rear Bumper & Bumper Stay ([06.2011 - ] (1106- ))
52575-0F030	Retainer, Rear Bumper Side, Rh	Rear Bumper & Bumper Stay ([06.2011 - ] (1106- ))
52576-0F030	Retainer, Rear Bumper Side, Lh	Rear Bumper & Bumper Stay ([06.2011 - ] (1106- ))
52581-0F010	Protector, Rear Bumper	Rear Bumper & Bumper Stay ([06.2011 - ] (1106- ))
52591-0F020	Seal, Rear Bumper Side, Rh	Rear Bumper & Bumper Stay ([06.2011 - ] (1106- ))
52592-0F020	Seal, Rear Bumper Side, Lh	Rear Bumper & Bumper Stay ([06.2011 - ] (1106- ))
90109-06375	BOLT	Rear Bumper & Bumper Stay ([06.2011 - ] (1106- ))
90119-08636	BOLT	Rear Bumper & Bumper Stay ([06.2011 - ] (1106- ))
90119-C0179	New Genuine Part	Rear Bumper & Bumper Stay ([06.2011 - ] (1106- ))
90159-50311	SCREW	Rear Bumper & Bumper Stay ([06.2011 - ] (1106- ))
90159-50353	SCREW, W-WASHER	Rear Bumper & Bumper Stay ([06.2011 - ] (1106- ))
90159-A0034	SCREW WWASHER	Rear Bumper & Bumper Stay ([06.2011 - ] (1106- ))
90159-C0022	New Genuine Part	Rear Bumper & Bumper Stay ([06.2011 - ] (1106- ))
90189-06145	GROMMET SCREW	Rear Bumper & Bumper Stay ([06.2011 - ] (1106- ))
90467-06121	Clip, Rear Bumper Side	Rear Bumper & Bumper Stay ([06.2011 - ] (1106- ))
