Search › Model › ZGR22

ZGR22

Toyota E-Z · 2011 · 2,960 parts · 177 categories

2,960 items

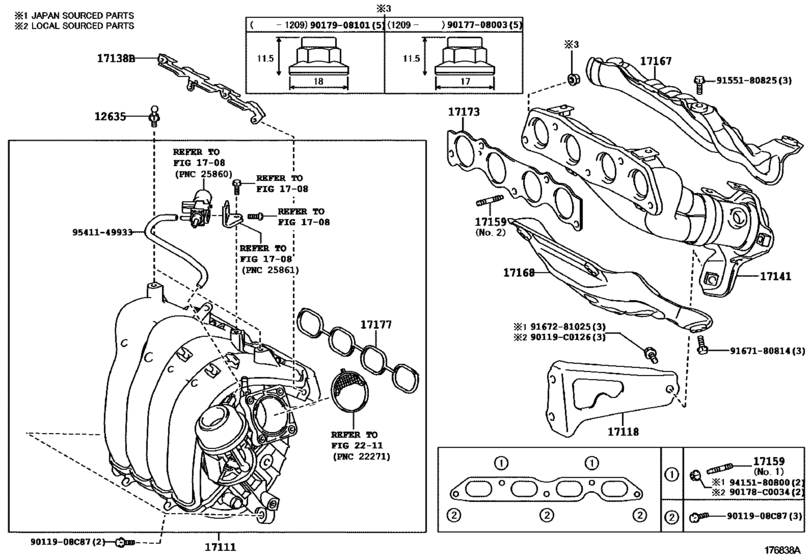

Manifold ([06.2011 - 09.2013] (1106-1309)3ZRFE) 22

#	OEM	Part name
12635	90109-06385	Bolt , V-Bank Cover, No.1
17111	17120-37070	Manifold, Intake
17118	17118-37050	Stay, Manifold
17138	17138-37010	Stay, Intake Manifold
17141	17141-37140	Manifold, Exhaust
17159	90126-08026	Bolt, Stud(For Intake Manifold To Cylinder Head)
17159	90126-08052	Bolt, Stud(For Oil Pan)
17167	17167-37050	Insulator, Exhaust Manifold Heat, No.1
17168	17168-37070	Insulator, Exhaust Manifold Heat, No.2
17173	17173-37010	Gasket, Exhaust Manifold To Head
17177	17177-37030	Gasket, Intake Manifold To Head, No.1
90119	90119-C0126	New Genuine Part
90178	90178-C0034	Nut (For Transmission Control Cable)
9011908	90119-08C87	New Genuine Part
9017708003	90177-08003	NUT LOCK
9017908101	90179-08101	NUT
9155180825	91551-80825	Bolt(For Cylinder Head Set Sub)
9167180814	91671-80814	BOLT FLANGE WWASER
9167180814	90119-A0165	New Genuine Part
9167281025	91672-81025	Bolt, Center Support Bearing Bracket
9415180800	94151-80800	Nut (For Transmission Control Cable)
9541149933	95411-49933	Hose, Vacuum, No.1 (For Front Drive Shift)

OEM	Part name	Category
17118-37050	Stay, Manifold	Manifold ([06.2011 - 09.2013] (1106-1309)3ZRFE)
17120-37070	Manifold, Intake	Manifold ([06.2011 - 09.2013] (1106-1309)3ZRFE)
17138-37010	Stay, Intake Manifold	Manifold ([06.2011 - 09.2013] (1106-1309)3ZRFE)
17141-37140	Manifold, Exhaust	Manifold ([06.2011 - 09.2013] (1106-1309)3ZRFE)
17167-37050	Insulator, Exhaust Manifold Heat, No.1	Manifold ([06.2011 - 09.2013] (1106-1309)3ZRFE)
17168-37070	Insulator, Exhaust Manifold Heat, No.2	Manifold ([06.2011 - 09.2013] (1106-1309)3ZRFE)
17173-37010	Gasket, Exhaust Manifold To Head	Manifold ([06.2011 - 09.2013] (1106-1309)3ZRFE)
17177-37030	Gasket, Intake Manifold To Head, No.1	Manifold ([06.2011 - 09.2013] (1106-1309)3ZRFE)
90109-06385	Bolt , V-Bank Cover, No.1	Manifold ([06.2011 - 09.2013] (1106-1309)3ZRFE)
90119-08C87	New Genuine Part	Manifold ([06.2011 - 09.2013] (1106-1309)3ZRFE)
90119-A0165	New Genuine Part	Manifold ([06.2011 - 09.2013] (1106-1309)3ZRFE)
90119-C0126	New Genuine Part	Manifold ([06.2011 - 09.2013] (1106-1309)3ZRFE)
90126-08026	Bolt, Stud(For Intake Manifold To Cylinder Head)	Manifold ([06.2011 - 09.2013] (1106-1309)3ZRFE)
90126-08052	Bolt, Stud(For Oil Pan)	Manifold ([06.2011 - 09.2013] (1106-1309)3ZRFE)
90177-08003	NUT LOCK	Manifold ([06.2011 - 09.2013] (1106-1309)3ZRFE)
90178-C0034	Nut (For Transmission Control Cable)	Manifold ([06.2011 - 09.2013] (1106-1309)3ZRFE)
90179-08101	NUT	Manifold ([06.2011 - 09.2013] (1106-1309)3ZRFE)
91551-80825	Bolt(For Cylinder Head Set Sub)	Manifold ([06.2011 - 09.2013] (1106-1309)3ZRFE)
91671-80814	BOLT FLANGE WWASER	Manifold ([06.2011 - 09.2013] (1106-1309)3ZRFE)
91672-81025	Bolt, Center Support Bearing Bracket	Manifold ([06.2011 - 09.2013] (1106-1309)3ZRFE)
94151-80800	Nut (For Transmission Control Cable)	Manifold ([06.2011 - 09.2013] (1106-1309)3ZRFE)
95411-49933	Hose, Vacuum, No.1 (For Front Drive Shift)	Manifold ([06.2011 - 09.2013] (1106-1309)3ZRFE)

Source: Public OEM parts-catalog data
Variants: 2 / 2
Category: 177
Collected: 2026-08-03
