Search › Model › ZGR22

ZGR22

Toyota E-Z · 2011 · 2,960 parts · 177 categories
ZGR22 ×

← Back to categories

2,960 items

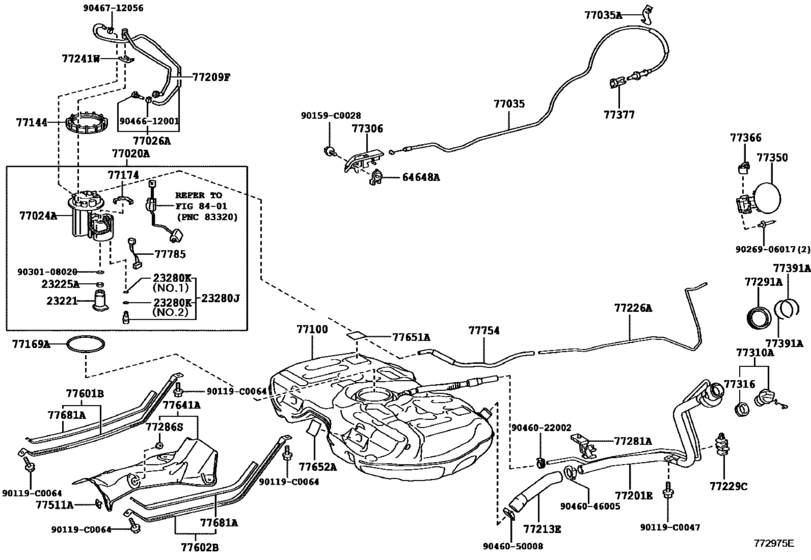

Fuel Tank & Tube ([06.2011 - ] FUEL TANK (1106- )) 57
#OEMPart name
23221 23220-0T180 Pump, Fuel
23221 23220-0T181 Pump Assy, Fuel W/filter
23221 77785-0F031 Harness, Fuel Pump
23225 23225-0H020 Spacer, Fuel Pump
23280 23280-21010 Regulator Assy, Fuel Pressure
23280 90301-04013 Ring, O(For Fuel Pump)
23280 90301-15024 Ring, O(For Fuel Pump)
64648 64648-0F010 Grommet, Luggage Door Lock Opener
64648 64648-12020 Grommet, Luggage Door Lock Opener
77020 77020-0F060 Tube Assy, Fuel Suction W/pump & Gage
77020 77020-0F062 Tube Assy, Fuel Suction W/pump & Gage
77024 77024-0F040 Plate Sub-Assy, Fuel Suction
77024 77024-0F061 Plate Sub-Assy, Fuel Suction
77026 77026-0F010 Tube Sub-Assy, Fuel Evaporation, No.1
77035 77035-0F050 Cable Sub-Assy, Fuel Lid Lock Control
77035 90469-07005 Clamp (For Fuel Lid Lock Control Cable)
77100 77001-0F050 Tank Assy, Fuel
77144 77144-0H010 Retainer, Fuel Pump Gauge
77169 77169-0D030 Gasket, Fuel Suction Tube Set
77174 77174-0F010 Support, Fuel Suction, No.1
77201 77201-0F030 Pipe Sub-Assy, Fuel Tank Filler
77209 77209-0F020 Tube Sub-Assy, Fuel Tank Main
77213 77213-0F010 Hose, Fuel Tank To Filler Pipe
77226 77226-0F010 Tube, Fuel Tank Breather, No.6
77229 77229-12070 Clamp, Breather Tube
77241 77241-32060 Clip, Tube Joint
77281 77281-64010 Clamp, Fuel Filler Pipe
77286 77286-12110 Cushion, Fuel Tank Protector
77291 77291-0F020 Shield, Fuel Tank Filler Pipe
77306 77306-0D050 Lever Sub-Assy, Fuel Lid Lock Open
77310 77300-0F010 Cap Assy, Fuel Tank
77316 77316-0F020 Gasket, Fuel Tank Cap
77350 77350-0F010 Lid Assy, Fuel Filler Opening
77366 77366-52010 Spring, Fuel Filler Opening Lid Hinge
77377 77377-75010 Retainer, Fuel Filler Opening Lid Lock
77391 77391-12020 Ring, Fuel Inlet Box
77511 77512-35140 Bracket, Fuel Tank
77601 77601-0F020 Band Sub-Assy, Fuel Tank, No.1 Rh
77602 77602-0F020 Band Sub-Assy, Fuel Tank, No.1 Lh
77641 77641-0F030 Protector, Fuel Tank, No.1
77651 77651-12070 Cushion, Fuel Tank, No.1
77652 77652-45030 Cushion, Fuel Tank, No.2
77681 77681-0F010 Seat, Fuel Tank Band
77754 77754-0F010 Hose, Charcoal Canister Outlet, No.1
77785 77785-0F030 Harness, Fuel Pump
90119 90119-C0047 New Genuine Part
90119 90119-C0064 New Genuine Part
90159 90159-C0028 New Genuine Part
9026906017 90269-06017 RIVET
9030108020 90301-08020 Ring, O(For Fuel Pump)
9046022002 90460-22002 CLAMP
9046022002 90460-22001 CLAMP
9046046005 90460-46005 Clamp (For Fuel Filler Pipe)
9046050008 90460-50008 Clamp (For Fuel Filler Pipe)
9046612001 90466-12001 Clamp Or Clip, Hose(For Water By-Pass Hose, No.1)
9046712056 90467-12056 Clamp Or Clip(For Throttle Body Hose)
9046712056 90466-T0048 New Genuine Part
