Search › Model › ZGR22

ZGR22

Toyota E-Z · 2011 · 2,960 parts · 177 categories

← Back to categories

2,960 items

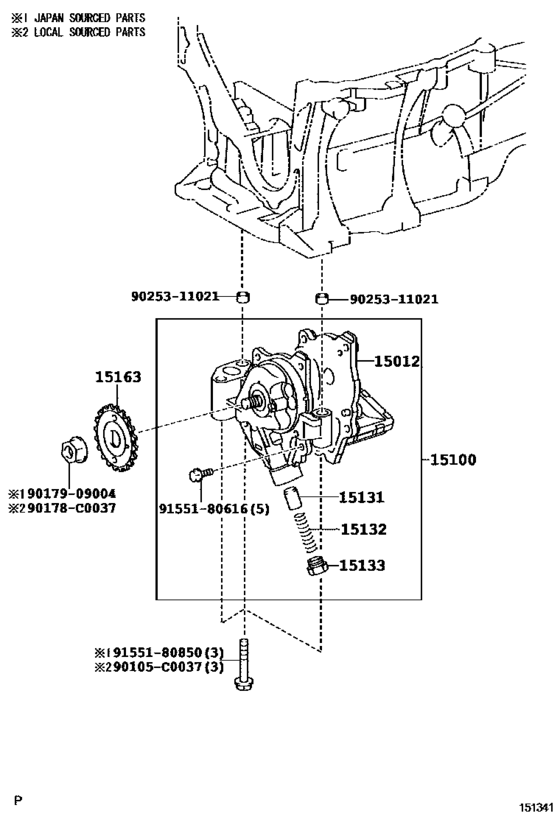

Engine Oil Pump ([06.2011 - ] (1106- )) 12

#	OEM	Part name
15012	15012-37010	Cover Sub-Assy, Oil Pump
15100	15100-37030	Pump Assy, Oil
15131	15131-0A040	Valve, Oil Pump Relief
15132	15132-46060	Spring, Oil Pump Relief Valve
15133	15133-28020	Plug, Oil Pump Relief Valve
15163	15163-28010	Gear, Oil Pump Drive Shaft
90105	90105-C0037	New Genuine Part
90178	90178-C0037	New Genuine Part
9017909004	90179-09004	NUT
9025311021	90253-11021	Pin, Ring
9155180616	91551-80616	BOLT FLANGE
9155180850	91551-80850	Bolt, Compressor, No.1

OEM	Part name	Category
15012-37010	Cover Sub-Assy, Oil Pump	Engine Oil Pump ([06.2011 - ] (1106- ))
15100-37030	Pump Assy, Oil	Engine Oil Pump ([06.2011 - ] (1106- ))
15131-0A040	Valve, Oil Pump Relief	Engine Oil Pump ([06.2011 - ] (1106- ))
15132-46060	Spring, Oil Pump Relief Valve	Engine Oil Pump ([06.2011 - ] (1106- ))
15133-28020	Plug, Oil Pump Relief Valve	Engine Oil Pump ([06.2011 - ] (1106- ))
15163-28010	Gear, Oil Pump Drive Shaft	Engine Oil Pump ([06.2011 - ] (1106- ))
90105-C0037	New Genuine Part	Engine Oil Pump ([06.2011 - ] (1106- ))
90178-C0037	New Genuine Part	Engine Oil Pump ([06.2011 - ] (1106- ))
90179-09004	NUT	Engine Oil Pump ([06.2011 - ] (1106- ))
90253-11021	Pin, Ring	Engine Oil Pump ([06.2011 - ] (1106- ))
91551-80616	BOLT FLANGE	Engine Oil Pump ([06.2011 - ] (1106- ))
91551-80850	Bolt, Compressor, No.1	Engine Oil Pump ([06.2011 - ] (1106- ))

Source: Public OEM parts-catalog data
Variants: 2 / 2
Category: 177
Collected: 2026-08-03
