Search › Model › ZGR22

ZGR22

Toyota E-Z · 2011 · 2,960 parts · 177 categories

2,960 items

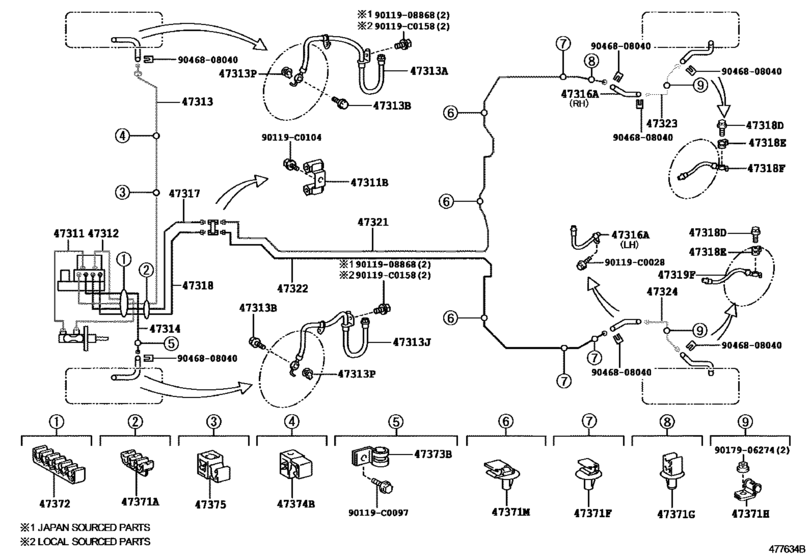

Brake Tube & Clamp ([06.2011 - ] (1106- )) 41

#	OEM	Part name
44510	44050-0F060	Actuator Assy, Brake
44547	44547-02040	Cushion, Brake Actuator Bolt
44590	44590-0F050	Bracket Assy, Brake Actuator
47311	47311-0F140	Tube, Front Brake, No.1
47311	90412-C0001	Way, No.1(For Front Brake Tube)
47312	47312-0F140	Tube, Front Brake, No.2
47313	47313-0F140	Tube, Front Brake, No.3
47313	90947-C2049	Hose, Flexible, No.1(For Front)
47313	90401-C0001	Bolt, Union(For Front Flexible Hose)
47313	90947-C2050	Hose, Flexible, No.2(For Front)
47313	47389-50021	Gasket(For Front Flexible Hose)
47314	47314-0F140	Tube, Front Brake, No.4
47316	90947-C2051	Hose, Flexible(For Rear Brake Tube)
47316	90947-C2053	Hose, Flexible(For Rear Brake Tube)
47317	47317-0F140	Tube, Front Brake, No.7
47318	47318-0F140	Tube, Front Brake, No.8
47318	90947-C2052	Hose, Flexible(For Rear Brake Tube)
47321	47321-0F040	Tube, Rear Brake, No.1
47322	47322-0F040	Tube, Rear Brake, No.2
47323	47323-0F010	Tube, Rear Brake, No.3
47324	47324-0F010	Tube, Rear Brake, No.4
47371	90464-00868	Clamp, Brake Tube, No.1
47371	90949-01D17	Clamp(For Clutch Master Cylinder Tube)
47371	90949-01D29	Clamp(For Clutch Tube)
47371	90461-10837	Clamp, Brake Tube, No.6
47371	90949-01D46	Clamp, Brake Tube, No.7
47372	90464-00900	Clamp, Brake Tube, No.2
47373	90461-10781	Clamp, Brake Tube, No.6
47374	90949-01C82	Clamp(For Clutch Master Cylinder Tube)
47375	90949-01D78	Clamp(For Clutch Master Cylinder Tube)
90119	90119-C0028	New Genuine Part
90119	90119-C0097	New Genuine Part
90119	90119-C0104	New Genuine Part
90119	90119-C0158	New Genuine Part
445210	44521-0F010	Ring, Back-up(for Brake Actuator)
4452112050	44521-12050	Collar, Brake Actuator Case, No.1
9011906844	90119-06844	Bolt, Brake Actuator Cushion
9011908868	90119-08868	BOLT WWASHER
9017906274	90179-06274	Nut
9017908200	90179-08200	New Genuine Part
9046808040	90468-08040	CLIP

OEM	Part name	Category
44050-0F060	Actuator Assy, Brake	Brake Tube & Clamp ([06.2011 - ] (1106- ))
44521-0F010	Ring, Back-up(for Brake Actuator)	Brake Tube & Clamp ([06.2011 - ] (1106- ))
44521-12050	Collar, Brake Actuator Case, No.1	Brake Tube & Clamp ([06.2011 - ] (1106- ))
44547-02040	Cushion, Brake Actuator Bolt	Brake Tube & Clamp ([06.2011 - ] (1106- ))
44590-0F050	Bracket Assy, Brake Actuator	Brake Tube & Clamp ([06.2011 - ] (1106- ))
47311-0F140	Tube, Front Brake, No.1	Brake Tube & Clamp ([06.2011 - ] (1106- ))
47312-0F140	Tube, Front Brake, No.2	Brake Tube & Clamp ([06.2011 - ] (1106- ))
47313-0F140	Tube, Front Brake, No.3	Brake Tube & Clamp ([06.2011 - ] (1106- ))
47314-0F140	Tube, Front Brake, No.4	Brake Tube & Clamp ([06.2011 - ] (1106- ))
47317-0F140	Tube, Front Brake, No.7	Brake Tube & Clamp ([06.2011 - ] (1106- ))
47318-0F140	Tube, Front Brake, No.8	Brake Tube & Clamp ([06.2011 - ] (1106- ))
47321-0F040	Tube, Rear Brake, No.1	Brake Tube & Clamp ([06.2011 - ] (1106- ))
47322-0F040	Tube, Rear Brake, No.2	Brake Tube & Clamp ([06.2011 - ] (1106- ))
47323-0F010	Tube, Rear Brake, No.3	Brake Tube & Clamp ([06.2011 - ] (1106- ))
47324-0F010	Tube, Rear Brake, No.4	Brake Tube & Clamp ([06.2011 - ] (1106- ))
47389-50021	Gasket(For Front Flexible Hose)	Brake Tube & Clamp ([06.2011 - ] (1106- ))
90119-06844	Bolt, Brake Actuator Cushion	Brake Tube & Clamp ([06.2011 - ] (1106- ))
90119-08868	BOLT WWASHER	Brake Tube & Clamp ([06.2011 - ] (1106- ))
90119-C0028	New Genuine Part	Brake Tube & Clamp ([06.2011 - ] (1106- ))
90119-C0097	New Genuine Part	Brake Tube & Clamp ([06.2011 - ] (1106- ))
90119-C0104	New Genuine Part	Brake Tube & Clamp ([06.2011 - ] (1106- ))
90119-C0158	New Genuine Part	Brake Tube & Clamp ([06.2011 - ] (1106- ))
90179-06274	Nut	Brake Tube & Clamp ([06.2011 - ] (1106- ))
90179-08200	New Genuine Part	Brake Tube & Clamp ([06.2011 - ] (1106- ))
90401-C0001	Bolt, Union(For Front Flexible Hose)	Brake Tube & Clamp ([06.2011 - ] (1106- ))
90412-C0001	Way, No.1(For Front Brake Tube)	Brake Tube & Clamp ([06.2011 - ] (1106- ))
90461-10781	Clamp, Brake Tube, No.6	Brake Tube & Clamp ([06.2011 - ] (1106- ))
90461-10837	Clamp, Brake Tube, No.6	Brake Tube & Clamp ([06.2011 - ] (1106- ))
90464-00868	Clamp, Brake Tube, No.1	Brake Tube & Clamp ([06.2011 - ] (1106- ))
90464-00900	Clamp, Brake Tube, No.2	Brake Tube & Clamp ([06.2011 - ] (1106- ))
90468-08040	CLIP	Brake Tube & Clamp ([06.2011 - ] (1106- ))
90947-C2049	Hose, Flexible, No.1(For Front)	Brake Tube & Clamp ([06.2011 - ] (1106- ))
90947-C2050	Hose, Flexible, No.2(For Front)	Brake Tube & Clamp ([06.2011 - ] (1106- ))
90947-C2051	Hose, Flexible(For Rear Brake Tube)	Brake Tube & Clamp ([06.2011 - ] (1106- ))
90947-C2052	Hose, Flexible(For Rear Brake Tube)	Brake Tube & Clamp ([06.2011 - ] (1106- ))
90947-C2053	Hose, Flexible(For Rear Brake Tube)	Brake Tube & Clamp ([06.2011 - ] (1106- ))
90949-01C82	Clamp(For Clutch Master Cylinder Tube)	Brake Tube & Clamp ([06.2011 - ] (1106- ))
90949-01D17	Clamp(For Clutch Master Cylinder Tube)	Brake Tube & Clamp ([06.2011 - ] (1106- ))
90949-01D29	Clamp(For Clutch Tube)	Brake Tube & Clamp ([06.2011 - ] (1106- ))
90949-01D46	Clamp, Brake Tube, No.7	Brake Tube & Clamp ([06.2011 - ] (1106- ))
90949-01D78	Clamp(For Clutch Master Cylinder Tube)	Brake Tube & Clamp ([06.2011 - ] (1106- ))
