ZGR22

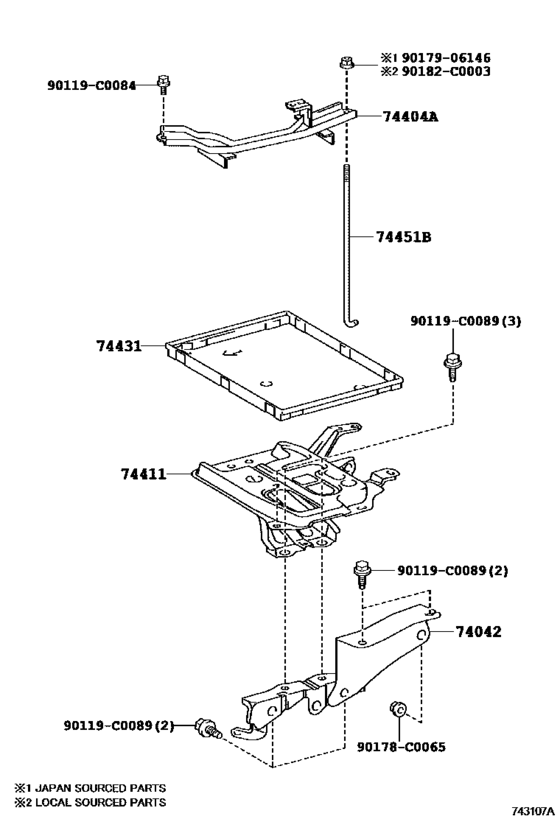

Battery Carrier ([06.2011 - ] (1106- )) 10
| # | OEM | Part name |
|---|---|---|
| 74042 | 74401-0F010 | Bracket Sub-Assy, Battery |
| 74404 | 74404-02180 | Clamp Sub-Assy, Battery |
| 74411 | 74410-0F010 | Carrier, Battery |
| 74431 | 74431-02240 | Tray, Battery |
| 74451 | 74451-0F010 | Bolt, Battery Clamp |
| 90119 | 90119-C0084 | New Genuine Part |
| 90119 | 90119-C0089 | New Genuine Part |
| 90178 | 90178-C0065 | New Genuine Part |
| 90182 | 90182-C0003 | New Genuine Part |
| 9017906146 | 90179-06146 | Nut |
| OEM | Part name | Category |
|---|---|---|
| 74401-0F010 | Bracket Sub-Assy, Battery | Battery Carrier ([06.2011 - ] (1106- )) |
| 74404-02180 | Clamp Sub-Assy, Battery | Battery Carrier ([06.2011 - ] (1106- )) |
| 74410-0F010 | Carrier, Battery | Battery Carrier ([06.2011 - ] (1106- )) |
| 74431-02240 | Tray, Battery | Battery Carrier ([06.2011 - ] (1106- )) |
| 74451-0F010 | Bolt, Battery Clamp | Battery Carrier ([06.2011 - ] (1106- )) |
| 90119-C0084 | New Genuine Part | Battery Carrier ([06.2011 - ] (1106- )) |
| 90119-C0089 | New Genuine Part | Battery Carrier ([06.2011 - ] (1106- )) |
| 90178-C0065 | New Genuine Part | Battery Carrier ([06.2011 - ] (1106- )) |
| 90179-06146 | Nut | Battery Carrier ([06.2011 - ] (1106- )) |
| 90182-C0003 | New Genuine Part | Battery Carrier ([06.2011 - ] (1106- )) |
