Search › Model › ZGR21
ZGR21

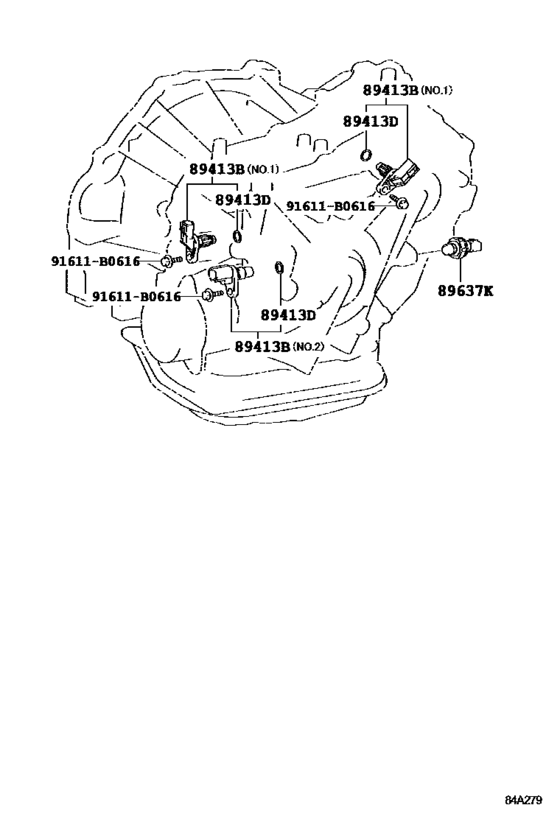

Overdrive & Electronic Controlled Transmission ([02.2009 - ] (0902- )CVT) 7
| # | OEM | Part name |
|---|---|---|
| 89413 | 89413-12020 | Sensor, Transmission Revolution |
| 89413 | 89413-04010 | Sensor, Transmission Revolution, (Nt) |
| 89413 | 89413-60020 | Sensor, Speed |
| 89413 | 89413-60021 | SENSOR TRANSMISSION |
| 89413 | 90301-11008 | Ring,o (For Speedometer Driven Hole Cover) |
| 89637 | 89637-63010 | Sensor, Oil Pressure |
| 91611 | 91611-B0616 | Bolt(For Transaxle Case Receiver) |
| OEM | Part name | Category |
|---|---|---|
| 89413-04010 | Sensor, Transmission Revolution, (Nt) | Overdrive & Electronic Controlled Transmission ([02.2009 - ] (0902- )CVT) |
| 89413-12020 | Sensor, Transmission Revolution | Overdrive & Electronic Controlled Transmission ([02.2009 - ] (0902- )CVT) |
| 89413-60020 | Sensor, Speed | Overdrive & Electronic Controlled Transmission ([02.2009 - ] (0902- )CVT) |
| 89413-60021 | SENSOR TRANSMISSION | Overdrive & Electronic Controlled Transmission ([02.2009 - ] (0902- )CVT) |
| 89637-63010 | Sensor, Oil Pressure | Overdrive & Electronic Controlled Transmission ([02.2009 - ] (0902- )CVT) |
| 90301-11008 | Ring,o (For Speedometer Driven Hole Cover) | Overdrive & Electronic Controlled Transmission ([02.2009 - ] (0902- )CVT) |
| 91611-B0616 | Bolt(For Transaxle Case Receiver) | Overdrive & Electronic Controlled Transmission ([02.2009 - ] (0902- )CVT) |
