Search › Model › ZGR21
ZGR21

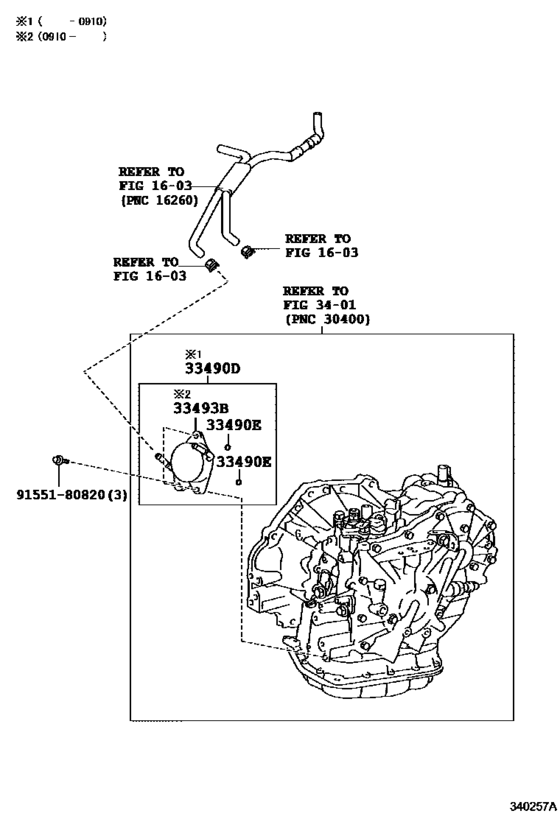

Oil Cooler & Tube(Cvt) ([02.2009 - ] K311 (0902- )CVT) 4
| # | OEM | Part name |
|---|---|---|
| 33490 | 90301-20012 | Ring, O (For Transmission Oil Cooler) |
| 33493 | 33493-20100 | Cooler, Transmission Oil |
| 33493 | 33493-52030 | Cooler, Transmission Oil |
| 9155180820 | 91551-80820 | Bolt, W/washer (For Transmission Oil Pump Cover) |
| OEM | Part name | Category |
|---|---|---|
| 33493-20100 | Cooler, Transmission Oil | Oil Cooler & Tube(Cvt) ([02.2009 - ] K311 (0902- )CVT) |
| 33493-52030 | Cooler, Transmission Oil | Oil Cooler & Tube(Cvt) ([02.2009 - ] K311 (0902- )CVT) |
| 90301-20012 | Ring, O (For Transmission Oil Cooler) | Oil Cooler & Tube(Cvt) ([02.2009 - ] K311 (0902- )CVT) |
| 91551-80820 | Bolt, W/washer (For Transmission Oil Pump Cover) | Oil Cooler & Tube(Cvt) ([02.2009 - ] K311 (0902- )CVT) |
