Search › Model › ZGR21

ZGR21

Toyota VERSO · 2009 · 4,776 parts · 239 categories

4,776 items

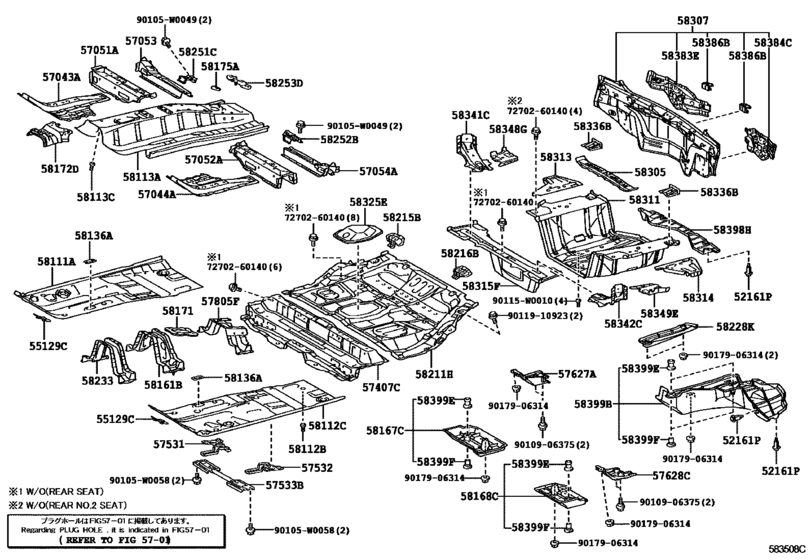

Floor Pan & Lower Back Panel ([02.2009 - ] (0902- )) 66

#	OEM	Part name
52161	52161-02030	Piece, Rear Bumper
52161	52161-16010	Clip
55129	55129-02030	Cover, Dash Panel Hole
55129	55139-02020	Cover, Dash Panel Hole
57043	57043-02040	Reinforcement Sub-Assy, Front Side Member, Rear Rh
57044	57044-02040	Reinforcement Sub-Assy, Front Side Member, Rear Lh - FRONT SIDE MENBER, RREAR LH
57051	57051-02010	Member Sub-Assy, Front Floor Cross, Rh
57052	57052-02010	Member Sub-Assy, Front Floor Cross, Lh
57053	57053-02010	Reinforcement Sub-Assy, Front Floor Cross Member, Rh
57054	57054-02010	Reinforcement Sub-Assy, Front Floor Cross Member, Lh
57407	57407-0F020	Member Sub-Assy, Center Floor Cross, No.1
57531	57531-02010	Bracket, Front Floor Center Brace, Rh
57532	57532-02010	Bracket, Front Floor Center Brace, Lh
57533	57501-02021	Brace, Front Floor, Center
57627	57627-0F010	Cover, Rear Floor Side Member, Rh
57628	57628-0F010	Cover, Rear Floor Side Member, Lh
57805	57805-02030	Reinforcement Sub-Assy, Belt Anchor, No.1
57805	57805-02031	Reinforcement Sub-Assy, Belt Anchor, No.1
58111	58111-0F030	Pan, Front Floor, Rh
58112	90115-W0008	Bolt, Weld(For Front Floor Pan, Lh)
58112	58112-0F901	Pan, Front Floor, Lh
58113	58113-0F901	Panel, Front Floor, Center
58113	90115-W0010	Bolt, Weld(For Front Floor Panel, Center)
58136	58136-02030	Cover, Front Floor Service Hole
58161	58161-02040	Reinforcement, Belt Anchor To Floor Pan
58167	58167-0F010	Cover, Front Floor, Center Rh
58168	58168-0F010	Cover, Front Floor, Center Lh
58168	58168-0F011	Cover, Front Floor, Center Lh
58171	58171-02040	Reinforcement, Parking Brake Base
58172	58173-05010	Bracket, Wiring Harness Protector
58175	58176-02010	Reinforcement, Parking Brake Base, No.1
58211	58211-0F020	Pan, Center Floor
58215	58215-0F010	Bracket, Rear Seat Mounting, Rh
58216	58216-0F010	Bracket, Rear Seat Mounting, Lh
58228	58228-0F010	Plate, Air Guide, Rh
58233	58203-02020	Bracket, Exhaust Pipe Mounting
58251	58251-02030	Brace, Floor Panel, Front Rh
58252	58252-02010	Brace, Floor Panel, Front Lh
58253	58253-0F010	Bracket, Parking Brake Cable
58305	58305-0F010	Bracket Sub-Assy, Spare Wheel Clamp
58307	58307-0F021	Panel Sub-Assy, Body Lower Back
58311	58311-0F905	Pan, Rear Floor
58313	58313-02050	Panel, Rear Floor Side, Rh
58314	58314-02050	Panel, Rear Floor Side, Lh
58315	58315-0F020	Extension, Rear Floor Side Panel, Front
58325	58325-0F020	Cover, Rear Floor Service Hole
58336	58336-02050	Reinforcement, Rear Floor Pan
58341	58341-0F030	Bracket, Rear Absorber Mounting, No.1 Rh
58342	58342-0F030	Bracket, Rear Absorber Mounting, No.1 Lh
58348	58348-0F010	Plate, Rear Floor Side, Rh
58349	58349-0F010	Plate, Rear Floor Side, Lh
58383	58383-0F020	Reinforcement, Body Lower Back, No.2 Rh
58384	58384-0F020	Reinforcement, Body Lower Back, No.2 Lh
58386	58386-02010	Bracket, Rear Bumper Cover, No.2
58398	58398-0F020	Cover, Floor Under, No.1
58399	58399-0F010	Cover, Floor Under, No.2
58399	90467-17024-A0	Clip, No.1(For Front Fender Seal)
58399	90467-17026-A0	Clip, No.1(For Front Fender Seal)
58399	90467-17025-C0	Clip, No.2(For Front Fender Seal)
58399	90467-17027-C0	Clip, No.2(For Front Fender Seal)
90105	90105-W0049	New Genuine Part
90105	90105-W0058	New Genuine Part
7270260140	72702-60140	Bracket Sub-assy, Rear Seat Back Striker
9010906375	90109-06375	BOLT
9011910923	90119-10923	New Genuine Part
9017906314	90179-06314	NUT

OEM	Part name	Category
52161-02030	Piece, Rear Bumper	Floor Pan & Lower Back Panel ([02.2009 - ] (0902- ))
52161-16010	Clip	Floor Pan & Lower Back Panel ([02.2009 - ] (0902- ))
55129-02030	Cover, Dash Panel Hole	Floor Pan & Lower Back Panel ([02.2009 - ] (0902- ))
55139-02020	Cover, Dash Panel Hole	Floor Pan & Lower Back Panel ([02.2009 - ] (0902- ))
57043-02040	Reinforcement Sub-Assy, Front Side Member, Rear Rh	Floor Pan & Lower Back Panel ([02.2009 - ] (0902- ))
57044-02040	Reinforcement Sub-Assy, Front Side Member, Rear Lh - FRONT SIDE MENBER, RREAR LH	Floor Pan & Lower Back Panel ([02.2009 - ] (0902- ))
57051-02010	Member Sub-Assy, Front Floor Cross, Rh	Floor Pan & Lower Back Panel ([02.2009 - ] (0902- ))
57052-02010	Member Sub-Assy, Front Floor Cross, Lh	Floor Pan & Lower Back Panel ([02.2009 - ] (0902- ))
57053-02010	Reinforcement Sub-Assy, Front Floor Cross Member, Rh	Floor Pan & Lower Back Panel ([02.2009 - ] (0902- ))
57054-02010	Reinforcement Sub-Assy, Front Floor Cross Member, Lh	Floor Pan & Lower Back Panel ([02.2009 - ] (0902- ))
57407-0F020	Member Sub-Assy, Center Floor Cross, No.1	Floor Pan & Lower Back Panel ([02.2009 - ] (0902- ))
57501-02021	Brace, Front Floor, Center	Floor Pan & Lower Back Panel ([02.2009 - ] (0902- ))
57531-02010	Bracket, Front Floor Center Brace, Rh	Floor Pan & Lower Back Panel ([02.2009 - ] (0902- ))
57532-02010	Bracket, Front Floor Center Brace, Lh	Floor Pan & Lower Back Panel ([02.2009 - ] (0902- ))
57627-0F010	Cover, Rear Floor Side Member, Rh	Floor Pan & Lower Back Panel ([02.2009 - ] (0902- ))
57628-0F010	Cover, Rear Floor Side Member, Lh	Floor Pan & Lower Back Panel ([02.2009 - ] (0902- ))
57805-02030	Reinforcement Sub-Assy, Belt Anchor, No.1	Floor Pan & Lower Back Panel ([02.2009 - ] (0902- ))
57805-02031	Reinforcement Sub-Assy, Belt Anchor, No.1	Floor Pan & Lower Back Panel ([02.2009 - ] (0902- ))
58111-0F030	Pan, Front Floor, Rh	Floor Pan & Lower Back Panel ([02.2009 - ] (0902- ))
58112-0F901	Pan, Front Floor, Lh	Floor Pan & Lower Back Panel ([02.2009 - ] (0902- ))
58113-0F901	Panel, Front Floor, Center	Floor Pan & Lower Back Panel ([02.2009 - ] (0902- ))
58136-02030	Cover, Front Floor Service Hole	Floor Pan & Lower Back Panel ([02.2009 - ] (0902- ))
58161-02040	Reinforcement, Belt Anchor To Floor Pan	Floor Pan & Lower Back Panel ([02.2009 - ] (0902- ))
58167-0F010	Cover, Front Floor, Center Rh	Floor Pan & Lower Back Panel ([02.2009 - ] (0902- ))
58168-0F010	Cover, Front Floor, Center Lh	Floor Pan & Lower Back Panel ([02.2009 - ] (0902- ))
58168-0F011	Cover, Front Floor, Center Lh	Floor Pan & Lower Back Panel ([02.2009 - ] (0902- ))
58171-02040	Reinforcement, Parking Brake Base	Floor Pan & Lower Back Panel ([02.2009 - ] (0902- ))
58173-05010	Bracket, Wiring Harness Protector	Floor Pan & Lower Back Panel ([02.2009 - ] (0902- ))
58176-02010	Reinforcement, Parking Brake Base, No.1	Floor Pan & Lower Back Panel ([02.2009 - ] (0902- ))
58203-02020	Bracket, Exhaust Pipe Mounting	Floor Pan & Lower Back Panel ([02.2009 - ] (0902- ))
58211-0F020	Pan, Center Floor	Floor Pan & Lower Back Panel ([02.2009 - ] (0902- ))
58215-0F010	Bracket, Rear Seat Mounting, Rh	Floor Pan & Lower Back Panel ([02.2009 - ] (0902- ))
58216-0F010	Bracket, Rear Seat Mounting, Lh	Floor Pan & Lower Back Panel ([02.2009 - ] (0902- ))
58228-0F010	Plate, Air Guide, Rh	Floor Pan & Lower Back Panel ([02.2009 - ] (0902- ))
58251-02030	Brace, Floor Panel, Front Rh	Floor Pan & Lower Back Panel ([02.2009 - ] (0902- ))
58252-02010	Brace, Floor Panel, Front Lh	Floor Pan & Lower Back Panel ([02.2009 - ] (0902- ))
58253-0F010	Bracket, Parking Brake Cable	Floor Pan & Lower Back Panel ([02.2009 - ] (0902- ))
58305-0F010	Bracket Sub-Assy, Spare Wheel Clamp	Floor Pan & Lower Back Panel ([02.2009 - ] (0902- ))
58307-0F021	Panel Sub-Assy, Body Lower Back	Floor Pan & Lower Back Panel ([02.2009 - ] (0902- ))
58311-0F905	Pan, Rear Floor	Floor Pan & Lower Back Panel ([02.2009 - ] (0902- ))
58313-02050	Panel, Rear Floor Side, Rh	Floor Pan & Lower Back Panel ([02.2009 - ] (0902- ))
58314-02050	Panel, Rear Floor Side, Lh	Floor Pan & Lower Back Panel ([02.2009 - ] (0902- ))
58315-0F020	Extension, Rear Floor Side Panel, Front	Floor Pan & Lower Back Panel ([02.2009 - ] (0902- ))
58325-0F020	Cover, Rear Floor Service Hole	Floor Pan & Lower Back Panel ([02.2009 - ] (0902- ))
58336-02050	Reinforcement, Rear Floor Pan	Floor Pan & Lower Back Panel ([02.2009 - ] (0902- ))
58341-0F030	Bracket, Rear Absorber Mounting, No.1 Rh	Floor Pan & Lower Back Panel ([02.2009 - ] (0902- ))
58342-0F030	Bracket, Rear Absorber Mounting, No.1 Lh	Floor Pan & Lower Back Panel ([02.2009 - ] (0902- ))
58348-0F010	Plate, Rear Floor Side, Rh	Floor Pan & Lower Back Panel ([02.2009 - ] (0902- ))
58349-0F010	Plate, Rear Floor Side, Lh	Floor Pan & Lower Back Panel ([02.2009 - ] (0902- ))
58383-0F020	Reinforcement, Body Lower Back, No.2 Rh	Floor Pan & Lower Back Panel ([02.2009 - ] (0902- ))
58384-0F020	Reinforcement, Body Lower Back, No.2 Lh	Floor Pan & Lower Back Panel ([02.2009 - ] (0902- ))
58386-02010	Bracket, Rear Bumper Cover, No.2	Floor Pan & Lower Back Panel ([02.2009 - ] (0902- ))
58398-0F020	Cover, Floor Under, No.1	Floor Pan & Lower Back Panel ([02.2009 - ] (0902- ))
58399-0F010	Cover, Floor Under, No.2	Floor Pan & Lower Back Panel ([02.2009 - ] (0902- ))
72702-60140	Bracket Sub-assy, Rear Seat Back Striker	Floor Pan & Lower Back Panel ([02.2009 - ] (0902- ))
90105-W0049	New Genuine Part	Floor Pan & Lower Back Panel ([02.2009 - ] (0902- ))
90105-W0058	New Genuine Part	Floor Pan & Lower Back Panel ([02.2009 - ] (0902- ))
90109-06375	BOLT	Floor Pan & Lower Back Panel ([02.2009 - ] (0902- ))
90115-W0008	Bolt, Weld(For Front Floor Pan, Lh)	Floor Pan & Lower Back Panel ([02.2009 - ] (0902- ))
90115-W0010	Bolt, Weld(For Front Floor Panel, Center)	Floor Pan & Lower Back Panel ([02.2009 - ] (0902- ))
90119-10923	New Genuine Part	Floor Pan & Lower Back Panel ([02.2009 - ] (0902- ))
90179-06314	NUT	Floor Pan & Lower Back Panel ([02.2009 - ] (0902- ))
90467-17024-A0	Clip, No.1(For Front Fender Seal)	Floor Pan & Lower Back Panel ([02.2009 - ] (0902- ))
90467-17025-C0	Clip, No.2(For Front Fender Seal)	Floor Pan & Lower Back Panel ([02.2009 - ] (0902- ))
90467-17026-A0	Clip, No.1(For Front Fender Seal)	Floor Pan & Lower Back Panel ([02.2009 - ] (0902- ))
90467-17027-C0	Clip, No.2(For Front Fender Seal)	Floor Pan & Lower Back Panel ([02.2009 - ] (0902- ))
