Search › Model › ZGR21

ZGR21

Toyota VERSO · 2009 · 4,776 parts · 239 categories

4,776 items

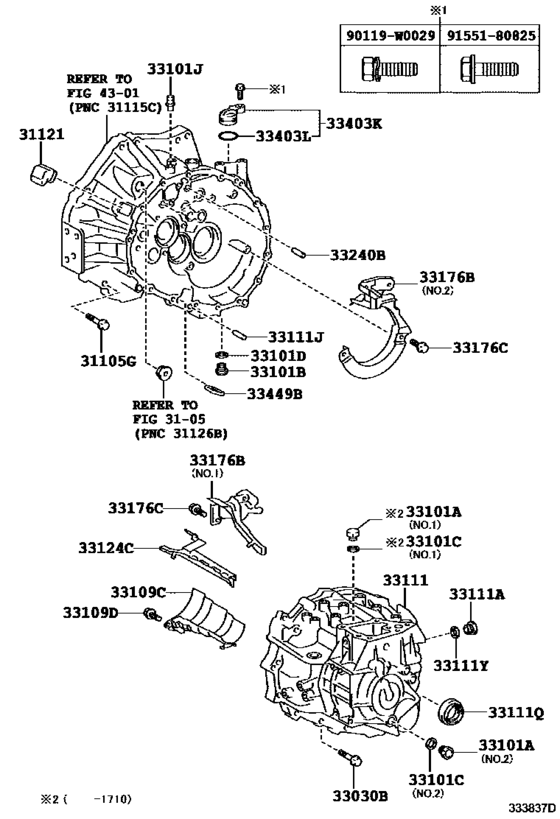

Clutch Housing & Transmission Case (Mtm) ([02.2009 - ] EC61,EC62 (0902- )ZGR2#..6F) 42

#	OEM	Part name
31105	90105-W0177	Bolt(For Transaxle Case & Engine Setting)
31105	91552-81045	Bolt, No.1(For Alternator)
31121	31121-05010	Cover, Clutch Housing, No.1
31121	31121-52020	Cover, Clutch Housing, No.1
33030	90105-W0209	Bolt(For Transaxle Case & Transmission Case Setting)
33030	91551-10840	Bolt(For Transaxle Case & Transmission Case Setting)
33101	90341-14032	Plug, W/head Taper Screw, No.1
33101	90341-18033	Plug(For Manual Transmission Filler)
33101	90341-18016	Plug, W/head Straight Screw(For Transaxle Housing & Case)
33101	90341-18023	Plug, W/head Straight Screw, No.1
33101	12157-10010	Gasket (For Drain Plug)
33101	90430-14003	Gasket(For Manual Transmission Filler Plug)
33101	90430-18008	Gasket
33101	90430-T0021	Gasket(For Manual Transmission Filler Plug)
33101	90430-W0001	Gasket(For Manual Transmission Filler Plug)
33101	90930-03133	Plug, Breather
33109	33109-0D010	Separator Sub-Assy, Manual Transmission Oil
33109	33109-0D011	Separator Sub-Assy, Manual Transmission Oil
33109	33109-20020	Separator Sub-Assy, Manual Transmission Oil
33109	33109-52010	Separator Sub-Assy, Manual Transmission Oil
33109	90105-W0035	Bolt(For Manual Transmission Oil Separator)
33109	91551-80816	Bolt(For Manual Transmission Oil Separator)
33111	33111-02050	Case, Manual Transmission
33111	33111-05041	Case, Manual Transmission
33111	33111-20221	Case, Manual Transmission
33111	33111-12291	Case, Manual Transmission
33111	90341-18006	Plug (No magnet)
33111	90250-08054	Pin, Straight
33111	90311-35061	Oil Seal, Front Drive Shaft, Lh - OIL(FOR TRANSMISSION CASE)
33111	90311-35075	Oil Seal, Front Drive Shaft, Lh
33111	90311-35066	Oil Seal, Front Drive Shaft, Lh
33124	33124-0D050	Pipe, Oil Receiver, No.1(Mtm)
33124	33124-20080	Pipe, Oil Receiver, No.1(Mtm)
33176	33176-0D020	Separator, Transmission Oil(Mtm)
33176	33176-0D030	Separator, Transmission Oil(Mtm)
33176	33176-20080	Separator, Transmission Oil(Mtm)
33176	33176-20090	Separator, Transmission Oil(Mtm)
33403	33403-35230	Cover Sub-Assy, Speedometer Driven Hole
33403	96711-24030	Ring,o (For Speedometer Driven Hole Cover)
33449	33449-20010	Magnet, Transmission
90119	90119-W0029	New Genuine Part
9155180825	91551-80825	Bolt(For Cylinder Head Set Sub)

OEM	Part name	Category
12157-10010	Gasket (For Drain Plug)	Clutch Housing & Transmission Case (Mtm) ([02.2009 - ] EC61,EC62 (0902- )ZGR2#..6F)
31121-05010	Cover, Clutch Housing, No.1	Clutch Housing & Transmission Case (Mtm) ([02.2009 - ] EC61,EC62 (0902- )ZGR2#..6F)
31121-52020	Cover, Clutch Housing, No.1	Clutch Housing & Transmission Case (Mtm) ([02.2009 - ] EC61,EC62 (0902- )ZGR2#..6F)
33109-0D010	Separator Sub-Assy, Manual Transmission Oil	Clutch Housing & Transmission Case (Mtm) ([02.2009 - ] EC61,EC62 (0902- )ZGR2#..6F)
33109-0D011	Separator Sub-Assy, Manual Transmission Oil	Clutch Housing & Transmission Case (Mtm) ([02.2009 - ] EC61,EC62 (0902- )ZGR2#..6F)
33109-20020	Separator Sub-Assy, Manual Transmission Oil	Clutch Housing & Transmission Case (Mtm) ([02.2009 - ] EC61,EC62 (0902- )ZGR2#..6F)
33109-52010	Separator Sub-Assy, Manual Transmission Oil	Clutch Housing & Transmission Case (Mtm) ([02.2009 - ] EC61,EC62 (0902- )ZGR2#..6F)
33111-02050	Case, Manual Transmission	Clutch Housing & Transmission Case (Mtm) ([02.2009 - ] EC61,EC62 (0902- )ZGR2#..6F)
33111-05041	Case, Manual Transmission	Clutch Housing & Transmission Case (Mtm) ([02.2009 - ] EC61,EC62 (0902- )ZGR2#..6F)
33111-12291	Case, Manual Transmission	Clutch Housing & Transmission Case (Mtm) ([02.2009 - ] EC61,EC62 (0902- )ZGR2#..6F)
33111-20221	Case, Manual Transmission	Clutch Housing & Transmission Case (Mtm) ([02.2009 - ] EC61,EC62 (0902- )ZGR2#..6F)
33124-0D050	Pipe, Oil Receiver, No.1(Mtm)	Clutch Housing & Transmission Case (Mtm) ([02.2009 - ] EC61,EC62 (0902- )ZGR2#..6F)
33124-20080	Pipe, Oil Receiver, No.1(Mtm)	Clutch Housing & Transmission Case (Mtm) ([02.2009 - ] EC61,EC62 (0902- )ZGR2#..6F)
33176-0D020	Separator, Transmission Oil(Mtm)	Clutch Housing & Transmission Case (Mtm) ([02.2009 - ] EC61,EC62 (0902- )ZGR2#..6F)
33176-0D030	Separator, Transmission Oil(Mtm)	Clutch Housing & Transmission Case (Mtm) ([02.2009 - ] EC61,EC62 (0902- )ZGR2#..6F)
33176-20080	Separator, Transmission Oil(Mtm)	Clutch Housing & Transmission Case (Mtm) ([02.2009 - ] EC61,EC62 (0902- )ZGR2#..6F)
33176-20090	Separator, Transmission Oil(Mtm)	Clutch Housing & Transmission Case (Mtm) ([02.2009 - ] EC61,EC62 (0902- )ZGR2#..6F)
33403-35230	Cover Sub-Assy, Speedometer Driven Hole	Clutch Housing & Transmission Case (Mtm) ([02.2009 - ] EC61,EC62 (0902- )ZGR2#..6F)
33449-20010	Magnet, Transmission	Clutch Housing & Transmission Case (Mtm) ([02.2009 - ] EC61,EC62 (0902- )ZGR2#..6F)
90105-W0035	Bolt(For Manual Transmission Oil Separator)	Clutch Housing & Transmission Case (Mtm) ([02.2009 - ] EC61,EC62 (0902- )ZGR2#..6F)
90105-W0177	Bolt(For Transaxle Case & Engine Setting)	Clutch Housing & Transmission Case (Mtm) ([02.2009 - ] EC61,EC62 (0902- )ZGR2#..6F)
90105-W0209	Bolt(For Transaxle Case & Transmission Case Setting)	Clutch Housing & Transmission Case (Mtm) ([02.2009 - ] EC61,EC62 (0902- )ZGR2#..6F)
90119-W0029	New Genuine Part	Clutch Housing & Transmission Case (Mtm) ([02.2009 - ] EC61,EC62 (0902- )ZGR2#..6F)
90250-08054	Pin, Straight	Clutch Housing & Transmission Case (Mtm) ([02.2009 - ] EC61,EC62 (0902- )ZGR2#..6F)
90311-35061	Oil Seal, Front Drive Shaft, Lh - OIL(FOR TRANSMISSION CASE)	Clutch Housing & Transmission Case (Mtm) ([02.2009 - ] EC61,EC62 (0902- )ZGR2#..6F)
90311-35066	Oil Seal, Front Drive Shaft, Lh	Clutch Housing & Transmission Case (Mtm) ([02.2009 - ] EC61,EC62 (0902- )ZGR2#..6F)
90311-35075	Oil Seal, Front Drive Shaft, Lh	Clutch Housing & Transmission Case (Mtm) ([02.2009 - ] EC61,EC62 (0902- )ZGR2#..6F)
90341-14032	Plug, W/head Taper Screw, No.1	Clutch Housing & Transmission Case (Mtm) ([02.2009 - ] EC61,EC62 (0902- )ZGR2#..6F)
90341-18006	Plug (No magnet)	Clutch Housing & Transmission Case (Mtm) ([02.2009 - ] EC61,EC62 (0902- )ZGR2#..6F)
90341-18016	Plug, W/head Straight Screw(For Transaxle Housing & Case)	Clutch Housing & Transmission Case (Mtm) ([02.2009 - ] EC61,EC62 (0902- )ZGR2#..6F)
90341-18023	Plug, W/head Straight Screw, No.1	Clutch Housing & Transmission Case (Mtm) ([02.2009 - ] EC61,EC62 (0902- )ZGR2#..6F)
90341-18033	Plug(For Manual Transmission Filler)	Clutch Housing & Transmission Case (Mtm) ([02.2009 - ] EC61,EC62 (0902- )ZGR2#..6F)
90430-14003	Gasket(For Manual Transmission Filler Plug)	Clutch Housing & Transmission Case (Mtm) ([02.2009 - ] EC61,EC62 (0902- )ZGR2#..6F)
90430-18008	Gasket	Clutch Housing & Transmission Case (Mtm) ([02.2009 - ] EC61,EC62 (0902- )ZGR2#..6F)
90430-T0021	Gasket(For Manual Transmission Filler Plug)	Clutch Housing & Transmission Case (Mtm) ([02.2009 - ] EC61,EC62 (0902- )ZGR2#..6F)
90430-W0001	Gasket(For Manual Transmission Filler Plug)	Clutch Housing & Transmission Case (Mtm) ([02.2009 - ] EC61,EC62 (0902- )ZGR2#..6F)
90930-03133	Plug, Breather	Clutch Housing & Transmission Case (Mtm) ([02.2009 - ] EC61,EC62 (0902- )ZGR2#..6F)
91551-10840	Bolt(For Transaxle Case & Transmission Case Setting)	Clutch Housing & Transmission Case (Mtm) ([02.2009 - ] EC61,EC62 (0902- )ZGR2#..6F)
91551-80816	Bolt(For Manual Transmission Oil Separator)	Clutch Housing & Transmission Case (Mtm) ([02.2009 - ] EC61,EC62 (0902- )ZGR2#..6F)
91551-80825	Bolt(For Cylinder Head Set Sub)	Clutch Housing & Transmission Case (Mtm) ([02.2009 - ] EC61,EC62 (0902- )ZGR2#..6F)
91552-81045	Bolt, No.1(For Alternator)	Clutch Housing & Transmission Case (Mtm) ([02.2009 - ] EC61,EC62 (0902- )ZGR2#..6F)
96711-24030	Ring,o (For Speedometer Driven Hole Cover)	Clutch Housing & Transmission Case (Mtm) ([02.2009 - ] EC61,EC62 (0902- )ZGR2#..6F)

Source: Public OEM parts-catalog data
Variants: 2 / 14
Category: 239
Collected: 2026-08-03
