ZGR20

Toyota VERSO · 2009 · 4,916 parts · 234 categories

← Back to categories

4,916 items

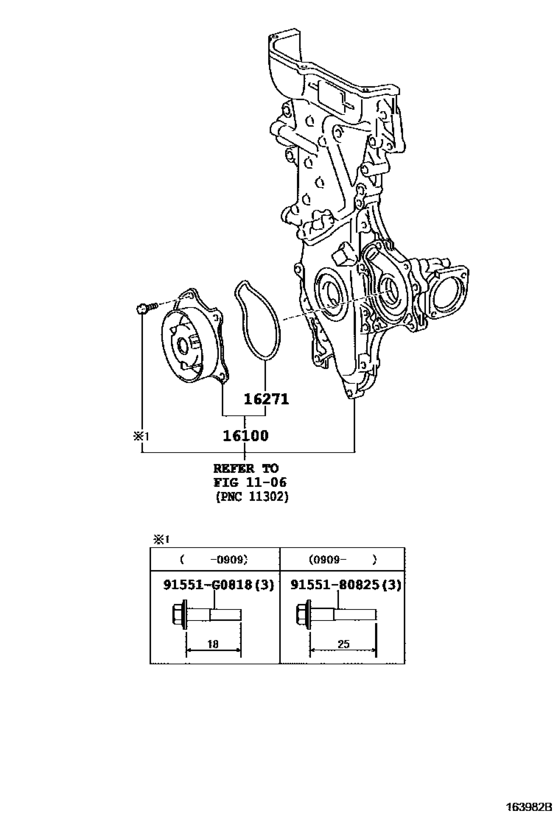

Water Pump ([02.2009 - ] (0902-1503)2ZRFAE ; (0902- )1ZRFAE) 6

#	OEM	Part name
16100	16100-09500	Pump Assy, Engine Water
16100	16100-09501	Pump Assy, Engine Water
16100	91551-80825	Bolt(For Cylinder Head Set Sub)
16100	16100-39466	Pump Assy, Engine Water
16271	16271-37010	Gasket, Water Pump
91551	91551-G0818	BOLT FLANGE

OEM	Part name	Category
16100-09500	Pump Assy, Engine Water	Water Pump ([02.2009 - ] (0902-1503)2ZRFAE ; (0902- )1ZRFAE)
16100-09501	Pump Assy, Engine Water	Water Pump ([02.2009 - ] (0902-1503)2ZRFAE ; (0902- )1ZRFAE)
16100-39466	Pump Assy, Engine Water	Water Pump ([02.2009 - ] (0902-1503)2ZRFAE ; (0902- )1ZRFAE)
16271-37010	Gasket, Water Pump	Water Pump ([02.2009 - ] (0902-1503)2ZRFAE ; (0902- )1ZRFAE)
91551-80825	Bolt(For Cylinder Head Set Sub)	Water Pump ([02.2009 - ] (0902-1503)2ZRFAE ; (0902- )1ZRFAE)
91551-G0818	BOLT FLANGE	Water Pump ([02.2009 - ] (0902-1503)2ZRFAE ; (0902- )1ZRFAE)

Source: Public OEM parts-catalog data
Variants: 2 / 6
Category: 234
Collected: 2026-08-03
