Search › Model › ZGR20
ZGR20

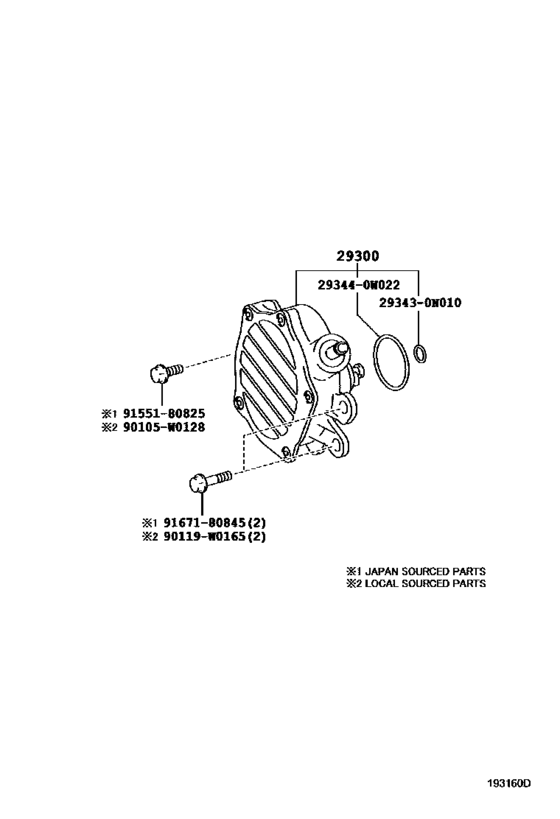

Vacuum Pump ([02.2009 - ] (0902- )1ZRFAE,2ZRFAE) 8
| # | OEM | Part name |
|---|---|---|
| 29300 | 29300-0T020 | Pump Assy, Vacuum |
| 29300 | 29300-0W022 | Pump Assy, Vacuum |
| 90105 | 90105-W0128 | New Genuine Part |
| 90119 | 90119-W0165 | Bolt(For Alternator) |
| 293430 | 29343-0N010 | Ring, O Vacuum Pump, No.1 |
| 293440 | 29344-0W022 | Ring, O Vacuum Pump, No.2 |
| 9155180825 | 91551-80825 | Bolt(For Cylinder Head Set Sub) |
| 9167180845 | 91671-80845 | Bolt, No.2(For Alternator) |
| OEM | Part name | Category |
|---|---|---|
| 29300-0T020 | Pump Assy, Vacuum | Vacuum Pump ([02.2009 - ] (0902- )1ZRFAE,2ZRFAE) |
| 29300-0W022 | Pump Assy, Vacuum | Vacuum Pump ([02.2009 - ] (0902- )1ZRFAE,2ZRFAE) |
| 29343-0N010 | Ring, O Vacuum Pump, No.1 | Vacuum Pump ([02.2009 - ] (0902- )1ZRFAE,2ZRFAE) |
| 29344-0W022 | Ring, O Vacuum Pump, No.2 | Vacuum Pump ([02.2009 - ] (0902- )1ZRFAE,2ZRFAE) |
| 90105-W0128 | New Genuine Part | Vacuum Pump ([02.2009 - ] (0902- )1ZRFAE,2ZRFAE) |
| 90119-W0165 | Bolt(For Alternator) | Vacuum Pump ([02.2009 - ] (0902- )1ZRFAE,2ZRFAE) |
| 91551-80825 | Bolt(For Cylinder Head Set Sub) | Vacuum Pump ([02.2009 - ] (0902- )1ZRFAE,2ZRFAE) |
| 91671-80845 | Bolt, No.2(For Alternator) | Vacuum Pump ([02.2009 - ] (0902- )1ZRFAE,2ZRFAE) |
