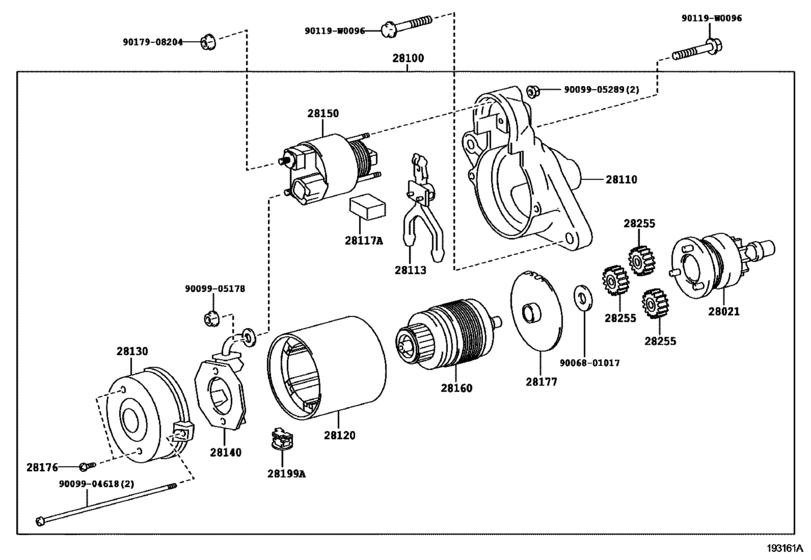

| 28021-37050 |
Clutch Sub-Assy, Starter Center Bearing |
Starter ([02.2009 - ] 12V 1.3KW (0902- )1ZRFAE,2ZRFAE) |
| 28100-0T030 |
Starter Assy |
Starter ([02.2009 - ] 12V 1.3KW (0902- )1ZRFAE,2ZRFAE) |
| 28100-0T060 |
Starter Assy |
Starter ([02.2009 - ] 12V 1.3KW (0902- )1ZRFAE,2ZRFAE) |
| 28110-0T030 |
Housing Assy, Starter Drive |
Starter ([02.2009 - ] 12V 1.3KW (0902- )1ZRFAE,2ZRFAE) |
| 28110-37050 |
Housing Assy, Starter Drive |
Starter ([02.2009 - ] 12V 1.3KW (0902- )1ZRFAE,2ZRFAE) |
| 28113-0D130 |
Lever, Starter Pinion Drive |
Starter ([02.2009 - ] 12V 1.3KW (0902- )1ZRFAE,2ZRFAE) |
| 28113-37050 |
Lever, Starter Pinion Drive |
Starter ([02.2009 - ] 12V 1.3KW (0902- )1ZRFAE,2ZRFAE) |
| 28117-37050 |
Seal, Rubber |
Starter ([02.2009 - ] 12V 1.3KW (0902- )1ZRFAE,2ZRFAE) |
| 28120-0D130 |
Yoke Assy, Starter |
Starter ([02.2009 - ] 12V 1.3KW (0902- )1ZRFAE,2ZRFAE) |
| 28120-0T060 |
Yoke Assy, Starter |
Starter ([02.2009 - ] 12V 1.3KW (0902- )1ZRFAE,2ZRFAE) |
| 28130-0D130 |
Frame Assy, Starter Commutator End |
Starter ([02.2009 - ] 12V 1.3KW (0902- )1ZRFAE,2ZRFAE) |
| 28130-37050 |
Frame Assy, Starter Commutator End |
Starter ([02.2009 - ] 12V 1.3KW (0902- )1ZRFAE,2ZRFAE) |
| 28140-0D130 |
Holder Assy, Starter Brush |
Starter ([02.2009 - ] 12V 1.3KW (0902- )1ZRFAE,2ZRFAE) |
| 28140-37050 |
Holder Assy, Starter Brush |
Starter ([02.2009 - ] 12V 1.3KW (0902- )1ZRFAE,2ZRFAE) |
| 28150-0D130 |
Switch Assy, Magnet Starter |
Starter ([02.2009 - ] 12V 1.3KW (0902- )1ZRFAE,2ZRFAE) |
| 28150-37050 |
Switch Assy, Magnet Starter |
Starter ([02.2009 - ] 12V 1.3KW (0902- )1ZRFAE,2ZRFAE) |
| 28160-0D130 |
Armature Assy, Starter |
Starter ([02.2009 - ] 12V 1.3KW (0902- )1ZRFAE,2ZRFAE) |
| 28160-0D180 |
Armature Assy, Starter |
Starter ([02.2009 - ] 12V 1.3KW (0902- )1ZRFAE,2ZRFAE) |
| 28160-37060 |
Armature Assy, Starter |
Starter ([02.2009 - ] 12V 1.3KW (0902- )1ZRFAE,2ZRFAE) |
| 28177-37050 |
Plate(For Starter Armature) |
Starter ([02.2009 - ] 12V 1.3KW (0902- )1ZRFAE,2ZRFAE) |
| 28199-37050 |
Protector, Dust Starter |
Starter ([02.2009 - ] 12V 1.3KW (0902- )1ZRFAE,2ZRFAE) |
| 28255-37050 |
Gear, Planet |
Starter ([02.2009 - ] 12V 1.3KW (0902- )1ZRFAE,2ZRFAE) |
| 90068-01017 |
New Genuine Part |
Starter ([02.2009 - ] 12V 1.3KW (0902- )1ZRFAE,2ZRFAE) |
| 90080-18070 |
NUT, WWASHER |
Starter ([02.2009 - ] 12V 1.3KW (0902- )1ZRFAE,2ZRFAE) |
| 90099-00323 |
Screw, Starter |
Starter ([02.2009 - ] 12V 1.3KW (0902- )1ZRFAE,2ZRFAE) |
| 90099-04618 |
New Genuine Part |
Starter ([02.2009 - ] 12V 1.3KW (0902- )1ZRFAE,2ZRFAE) |
| 90099-05178 |
New Genuine Part |
Starter ([02.2009 - ] 12V 1.3KW (0902- )1ZRFAE,2ZRFAE) |
| 90099-05289 |
New Genuine Part |
Starter ([02.2009 - ] 12V 1.3KW (0902- )1ZRFAE,2ZRFAE) |
| 90119-W0096 |
New Genuine Part |
Starter ([02.2009 - ] 12V 1.3KW (0902- )1ZRFAE,2ZRFAE) |
| 90179-08204 |
Nut |
Starter ([02.2009 - ] 12V 1.3KW (0902- )1ZRFAE,2ZRFAE) |
