ZGR20

Toyota VERSO · 2009 · 4,916 parts · 234 categories
ZGR20 ×

← Back to categories

4,916 items

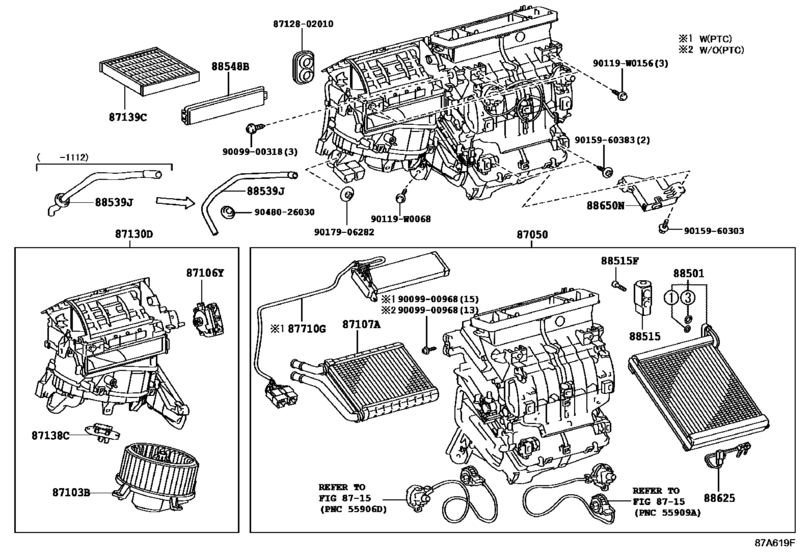

Heating & Air Conditioning - Cooler Unit ([02.2009 - 11.2012] MANUAL AIR CONDITIONER (0902-1211)RHD) 54
#OEMPart name
87050 87050-02410 Radiator Assy, Air Conditioner
87050 87050-02830 Radiator Assy, Air Conditioner
87050 87050-02850 Radiator Assy, Air Conditioner
87050 87050-02851 Radiator Assy, Air Conditioner
87050 87050-05700 Radiator Assy, Air Conditioner
87050 87050-02411 Radiator Assy, Air Conditioner
87050 87050-0F320 Radiator Assy, Air Conditioner
87103 87103-02120 Motor Sub-Assy, Blower W/fan
87103 87103-02130 Motor Sub-Assy, Blower W/fan
87106 87106-02150 Servo Sub-Assy, Damper, No.1 - DAMPER(FOR RECIRCULATION & FRESH)
87106 87106-02300 Servo Sub-Assy, Damper, No.1
87106 87106-02160 Servo Sub-Assy, Damper, No.1
87107 87107-02150 Unit Sub-Assy, Heater Radiator
87130 87130-02251 Blower Assy
87130 87130-02271 Blower Assy
87130 87130-0F110 Blower Assy
87138 87138-02090 Resistor, Blower
87139 87139-02020 Filter, Clean Air
87139 87139-0D070 Filter, Clean Air
87139 87139-50100 Clean Air Filter (Charcoal type)
88501 88501-02201 Evaporator Sub-Assy, Cooler, No.1
88501 88501-02202 Evaporator Sub-Assy, Cooler, No.1
88501 88501-02290 Evaporator Sub-Assy, Cooler, No.1
88515 88515-02150 Valve, Cooler Expansion
88515 88515-02520 Valve, Cooler Expansion
88515 88515-68010 Valve, Cooler Expansion
88515 90099-04542 Bolt(For Cooler Expansion Valve)
88515 90099-04597 Bolt(For Cooler Expansion Valve)
88515 88515-64010 Valve, Cooler Expansion
88539 88539-02100 Hose, Drain Cooler
88539 88539-02250 Hose, Drain Cooler
88548 88548-02060 Case, Air Filter
88625 88625-02110 Thermistor, Cooler, No.1
88650 88650-0F090 Amplifier Assy, Air Conditioner
88650 88650-0F111 Amplifier Assy, Air Conditioner
88650 88650-0F150 Amplifier Assy, Air Conditioner
88650 88650-0F151 Amplifier Assy, Air Conditioner
88650 88650-0F250 Amplifier Assy, Air Conditioner
88650 88650-0F290 Amplifier Assy, Air Conditioner
88650 88650-0F291 Amplifier Assy, Air Conditioner
88650 88650-0F300 Amplifier Assy, Air Conditioner
88650 88650-0F301 Amplifier Assy, Air Conditioner
88650 88650-0F320 Amplifier Assy, Air Conditioner
88650 88650-0F330 Amplifier Assy, Air Conditioner
90119 90119-W0068 Bolt
90119 90119-W0156 New Genuine Part
8712802010 87128-02010 Grommet, Heater
9009900318 90099-00318 New Genuine Part
9009900968 90099-00968 Screw(For Air Conditioner Unit)
9015960303 90159-60303 SCREW
9015960383 90159-60383 SCREW WWASHER
9015960383 90159-A0010 SCREW WWASHER TAPP
9017906282 90179-06282 New Genuine Part
9048026030 90480-26030 Grommet (For Cooler Unit Drain Hose)
