ZGR20

Toyota VERSO · 2009 · 4,916 parts · 234 categories

4,916 items

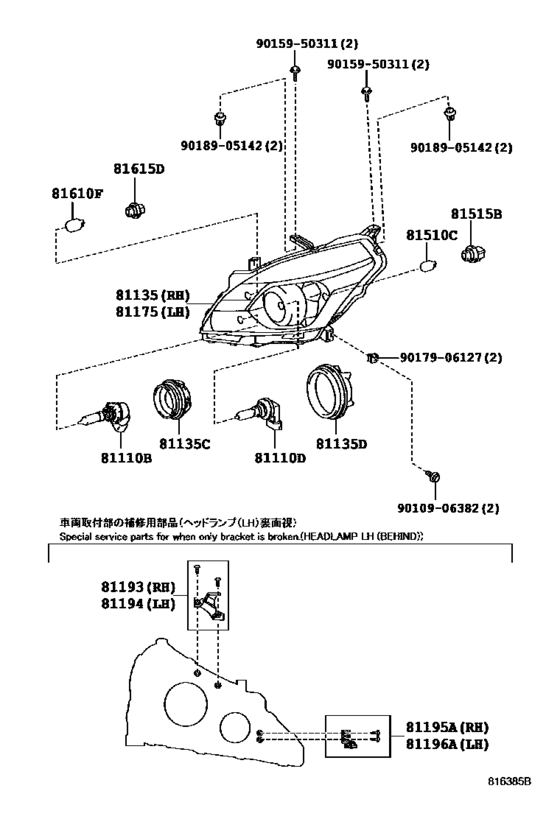

Headlamp ([11.2012 - ] HALOGEN HEADLAMP (1211- )) 43

#	OEM	Part name
81110	90981-13046	Bulb(For Headlamp, No.1) (12V, 65W)
81110	90981-13081	Bulb(For Headlamp, No.1)
81110	90981-13085	Bulb(For Headlamp, No.2)
81135	81130-0F110	Unit Assy, Headlamp, Rh
81135	81130-0F150	Unit Assy, Headlamp, Rh
81135	81130-0F151	Unit Assy, Headlamp, Rh
81135	81130-0F170	Unit Assy, Headlamp, Rh
81135	81130-0F171	Unit Assy, Headlamp, Rh
81135	81140-0F120	Unit Assy, Headlamp, Rh
81135	81140-0F121	Unit Assy, Headlamp, Rh
81135	81135-0F160	Cover, Headlamp Back, No.1
81135	90069-81023	Socket,headlamp, No.1
81135	90075-65006	Cover, Headlamp Back, No.1
81135	81135-0F150	Cover, Headlamp Back, No.2
81135	81135-3A150	Cap, Locking
81175	81070-0F120	Unit Assy, Headlamp, Lh
81175	81070-0F121	Unit Assy, Headlamp, Lh
81175	81170-0F110	Unit Assy, Headlamp, Lh
81175	81170-0F150	Unit Assy, Headlamp, Lh
81175	81170-0F151	Unit Assy, Headlamp, Lh
81175	81170-0F170	Unit Assy, Headlamp, Lh
81175	81170-0F171	Unit Assy, Headlamp, Lh
81193	81193-0F030	Retainer, Headlamp Protector, Upper Rh - HEADLAMP PROTECTOR, UPR RH
81193	81193-0F040	Retainer, Headlamp Protector, Upper Rh
81194	81194-0F030	Retainer, Headlamp Protector, Upper Lh - HEADLAMP PROTECTOR, UPR LH
81194	81194-0F040	Retainer, Headlamp Protector, Upper Lh
81195	81195-0F030	Retainer, Headlamp Protector, Lower Rh - HEADLAMP PROTECTOR, LWR RH
81195	81195-0F040	Retainer, Headlamp Protector, Lower Rh
81196	81196-0F030	Retainer, Headlamp Protector, Lower Lh - HEADLAMP PROTECTOR, LWR LH
81196	81196-0F040	Retainer, Headlamp Protector, Lower Lh
81510	90981-15021	Bulb (For Front Turn Signal Lamp)
81510	90981-WF003	Bulb, Rear Turn Signal Lamp - FRONT TURN SIGNAL LAMP
81515	81128-0F150	Socket, Front Turn Signal Lamp
81515	90069-81083	Socket, Front Turn Signal Lamp
81610	90981-13088	Bulb(For Daytime Running Lamp)
81610	90981-WB003	Bulb(For Clearance Lamp)
81615	81128-0F160	Socket, Clearance Lamp
81615	90075-60077	Clearance Lamp Socket
9010906382	90109-06382	BOLT
9015950311	90159-50311	SCREW
9015950311	90159-A0034	SCREW WWASHER
9017906127	90179-06127	Bracket, Front Licence Plate Mounting
9018905142	90189-05142	GROMMET, SCREW

OEM	Part name	Category
81070-0F120	Unit Assy, Headlamp, Lh	Headlamp ([11.2012 - ] HALOGEN HEADLAMP (1211- ))
81070-0F121	Unit Assy, Headlamp, Lh	Headlamp ([11.2012 - ] HALOGEN HEADLAMP (1211- ))
81128-0F150	Socket, Front Turn Signal Lamp	Headlamp ([11.2012 - ] HALOGEN HEADLAMP (1211- ))
81128-0F160	Socket, Clearance Lamp	Headlamp ([11.2012 - ] HALOGEN HEADLAMP (1211- ))
81130-0F110	Unit Assy, Headlamp, Rh	Headlamp ([11.2012 - ] HALOGEN HEADLAMP (1211- ))
81130-0F150	Unit Assy, Headlamp, Rh	Headlamp ([11.2012 - ] HALOGEN HEADLAMP (1211- ))
81130-0F151	Unit Assy, Headlamp, Rh	Headlamp ([11.2012 - ] HALOGEN HEADLAMP (1211- ))
81130-0F170	Unit Assy, Headlamp, Rh	Headlamp ([11.2012 - ] HALOGEN HEADLAMP (1211- ))
81130-0F171	Unit Assy, Headlamp, Rh	Headlamp ([11.2012 - ] HALOGEN HEADLAMP (1211- ))
81135-0F150	Cover, Headlamp Back, No.2	Headlamp ([11.2012 - ] HALOGEN HEADLAMP (1211- ))
81135-0F160	Cover, Headlamp Back, No.1	Headlamp ([11.2012 - ] HALOGEN HEADLAMP (1211- ))
81135-3A150	Cap, Locking	Headlamp ([11.2012 - ] HALOGEN HEADLAMP (1211- ))
81140-0F120	Unit Assy, Headlamp, Rh	Headlamp ([11.2012 - ] HALOGEN HEADLAMP (1211- ))
81140-0F121	Unit Assy, Headlamp, Rh	Headlamp ([11.2012 - ] HALOGEN HEADLAMP (1211- ))
81170-0F110	Unit Assy, Headlamp, Lh	Headlamp ([11.2012 - ] HALOGEN HEADLAMP (1211- ))
81170-0F150	Unit Assy, Headlamp, Lh	Headlamp ([11.2012 - ] HALOGEN HEADLAMP (1211- ))
81170-0F151	Unit Assy, Headlamp, Lh	Headlamp ([11.2012 - ] HALOGEN HEADLAMP (1211- ))
81170-0F170	Unit Assy, Headlamp, Lh	Headlamp ([11.2012 - ] HALOGEN HEADLAMP (1211- ))
81170-0F171	Unit Assy, Headlamp, Lh	Headlamp ([11.2012 - ] HALOGEN HEADLAMP (1211- ))
81193-0F030	Retainer, Headlamp Protector, Upper Rh - HEADLAMP PROTECTOR, UPR RH	Headlamp ([11.2012 - ] HALOGEN HEADLAMP (1211- ))
81193-0F040	Retainer, Headlamp Protector, Upper Rh	Headlamp ([11.2012 - ] HALOGEN HEADLAMP (1211- ))
81194-0F030	Retainer, Headlamp Protector, Upper Lh - HEADLAMP PROTECTOR, UPR LH	Headlamp ([11.2012 - ] HALOGEN HEADLAMP (1211- ))
81194-0F040	Retainer, Headlamp Protector, Upper Lh	Headlamp ([11.2012 - ] HALOGEN HEADLAMP (1211- ))
81195-0F030	Retainer, Headlamp Protector, Lower Rh - HEADLAMP PROTECTOR, LWR RH	Headlamp ([11.2012 - ] HALOGEN HEADLAMP (1211- ))
81195-0F040	Retainer, Headlamp Protector, Lower Rh	Headlamp ([11.2012 - ] HALOGEN HEADLAMP (1211- ))
81196-0F030	Retainer, Headlamp Protector, Lower Lh - HEADLAMP PROTECTOR, LWR LH	Headlamp ([11.2012 - ] HALOGEN HEADLAMP (1211- ))
81196-0F040	Retainer, Headlamp Protector, Lower Lh	Headlamp ([11.2012 - ] HALOGEN HEADLAMP (1211- ))
90069-81023	Socket,headlamp, No.1	Headlamp ([11.2012 - ] HALOGEN HEADLAMP (1211- ))
90069-81083	Socket, Front Turn Signal Lamp	Headlamp ([11.2012 - ] HALOGEN HEADLAMP (1211- ))
90075-60077	Clearance Lamp Socket	Headlamp ([11.2012 - ] HALOGEN HEADLAMP (1211- ))
90075-65006	Cover, Headlamp Back, No.1	Headlamp ([11.2012 - ] HALOGEN HEADLAMP (1211- ))
90109-06382	BOLT	Headlamp ([11.2012 - ] HALOGEN HEADLAMP (1211- ))
90159-50311	SCREW	Headlamp ([11.2012 - ] HALOGEN HEADLAMP (1211- ))
90159-A0034	SCREW WWASHER	Headlamp ([11.2012 - ] HALOGEN HEADLAMP (1211- ))
90179-06127	Bracket, Front Licence Plate Mounting	Headlamp ([11.2012 - ] HALOGEN HEADLAMP (1211- ))
90189-05142	GROMMET, SCREW	Headlamp ([11.2012 - ] HALOGEN HEADLAMP (1211- ))
90981-13046	Bulb(For Headlamp, No.1) (12V, 65W)	Headlamp ([11.2012 - ] HALOGEN HEADLAMP (1211- ))
90981-13081	Bulb(For Headlamp, No.1)	Headlamp ([11.2012 - ] HALOGEN HEADLAMP (1211- ))
90981-13085	Bulb(For Headlamp, No.2)	Headlamp ([11.2012 - ] HALOGEN HEADLAMP (1211- ))
90981-13088	Bulb(For Daytime Running Lamp)	Headlamp ([11.2012 - ] HALOGEN HEADLAMP (1211- ))
90981-15021	Bulb (For Front Turn Signal Lamp)	Headlamp ([11.2012 - ] HALOGEN HEADLAMP (1211- ))
90981-WB003	Bulb(For Clearance Lamp)	Headlamp ([11.2012 - ] HALOGEN HEADLAMP (1211- ))
90981-WF003	Bulb, Rear Turn Signal Lamp - FRONT TURN SIGNAL LAMP	Headlamp ([11.2012 - ] HALOGEN HEADLAMP (1211- ))
