ZGR20

Toyota VERSO · 2009 · 4,916 parts · 234 categories

← Back to categories

4,916 items

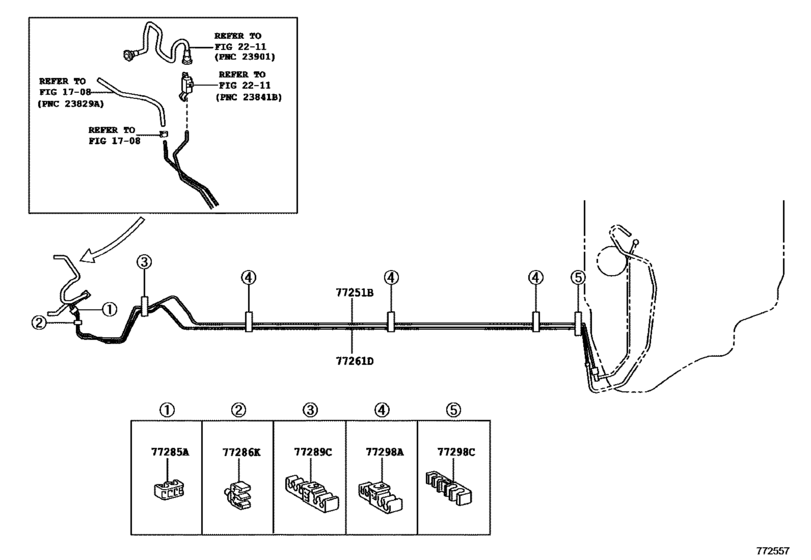

Fuel Tank & Tube ([02.2009 - ] FUEL TUBE (0902- )ZGR2#) 11

#	OEM	Part name
77251	77251-0F030	Tube, Fuel Main
77261	77261-0F020	Tube, Fuel Tank To Canister
77285	77285-02080	Support, Fuel Return And Main Tube
77285	77285-42110	Support, Fuel Return And Main Tube
77286	77286-02030	Clamp, Fuel Tube, No.2
77286	77286-20190	Clamp, Fuel Tube, No.1 - FUEL TUBE, NO.2
77289	77298-68010	Clamp, Fuel Tube, No.1
77298	77298-02050	Clamp, Fuel Tube, No.4
77298	77298-52070	Clamp, Fuel Tube, No.3
77298	77298-02040	Clamp, Fuel Tube, No.4
77298	77298-12120	Clamp, Fuel Tube, No.4

OEM	Part name	Category
77251-0F030	Tube, Fuel Main	Fuel Tank & Tube ([02.2009 - ] FUEL TUBE (0902- )ZGR2#)
77261-0F020	Tube, Fuel Tank To Canister	Fuel Tank & Tube ([02.2009 - ] FUEL TUBE (0902- )ZGR2#)
77285-02080	Support, Fuel Return And Main Tube	Fuel Tank & Tube ([02.2009 - ] FUEL TUBE (0902- )ZGR2#)
77285-42110	Support, Fuel Return And Main Tube	Fuel Tank & Tube ([02.2009 - ] FUEL TUBE (0902- )ZGR2#)
77286-02030	Clamp, Fuel Tube, No.2	Fuel Tank & Tube ([02.2009 - ] FUEL TUBE (0902- )ZGR2#)
77286-20190	Clamp, Fuel Tube, No.1 - FUEL TUBE, NO.2	Fuel Tank & Tube ([02.2009 - ] FUEL TUBE (0902- )ZGR2#)
77298-02040	Clamp, Fuel Tube, No.4	Fuel Tank & Tube ([02.2009 - ] FUEL TUBE (0902- )ZGR2#)
77298-02050	Clamp, Fuel Tube, No.4	Fuel Tank & Tube ([02.2009 - ] FUEL TUBE (0902- )ZGR2#)
77298-12120	Clamp, Fuel Tube, No.4	Fuel Tank & Tube ([02.2009 - ] FUEL TUBE (0902- )ZGR2#)
77298-52070	Clamp, Fuel Tube, No.3	Fuel Tank & Tube ([02.2009 - ] FUEL TUBE (0902- )ZGR2#)
77298-68010	Clamp, Fuel Tube, No.1	Fuel Tank & Tube ([02.2009 - ] FUEL TUBE (0902- )ZGR2#)
