ZGR20

Toyota VERSO · 2009 · 4,916 parts · 234 categories
ZGR20 ×

← Back to categories

4,916 items

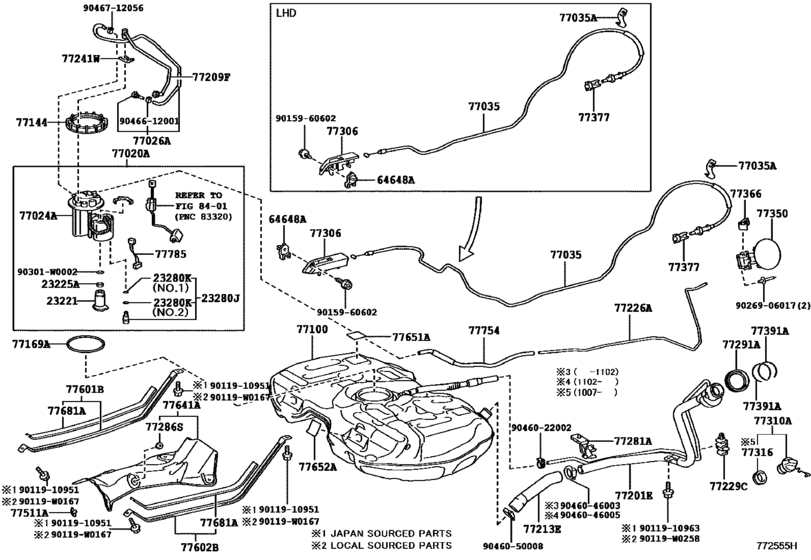

Fuel Tank & Tube ([02.2009 - 10.2013] FUEL TANK (0902-1310)ZGR2#) 71
#OEMPart name
23221 23220-0T060 Harness, Fuel Pump
23221 23220-0T061 Pump, Fuel
23221 77785-12010 Harness, Fuel Pump
23225 23225-0T010 Spacer, Fuel Pump
23280 23280-21010 Regulator Assy, Fuel Pressure
23280 90301-04013 Ring, O(For Fuel Pump)
23280 90301-15024 Ring, O(For Fuel Pump)
64648 64648-12020 Grommet, Luggage Door Lock Opener
77020 77020-0F030 Tube Assy, Fuel Suction W/pump & Gage
77020 77020-0F031 Tube Assy, Fuel Suction W/pump & Gage
77024 77024-0F030 Plate Sub-Assy, Fuel Suction
77024 77024-0F050 Plate Sub-Assy, Fuel Suction
77026 77026-0F010 Tube Sub-Assy, Fuel Evaporation, No.1
77035 77035-0F040 Cable Sub-Assy, Fuel Lid Lock Control
77035 77035-0F041 Cable Sub-Assy, Fuel Lid Lock Control
77035 90469-07005 Clamp (For Fuel Lid Lock Control Cable)
77100 77001-0F030 Tank Assy, Fuel
77144 77144-0H010 Retainer, Fuel Pump Gauge
77169 77169-0D030 Gasket, Fuel Suction Tube Set
77201 77201-0F040 Pipe Sub-Assy, Fuel Tank Filler
77201 77201-64010 Pipe Sub-Assy, Fuel Tank Filler
77209 77209-0F020 Tube Sub-Assy, Fuel Tank Main
77213 77213-0F020 Hose, Fuel Tank To Filler Pipe
77213 77213-64030 Hose, Fuel Tank To Filler Pipe
77226 77226-0F020 Tube, Fuel Tank Breather, No.6
77226 77226-64010 Tube, Fuel Tank Breather, No.6
77229 77229-12070 Clamp, Breather Tube
77241 77241-32060 Clip, Tube Joint
77281 77281-64010 Clamp, Fuel Filler Pipe
77286 77286-02070 Cushion, Fuel Tank Protector
77286 77286-12110 Cushion, Fuel Tank Protector
77291 77291-02080 Shield, Fuel Tank Filler Pipe
77291 77291-02240 Shield, Fuel Tank Filler Pipe
77306 77306-0D110 Lever Sub-Assy, Fuel Lid Lock Open
77306 77306-52030 Lever Sub-Assy, Fuel Lid Lock Open
77306 77306-52050 Lever Sub-Assy, Fuel Lid Lock Open
77310 77300-12020 Cap Assy, Fuel Tank
77310 77300-52030 Cap Assy, Fuel Tank
77316 77316-52040 Gasket, Fuel Tank Cap
77350 77350-64020 Lid Assy, Fuel Filler Opening
77366 77366-52010 Spring, Fuel Filler Opening Lid Hinge
77377 77377-0D060 Retainer, Fuel Filler Opening Lid Lock
77377 77377-12060 Retainer, Fuel Filler Opening Lid Lock
77391 77391-12020 Ring, Fuel Inlet Box
77511 77512-35140 Bracket, Fuel Tank
77601 77601-0F020 Band Sub-Assy, Fuel Tank, No.1 Rh
77601 77601-0F040 Band Sub-Assy, Fuel Tank, No.1 Rh
77602 77602-0F020 Band Sub-Assy, Fuel Tank, No.1 Lh
77602 77602-0F040 Band Sub-Assy, Fuel Tank, No.1 Lh
77641 77641-0F020 Protector, Fuel Tank, No.1
77651 77651-12070 Cushion, Fuel Tank, No.1
77652 77652-45030 Cushion, Fuel Tank, No.2
77681 77681-0F010 Seat, Fuel Tank Band
77754 77754-0F010 Hose, Charcoal Canister Outlet, No.1
77785 77785-02081 Harness, Fuel Pump
77785 77785-12020 Harness, Fuel Pump
77785 77785-12021 Harness, Fuel Pump
90119 90119-W0167 New Genuine Part
90301 90301-W0002 AUTO PART
9011910951 90119-10951 BOLT WWASHER
9011910963 90119-10963 New Genuine Part
9015960602 90159-60602 SCREW
9026906017 90269-06017 RIVET
9046022002 90460-22002 CLAMP
9046022002 90460-22001 CLAMP
9046046003 90460-46003 Clamp (For Fuel Filler Pipe)
9046046003 90460-46005 Clamp (For Fuel Filler Pipe)
9046050008 90460-50008 Clamp (For Fuel Filler Pipe)
9046612001 90466-12001 Clamp Or Clip, Hose(For Water By-Pass Hose, No.1)
9046712056 90467-12056 Clamp Or Clip(For Throttle Body Hose)
9046712056 90466-T0048 New Genuine Part
