ZGR20

Toyota VERSO · 2009 · 4,916 parts · 234 categories

← Back to categories

4,916 items

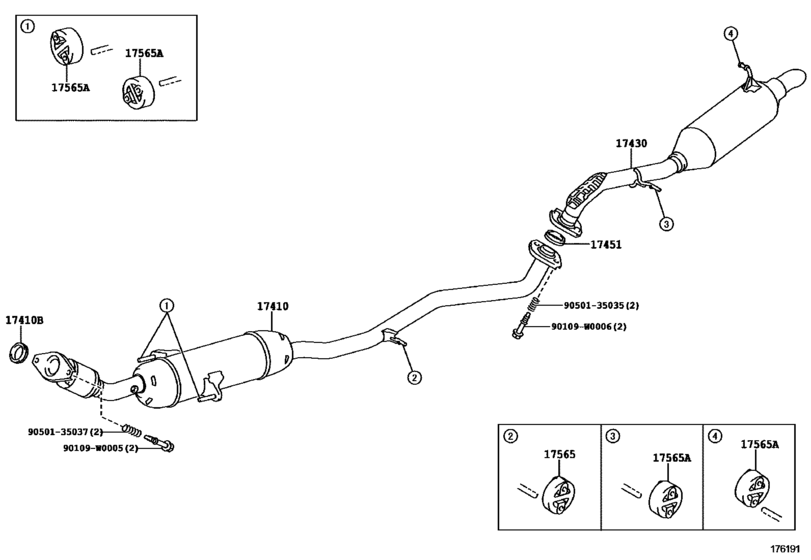

Exhaust Pipe ([02.2009 - ] (0902- )1ZRFAE,2ZRFAE) 13

#	OEM	Part name
17410	17410-0T120	Pipe Assy, Exhaust, Front
17410	17410-0TA50	Pipe Assy, Exhaust, Front
17410	17451-0R010	Gasket, Exhaust Pipe
17430	17430-0T110	Pipe Assy, Exhaust, Tail
17451	17451-0D111	Gasket, Exhaust Pipe
17451	17451-0D112	Gasket, Exhaust Pipe
17565	17565-0D100	Support, Exhaust Pipe, No.2 - EXHAUST PIPE, NO.5
17565	17565-0J031	Support, Exhaust Pipe, No.3 - EXHAUST PIPE, NO.4
17565	17565-22040	Support, Exhaust Pipe, No.1
90109	90109-W0005	BOLT
90109	90109-W0006	BOLT
9050135035	90501-35035	Spring, Exhaust Pipe
9050135037	90501-35037	Spring, Exhaust Pipe

OEM	Part name	Category
17410-0T120	Pipe Assy, Exhaust, Front	Exhaust Pipe ([02.2009 - ] (0902- )1ZRFAE,2ZRFAE)
17410-0TA50	Pipe Assy, Exhaust, Front	Exhaust Pipe ([02.2009 - ] (0902- )1ZRFAE,2ZRFAE)
17430-0T110	Pipe Assy, Exhaust, Tail	Exhaust Pipe ([02.2009 - ] (0902- )1ZRFAE,2ZRFAE)
17451-0D111	Gasket, Exhaust Pipe	Exhaust Pipe ([02.2009 - ] (0902- )1ZRFAE,2ZRFAE)
17451-0D112	Gasket, Exhaust Pipe	Exhaust Pipe ([02.2009 - ] (0902- )1ZRFAE,2ZRFAE)
17451-0R010	Gasket, Exhaust Pipe	Exhaust Pipe ([02.2009 - ] (0902- )1ZRFAE,2ZRFAE)
17565-0D100	Support, Exhaust Pipe, No.2 - EXHAUST PIPE, NO.5	Exhaust Pipe ([02.2009 - ] (0902- )1ZRFAE,2ZRFAE)
17565-0J031	Support, Exhaust Pipe, No.3 - EXHAUST PIPE, NO.4	Exhaust Pipe ([02.2009 - ] (0902- )1ZRFAE,2ZRFAE)
17565-22040	Support, Exhaust Pipe, No.1	Exhaust Pipe ([02.2009 - ] (0902- )1ZRFAE,2ZRFAE)
90109-W0005	BOLT	Exhaust Pipe ([02.2009 - ] (0902- )1ZRFAE,2ZRFAE)
90109-W0006	BOLT	Exhaust Pipe ([02.2009 - ] (0902- )1ZRFAE,2ZRFAE)
90501-35035	Spring, Exhaust Pipe	Exhaust Pipe ([02.2009 - ] (0902- )1ZRFAE,2ZRFAE)
90501-35037	Spring, Exhaust Pipe	Exhaust Pipe ([02.2009 - ] (0902- )1ZRFAE,2ZRFAE)
