Search › Model › ZGR20
ZGR20

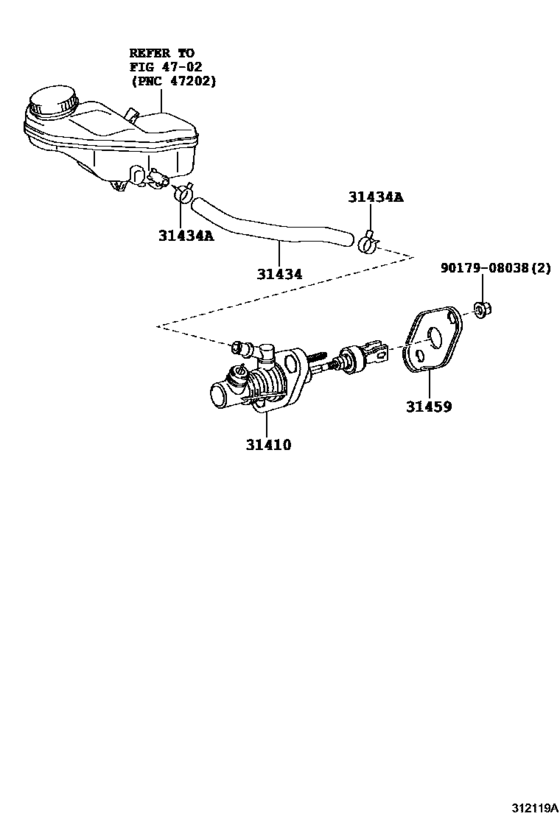

Clutch Master Cylinder ([02.2009 - ] (0902- )ZGR2#..RHD..6F) 6
| # | OEM | Part name |
|---|---|---|
| 31410 | 31420-02031 | Cylinder Assy, Clutch Master |
| 31410 | 31420-02032 | Cylinder Assy, Clutch Master |
| 31434 | 31434-02040 | Tube, Clutch Reservoir |
| 31434 | 96136-41801 | Clip(For Fuel Vapor Feed Hose, No.2) |
| 31459 | 31459-42040 | Bracket, Clutch Master Cylinder |
| 9017908038 | 90179-08038 | Nut |
| OEM | Part name | Category |
|---|---|---|
| 31420-02031 | Cylinder Assy, Clutch Master | Clutch Master Cylinder ([02.2009 - ] (0902- )ZGR2#..RHD..6F) |
| 31420-02032 | Cylinder Assy, Clutch Master | Clutch Master Cylinder ([02.2009 - ] (0902- )ZGR2#..RHD..6F) |
| 31434-02040 | Tube, Clutch Reservoir | Clutch Master Cylinder ([02.2009 - ] (0902- )ZGR2#..RHD..6F) |
| 31459-42040 | Bracket, Clutch Master Cylinder | Clutch Master Cylinder ([02.2009 - ] (0902- )ZGR2#..RHD..6F) |
| 90179-08038 | Nut | Clutch Master Cylinder ([02.2009 - ] (0902- )ZGR2#..RHD..6F) |
| 96136-41801 | Clip(For Fuel Vapor Feed Hose, No.2) | Clutch Master Cylinder ([02.2009 - ] (0902- )ZGR2#..RHD..6F) |
