ZGR20

Toyota VERSO · 2009 · 4,916 parts · 234 categories
ZGR20 ×

← Back to categories

4,916 items

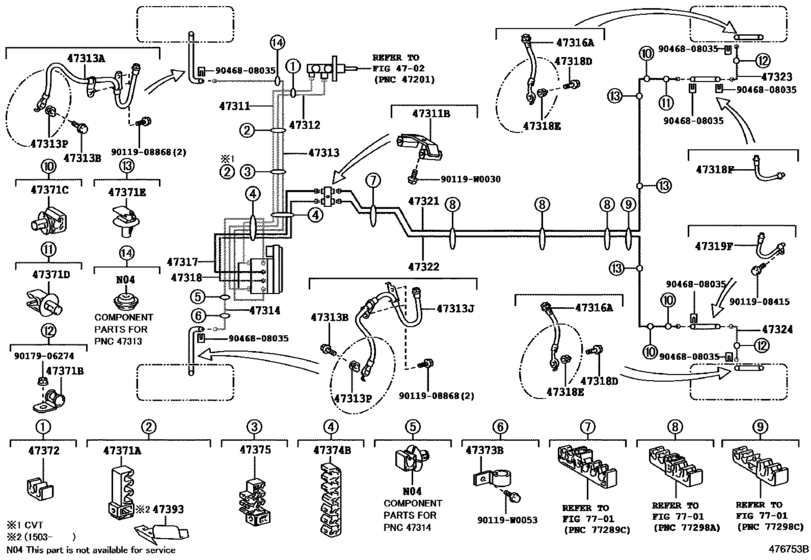

Brake Tube & Clamp ([02.2009 - 03.2015] (0902-1503)RHD) 76
#OEMPart name
47311 47311-0F110 Tube, Front Brake, No.1
47311 47311-0F170 Tube, Front Brake, No.1
47311 90412-10255 Way, No.1(For Front Brake Tube)
47311 90412-10285 Way, No.1(For Front Brake Tube)
47311 47311-0F100 Tube, Front Brake, No.1
47312 47312-02B30 Tube, Front Brake, No.2
47312 47312-0F110 Tube, Front Brake, No.2
47312 47312-0F100 Tube, Front Brake, No.2
47313 47313-02C90 Tube, Front Brake, No.3
47313 47313-0F110 Tube, Front Brake, No.3
47313 47313-0F111 Tube, Front Brake, No.3
47313 90947-W2012 Hose, Flexible, No.1(For Front)
47313 90947-W2042 Hose, Flexible, No.1(For Front)
47313 90401-10058 Bolt, Union(For Front Flexible Hose)
47313 90947-W2013 Hose, Flexible, No.2(For Front)
47313 90947-W2043 Hose, Flexible, No.2(For Front)
47313 47389-50020 Gasket(For Front Flexible Hose)
47313 47313-0F100 Tube, Front Brake, No.3
47314 47314-02C40 Tube, Front Brake, No.4
47314 47314-0F110 Tube, Front Brake, No.4
47314 47314-0F111 Tube, Front Brake, No.4
47314 47314-0F112 Tube, Front Brake, No.4
47314 47314-0F100 Tube, Front Brake, No.4
47314 47314-0F101 Tube, Front Brake, No.4
47316 90947-W2016 Hose, Flexible(For Rear Brake Tube)
47316 90947-W2044 Hose, Flexible(For Rear Brake Tube)
47317 47317-02B80 Tube, Front Brake, No.7
47317 47317-0F110 Tube, Front Brake, No.7
47317 47317-0F111 Tube, Front Brake, No.7
47317 47317-0F100 Tube, Front Brake, No.7
47318 47318-02C00 Tube, Front Brake, No.8
47318 47318-0F110 Tube, Front Brake, No.8
47318 47318-0F111 Tube, Front Brake, No.8
47318 90947-W2015 Hose, Flexible(For Rear Brake Tube) - FLEXIBLE(FOR REAR RH)
47318 90947-W2045 Hose, Flexible(For Rear Rh)
47318 47318-0F100 Tube, Front Brake, No.8
47319 90947-W2014 Hose, Flexible(For Rear Brake Tube) - FLEXIBLE(FOR REAR LH)
47319 90947-W2046 Hose, Flexible(For Rear Lh)
47321 47321-0F020 Tube, Rear Brake, No.1
47321 47321-0F030 Tube, Rear Brake, No.1
47321 47321-0F031 Tube, Rear Brake, No.1
47322 47322-0F020 Tube, Rear Brake, No.2
47322 47322-0F030 Tube, Rear Brake, No.2
47322 47322-0F031 Tube, Rear Brake, No.2
47323 47323-02080 Tube, Rear Brake, No.3
47323 47323-0F020 Tube, Rear Brake, No.3
47323 47323-0F030 Tube, Rear Brake, No.3
47324 47324-02080 Tube, Rear Brake, No.4
47324 47324-0F020 Tube, Rear Brake, No.4
47324 47324-0F030 Tube, Rear Brake, No.4
47371 47371-12280 Clamp, Brake Tube, No.1
47371 90949-01E24 Clamp, Brake Tube, No.3
47371 90461-10837 Clamp, Brake Tube, No.6
47371 90461-10843 Clamp, Tube
47371 90949-01D17 Clamp(For Clutch Master Cylinder Tube)
47371 90949-01D29 Clamp(For Clutch Tube)
47371 90949-01D46 Clamp, Brake Tube, No.7
47371 47371-05010 Clamp, Brake Tube, No.1
47372 90464-00884 Clamp, Brake Tube, No.2
47372 90949-01E23 Clamp, Brake Tube, No.2
47372 90464-00868 Clamp, Brake Tube, No.1
47373 90461-10781 Clamp, Brake Tube, No.6
47374 90464-00895 Clamp, Brake Tube, No.2 - BRAKE TUBE, NO.4
47374 90949-01E22 Clamp, Brake Tube, No.1
47374 90464-00890 Clamp, Brake Tube, No.1
47375 90949-01D42 Clamp, Brake Tube, No.6 - BRAKE TUBE, NO.5
47375 90949-01E20 Clamp, Brake Tube, No.3
47375 90949-01D45 Clamp, Brake Tube, No.7
47393 47393-20030 Insulator, Brake Tube Heat
90119 90119-W0030 New Genuine Part
90119 90119-W0053 New Genuine Part
9011908415 90119-08415 New Genuine Part
9011908868 90119-08868 BOLT WWASHER
9017906274 90179-06274 Nut
9046808035 90468-08035 CLIP
9046808035 90468-A0007 New Genuine Part
