ZGM15

Toyota ISIS · 2009 · 5,197 parts · 217 categories
ZGM15 ×

← Back to categories

5,197 items

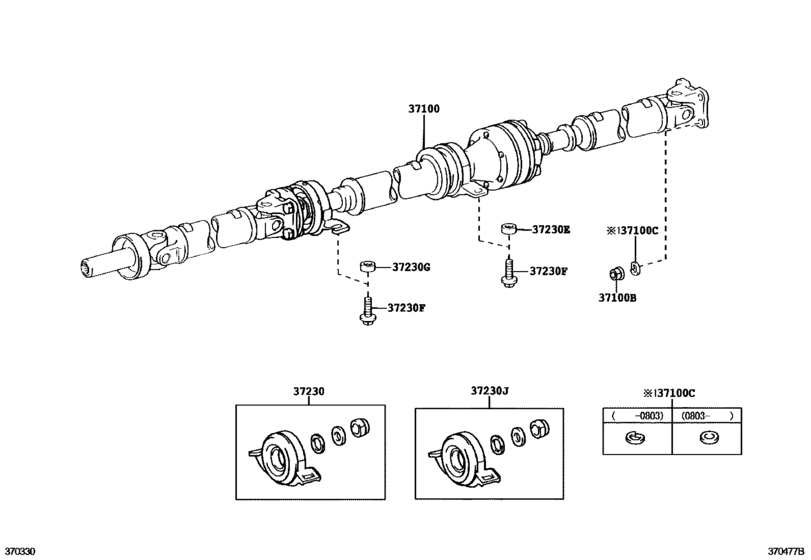

Propeller Shaft & Universal Joint ([09.2004 - ] (0409- )ANM15,ZGM15) 10
#OEMPart name
37100 37100-44050 Shaft Assy, Propeller W/center Bearing
37100 90179-08268 Nut, No.1 (For Propeller Shaft & Differential Setting)
37100 90560-10102 Washer, No.1 (For Propeller Shaft & Differential Setting)
37230 37230-39035 Bearing Assy, Center Support, No.1
37230 90201-10085 Washer, No.1 (For Center Support Bearing)
37230 90119-10444 Bolt, No.1 (For Center Support Bearing)
37230 90201-10081 Washer, No.1 (For Center Support Bearing)
37230 90201-10083 Washer, No.1 (For Center Support Bearing)
37230 90201-10084 Washer, No.1 (For Center Support Bearing)
37230 90201-10095 Washer, No.1 (For Center Support Bearing)
