ZGM15

Toyota ISIS · 2009 · 5,197 parts · 217 categories
ZGM15 ×

← Back to categories

5,197 items

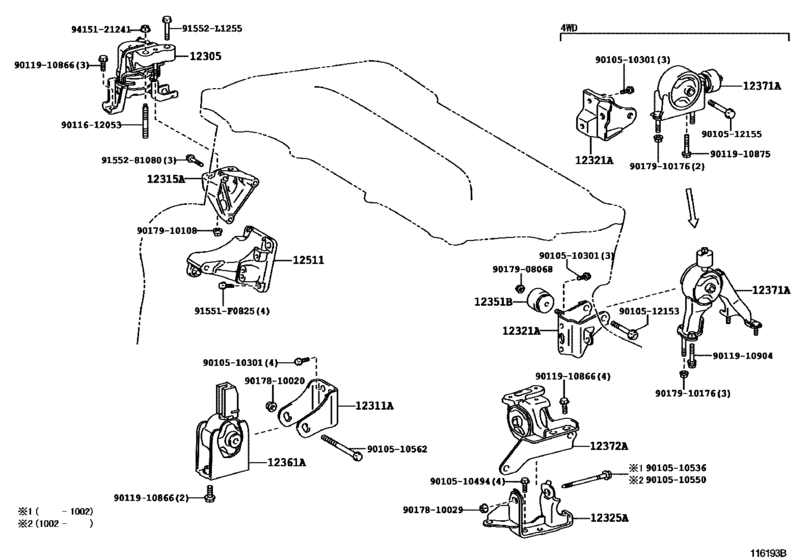

Mounting ([09.2009 - 06.2012] (0909-1206)2ZRFAE) 31
#OEMPart name
12305 12305-37230 Insulator Sub-Assy, Engine Mounting, Rh
12311 12311-37080 Bracket, Engine Mounting, Front(For Transverse Engine)
12315 12315-37030 Bracket, Engine Mounting, Rh(For Transverse Engine)
12321 12321-37020 Bracket, Engine Mounting, Rear(For Transverse Engine)
12325 12325-37020 Bracket, Engine Mounting, Lh(For Transverse Engine)
12361 12361-37060 Insulator, Engine Mounting, Front(For Transverse Engine)
12371 12371-21270 Insulator, Engine Mounting, Rear
12371 12371-21300 Insulator, Engine Mounting, Rear - ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE)
12372 12372-37010 Insulator, Engine Mounting, Lh(For Transverse Engine)
12511 12501-37010 Bracket Sub-Assy, Alternator
12511 12511-37010 Bracket, Alternator, No.1
91551 91551-F0825 BOLT FLANGE
91552 91552-L1255 New Genuine Part
9010510301 90105-10301 BOLT WASHER BASED
9010510494 90105-10494 BOLT FLANGE
9010510536 90105-10536 New Genuine Part
9010510550 90105-10550 BOLT FLANGE
9010510562 90105-10562 Bolt, No.2(For Alternator)
9010512153 90105-12153 BOLT
9010512155 90105-12155 BOLT WASHER BASED
9011612053 90116-12053 BOLT STUD
9011910866 90119-10866 BOLT WWASHER
9011910875 90119-10875 New Genuine Part
9011910904 90119-10904 BOLT WWASHER
9017810020 90178-10020 New Genuine Part
9017810029 90178-10029 Nut(For Front Suspension Support)
9017908068 90179-08068 NUT
9017910108 90179-10108 NUT
9017910176 90179-10176 NUT
9155281080 91552-81080 Bolt(For Alternator)
9415121241 94151-21241 Nut(For Front Stabilizer Link)
