ZGM15

Toyota ISIS · 2009 · 5,197 parts · 217 categories
ZGM15 ×

← Back to categories

5,197 items

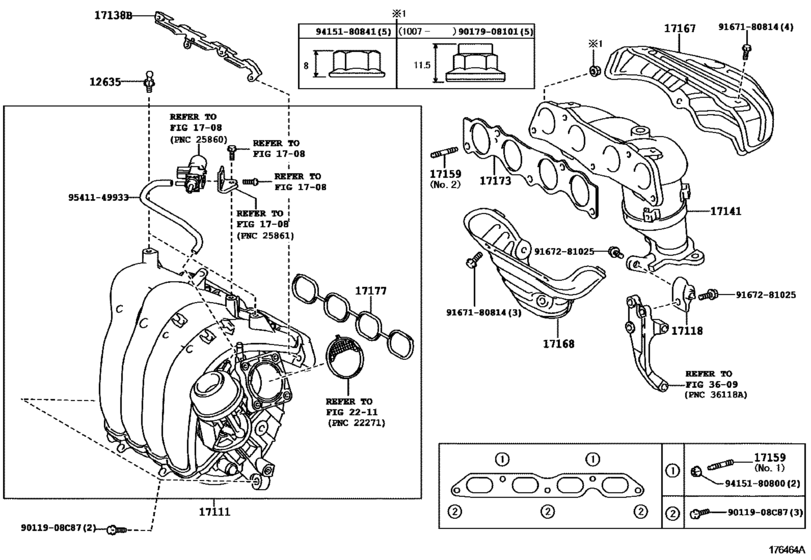

Manifold ([09.2009 - 06.2012] (0909-1206)2ZRFAE..ZGM15) 22
#OEMPart name
12635 90109-06385 Bolt , V-Bank Cover, No.1
17111 17120-37011 Manifold, Intake
17111 17120-37031 Manifold, Intake
17118 17118-37030 Stay, Manifold
17138 17138-37010 Stay, Intake Manifold
17138 17138-37011 Stay, Intake Manifold
17141 17141-37120 Manifold, Exhaust
17141 17141-37160 Manifold, Exhaust
17159 90126-08026 Bolt, Stud(For Intake Manifold To Cylinder Head)
17159 90126-08052 Bolt, Stud(For Oil Pan)
17167 17167-37031 Insulator, Exhaust Manifold Heat, No.1
17168 17168-37050 Insulator, Exhaust Manifold Heat, No.2
17173 17173-37010 Gasket, Exhaust Manifold To Head
17177 17177-37030 Gasket, Intake Manifold To Head, No.1
9011908 90119-08C87 New Genuine Part
9017908101 90179-08101 NUT
9167180814 91671-80814 BOLT FLANGE WWASER
9167180814 90119-A0165 New Genuine Part
9167281025 91672-81025 Bolt, Center Support Bearing Bracket
9415180800 94151-80800 Nut (For Transmission Control Cable)
9415180841 94151-80841 FLANGE NUT
9541149933 95411-49933 Hose, Vacuum, No.1 (For Front Drive Shift)
