ZGM15

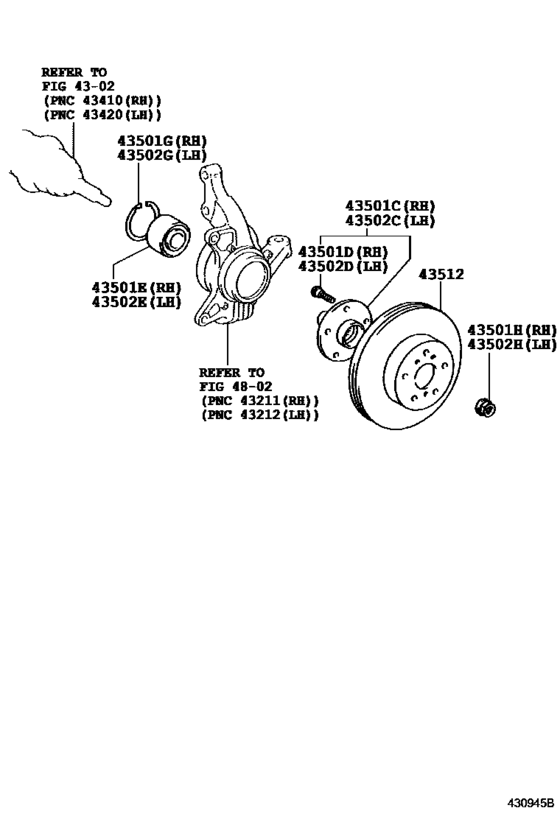

Front Axle Hub ([09.2004 - ] (0409- )) 8
| # | OEM | Part name |
|---|---|---|
| 43501 | 43502-42020 | Hub Sub-Assy, Front Axle, Rh |
| 43501 | 90942-02049 | Bolt, Hub |
| 43501 | 90942-02070 | Bolt, Hub |
| 43501 | 90942-02082 | Bolt, Hub |
| 43501 | 90369-43009 | Bearing (For Front Axle Hub) |
| 43501 | 90521-88001 | Ring, Snap (For Rear Axle Shaft) |
| 43501 | 90177-22001 | Nut (For Axle Shaft) |
| 43512 | 43512-44011 | Disc, Front |
| OEM | Part name | Category |
|---|---|---|
| 43502-42020 | Hub Sub-Assy, Front Axle, Rh | Front Axle Hub ([09.2004 - ] (0409- )) |
| 43512-44011 | Disc, Front | Front Axle Hub ([09.2004 - ] (0409- )) |
| 90177-22001 | Nut (For Axle Shaft) | Front Axle Hub ([09.2004 - ] (0409- )) |
| 90369-43009 | Bearing (For Front Axle Hub) | Front Axle Hub ([09.2004 - ] (0409- )) |
| 90521-88001 | Ring, Snap (For Rear Axle Shaft) | Front Axle Hub ([09.2004 - ] (0409- )) |
| 90942-02049 | Bolt, Hub | Front Axle Hub ([09.2004 - ] (0409- )) |
| 90942-02070 | Bolt, Hub | Front Axle Hub ([09.2004 - ] (0409- )) |
| 90942-02082 | Bolt, Hub | Front Axle Hub ([09.2004 - ] (0409- )) |
