| 78186-36030 |
Clamp, Accelerator Control Cable, No.3 |

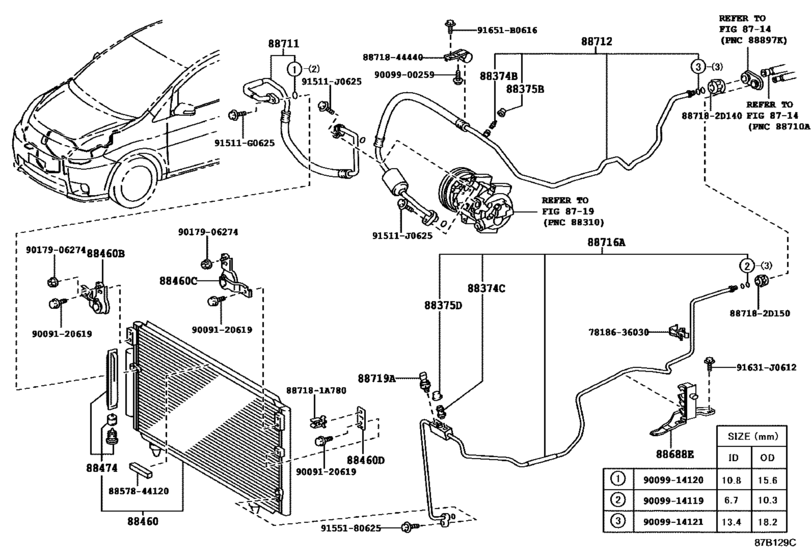

Heating & Air Conditioning - Cooler Piping ([09.2009 - ] ﾌﾛﾝﾄ (0909- )ZGM11,15 ; (0909- )ZGM10..L,PLTNA ; (1108- )ZGM10..G) |
| 88374-30010 |
Valve, Service, No.1 |
Heating & Air Conditioning - Cooler Piping ([09.2009 - ] ﾌﾛﾝﾄ (0909- )ZGM11,15 ; (0909- )ZGM10..L,PLTNA ; (1108- )ZGM10..G) |
| 88375-30280 |
Cap, Service Valve (For Cooler Pipe) |
Heating & Air Conditioning - Cooler Piping ([09.2009 - ] ﾌﾛﾝﾄ (0909- )ZGM11,15 ; (0909- )ZGM10..L,PLTNA ; (1108- )ZGM10..G) |
| 88375-30290 |
Cap, Service Valve (For Cooler Pipe) |
Heating & Air Conditioning - Cooler Piping ([09.2009 - ] ﾌﾛﾝﾄ (0909- )ZGM11,15 ; (0909- )ZGM10..L,PLTNA ; (1108- )ZGM10..G) |
| 88409-44010 |
Bracket, Cooler Condenser, No.1 |
Heating & Air Conditioning - Cooler Piping ([09.2009 - ] ﾌﾛﾝﾄ (0909- )ZGM11,15 ; (0909- )ZGM10..L,PLTNA ; (1108- )ZGM10..G) |
| 88409-44020 |
Bracket, Cooler Condenser, No.2 |
Heating & Air Conditioning - Cooler Piping ([09.2009 - ] ﾌﾛﾝﾄ (0909- )ZGM11,15 ; (0909- )ZGM10..L,PLTNA ; (1108- )ZGM10..G) |
| 88460-44570 |
Condenser Assy, Cooler |
Heating & Air Conditioning - Cooler Piping ([09.2009 - ] ﾌﾛﾝﾄ (0909- )ZGM11,15 ; (0909- )ZGM10..L,PLTNA ; (1108- )ZGM10..G) |
| 88474-12030 |
Dryer, Cooler |
Heating & Air Conditioning - Cooler Piping ([09.2009 - ] ﾌﾛﾝﾄ (0909- )ZGM11,15 ; (0909- )ZGM10..L,PLTNA ; (1108- )ZGM10..G) |
| 88578-44120 |
Paking, Cooler Air Duct |
Heating & Air Conditioning - Cooler Piping ([09.2009 - ] ﾌﾛﾝﾄ (0909- )ZGM11,15 ; (0909- )ZGM10..L,PLTNA ; (1108- )ZGM10..G) |
| 88688-44260 |
Bracket, Cooler Condenser, No.3 |
Heating & Air Conditioning - Cooler Piping ([09.2009 - ] ﾌﾛﾝﾄ (0909- )ZGM11,15 ; (0909- )ZGM10..L,PLTNA ; (1108- )ZGM10..G) |
| 88688-44280 |
Bracket, Cooler Refrigerant Hose, No.1 |
Heating & Air Conditioning - Cooler Piping ([09.2009 - ] ﾌﾛﾝﾄ (0909- )ZGM11,15 ; (0909- )ZGM10..L,PLTNA ; (1108- )ZGM10..G) |
| 88711-44370 |
Hose, Cooler Refrigerant Discharge, No.1 |
Heating & Air Conditioning - Cooler Piping ([09.2009 - ] ﾌﾛﾝﾄ (0909- )ZGM11,15 ; (0909- )ZGM10..L,PLTNA ; (1108- )ZGM10..G) |
| 88712-44660 |
Hose, Cooler Refrigerant Suction, No.1 |
Heating & Air Conditioning - Cooler Piping ([09.2009 - ] ﾌﾛﾝﾄ (0909- )ZGM11,15 ; (0909- )ZGM10..L,PLTNA ; (1108- )ZGM10..G) |
| 88716-44870 |
Pipe, Cooler Refrigerant Liquid, A |
Heating & Air Conditioning - Cooler Piping ([09.2009 - ] ﾌﾛﾝﾄ (0909- )ZGM11,15 ; (0909- )ZGM10..L,PLTNA ; (1108- )ZGM10..G) |
| 88718-1A780 |
Pipe, Cooler Refrigerant Suction, No.2 |
Heating & Air Conditioning - Cooler Piping ([09.2009 - ] ﾌﾛﾝﾄ (0909- )ZGM11,15 ; (0909- )ZGM10..L,PLTNA ; (1108- )ZGM10..G) |
| 88718-2D140 |
Clamp(For Cooler Refrigerant Pipe), No.1 |
Heating & Air Conditioning - Cooler Piping ([09.2009 - ] ﾌﾛﾝﾄ (0909- )ZGM11,15 ; (0909- )ZGM10..L,PLTNA ; (1108- )ZGM10..G) |
| 88718-2D150 |
Clamp(For Cooler Refrigerant Pipe), No.1 |
Heating & Air Conditioning - Cooler Piping ([09.2009 - ] ﾌﾛﾝﾄ (0909- )ZGM11,15 ; (0909- )ZGM10..L,PLTNA ; (1108- )ZGM10..G) |
| 88718-44440 |
Pipe, Cooler Refrigerant Suction, No.2 |
Heating & Air Conditioning - Cooler Piping ([09.2009 - ] ﾌﾛﾝﾄ (0909- )ZGM11,15 ; (0909- )ZGM10..L,PLTNA ; (1108- )ZGM10..G) |
| 88719-33020 |
Sensor, Airconditioner Pressure |
Heating & Air Conditioning - Cooler Piping ([09.2009 - ] ﾌﾛﾝﾄ (0909- )ZGM11,15 ; (0909- )ZGM10..L,PLTNA ; (1108- )ZGM10..G) |
| 90091-20619 |
BOLT |
Heating & Air Conditioning - Cooler Piping ([09.2009 - ] ﾌﾛﾝﾄ (0909- )ZGM11,15 ; (0909- )ZGM10..L,PLTNA ; (1108- )ZGM10..G) |
| 90099-00259 |
New Genuine Part |
Heating & Air Conditioning - Cooler Piping ([09.2009 - ] ﾌﾛﾝﾄ (0909- )ZGM11,15 ; (0909- )ZGM10..L,PLTNA ; (1108- )ZGM10..G) |
| 90099-14119 |
Ring, O(For Cooler Refrigerant Liquid Pipe) |
Heating & Air Conditioning - Cooler Piping ([09.2009 - ] ﾌﾛﾝﾄ (0909- )ZGM11,15 ; (0909- )ZGM10..L,PLTNA ; (1108- )ZGM10..G) |
| 90099-14119-TH |
O RING |
Heating & Air Conditioning - Cooler Piping ([09.2009 - ] ﾌﾛﾝﾄ (0909- )ZGM11,15 ; (0909- )ZGM10..L,PLTNA ; (1108- )ZGM10..G) |
| 90099-14120 |
O-Ring, Cooler Evaporator No.1(Discharge) |
Heating & Air Conditioning - Cooler Piping ([09.2009 - ] ﾌﾛﾝﾄ (0909- )ZGM11,15 ; (0909- )ZGM10..L,PLTNA ; (1108- )ZGM10..G) |
| 90099-14121 |
O-Ring, Cooler Evaporator No.1(Suction) |
Heating & Air Conditioning - Cooler Piping ([09.2009 - ] ﾌﾛﾝﾄ (0909- )ZGM11,15 ; (0909- )ZGM10..L,PLTNA ; (1108- )ZGM10..G) |
| 90179-06274 |
Nut |
Heating & Air Conditioning - Cooler Piping ([09.2009 - ] ﾌﾛﾝﾄ (0909- )ZGM11,15 ; (0909- )ZGM10..L,PLTNA ; (1108- )ZGM10..G) |
| 91511-G0625 |
BOLT FLANGE |
Heating & Air Conditioning - Cooler Piping ([09.2009 - ] ﾌﾛﾝﾄ (0909- )ZGM11,15 ; (0909- )ZGM10..L,PLTNA ; (1108- )ZGM10..G) |
| 91511-J0625 |
Bolt(For Cylinder Head Cover) |
Heating & Air Conditioning - Cooler Piping ([09.2009 - ] ﾌﾛﾝﾄ (0909- )ZGM11,15 ; (0909- )ZGM10..L,PLTNA ; (1108- )ZGM10..G) |
| 91551-80625 |
Bolt(For Camshaft Housing Set) |
Heating & Air Conditioning - Cooler Piping ([09.2009 - ] ﾌﾛﾝﾄ (0909- )ZGM11,15 ; (0909- )ZGM10..L,PLTNA ; (1108- )ZGM10..G) |
| 91631-J0612 |
BRACKET |
Heating & Air Conditioning - Cooler Piping ([09.2009 - ] ﾌﾛﾝﾄ (0909- )ZGM11,15 ; (0909- )ZGM10..L,PLTNA ; (1108- )ZGM10..G) |
| 91651-B0616 |
BOLT WWASHER |
Heating & Air Conditioning - Cooler Piping ([09.2009 - ] ﾌﾛﾝﾄ (0909- )ZGM11,15 ; (0909- )ZGM10..L,PLTNA ; (1108- )ZGM10..G) |
