ZGE22

Toyota WISH · 2009 · 3,881 parts · 378 categories
ZGE22 ×

← Back to categories

3,881 items

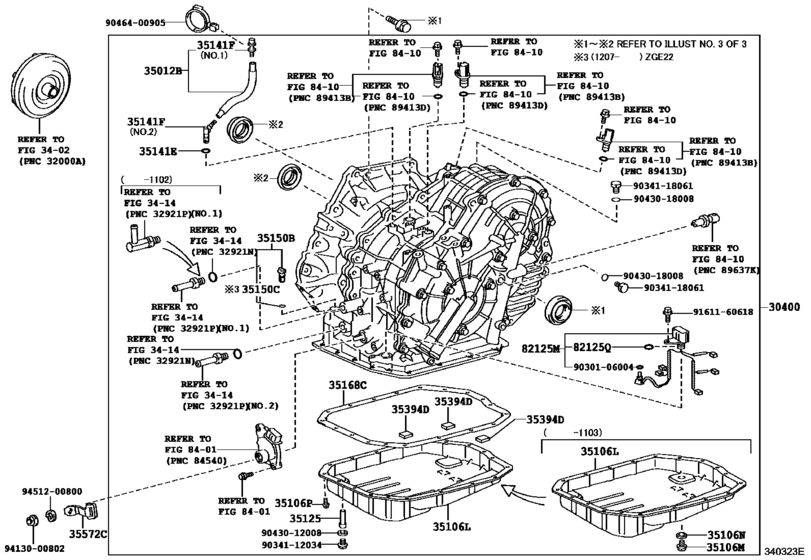

Transaxle Assy(Cvt) ([06.2010 - ] K111 (1006- )ZGE21,22) 118
#OEMPart name
30400 30400-20010 Transaxle Assy, Continuously Variable
30400 30400-20011 Transaxle Assy, Continuously Variable
30400 30400-20012 Transaxle Assy, Continuously Variable
30400 91512-61045 Bolt
30400 90311-45025 Seal, Type T Oil(For Cvt Oil Pump)
30400 90311-45027 Seal, Type T Oil(For Cvt Oil Pump)
34736 34736-44010 Race, Thrust Bearing Underdrive, No.2
34736 34736-44011 Race, Thrust Bearing Underdrive, No.2
35068 35068-28020 Spring Sub-Assy, Reverse Brake Return
35105 90105-08071 Bolt (For Transaxle Rear Cover Setting)
35105 90105-08234 Bolt(For Transaxle Housing & Case Set)
35105 91551-00830 Bolt(For Transaxle Housing & Case Set)
35106 35106-44021 Pan Sub-Assy, Transaxle Oil(Cvt)
35106 35106-44024 Pan Sub-Assy, Transaxle Oil(Cvt)
35106 35125-44071 Tube, Transmission Oil Filler, No.1
35106 35106-44022 Pan Sub-Assy, Transaxle Oil(Cvt)
35106 90341-18016 Plug, W/head Straight Screw(For Transaxle Housing & Case)
35106 90430-18008 Gasket
35106 90430-T0021 Gasket(For Manual Transmission Filler Plug)
35106 90119-06173 Bolt, Stud (For Automatic Transmission Oil Pan Setting)
35125 35125-44070 Tube, Transmission Oil Filler, No.1
35141 90301-06005 Ring, O (For Breather Plug)
35141 90930-03149 Plug Sub-Assy, Breather(For Transmission)
35141 90930-03164 Plug, Breather(For Transaxle)
35145 35145-21010 Gasket, Transaxle Case
35145 35145-33010 Gasket, Transaxle Case
35150 35150-44010 Plug(For Transmission Case)
35150 35150-48010 Plug, Transaxle Hole
35150 90301-09173 Ring, O(For Transmission Oil Filler Tube)
35168 35168-20010 Gasket, Transaxle Oil Pan(Cvt)
35240 35240-20010 Solenoid Assy, Transmission 3Way, No.1
35240 35240-44010 Solenoid Assy, Transmission 3Way, No.1
35260 35260-44010 Solenoid Assy, Sheave Control
35270 35270-44010 Solenoid Assy, Transmission 3Way Lock Up
35330 35330-0W040 Strainer Assy, Oil
35394 35394-30011 Magnet, Oil Cleaner (For Transmission)
35409 35409-44010 Spring Sub-Assy, Manual Detent
35410 35410-20571 Body Assy, Transmission Valve
35482 35482-44010 Clamp, Temperature Sensor
35501 35501-63011 Rod Sub-Assy, Parking Lock
35501 35501-63012 Rod Sub-Assy, Parking Lock
35505 35505-44030 Lever Sub-Assy, Manual Valve
35556 35556-63010 Shaft, Parking Lock Pawl
35557 35557-28030 Pawl, Parking Lock
35561 35561-63010 Shaft, Manual Valve Lever
35572 35572-42030 Lever, Transmission Control Shaft
35593 35593-63010 Sleeve, Cam Guide
35598 35598-63010 Sleeve, Parking Lock
35599 35599-44010 Cover, Manual Detent Spring
35603 35603-44020 Spring Sub-Assy, Forward Clutch Return
35610 35610-44030 Clutch Assy, Forward Multiple Disc
35610 90520-48011 Ring, Snap (For Forward Multiple Disc Clutch)
35610 90520-99091 Ring, Snap (For Forward Multiple Disc Clutch)
35610 90520-99092 Ring, Snap (For Forward Multiple Disc Clutch)
35610 90301-56007 Ring, O (For Underdrive Clutch Piston)
35610 90301-99110 Ring, O (For Brake Piston Outer)
35610 90301-99199 Ring, O (For Forward Multiple Disc Clutch)
35612 35612-28020 Piston, Forward Clutch
35623 35623-28040 Piston, Reverse Brake
35623 90301-99084 Ring, O (For Underdrive Brake Piston)
35623 90301-99126 Ring, O (For Brake Piston No.4)
35623 90520-99060 Ring, Snap (For Reverse Brake Piston)
35633 35633-28020 Disc, Clutch (For Forward Multiple Disc Clutch)
35634 35634-28020 Plate, Clutch, No.1(For Forward Multiple Disc Clutch)
35634 35634-28040 Plate, Clutch, No.1(For Forward Multiple Disc Clutch)
35634 35634-28050 Plate, Clutch, No.1(For Forward Multiple Disc Clutch)
35668 35668-28010 Balancer, Clutch, No.1
35671 35671-28010 Plate, Brake Cushion
35672 35672-44020 Plate, Clutch Cushion
35676 35676-28150 Flange, Brake
35676 90520-99061 Ring, Snap (For Brake Flange)
35681 35681-28020 Disc, Brake, No.1
35691 35691-28020 Plate, Brake, No.1
35701 90374-26006 Bearing, Thrust Needle Roller (For Input Shaft)
35706 35706-28010 Gear Sub-Assy, Planetary Sun
35706 90374-17001 Bearing, Thrust Needle Roller(For Planetary Gear Front)
35712 35712-32010 Ring, Input Shaft Oil Seal
35720 35720-28060 Gear Assy, Planetary
35737 35737-28030 Washer, Planetary Carrier Thrust
35737 35737-28040 Washer, Planetary Carrier Thrust
35743 35743-44010 Gear, Planetary Ring
35747 35748-63010 Ring, Sheave Shaft Oil Seal
35758 35758-44010 Gear, Reduction Drive
35758 35758-44011 Gear, Reduction Drive
35758 90365-42004 Bearing, Cylindrical Roller (For Reduction Drive Gear)
35758 90365-42005 Bearing, Cylindrical Roller (For Reduction Drive Gear)
35758 90365-55002 Bearing, Cylindrical Roller (For Reduction Drive Gear)
35758 90374-42010 Bearing, Thrust Needle Roller (For Reduction Drive Gear)
35758 90374-42013 Bearing, Thrust Needle Roller (For Reduction Drive Gear)
35758 90374-42014 Bearing, Thrust Needle Roller (For Reduction Drive Gear)
35758 90374-42015 Bearing, Thrust Needle Roller (For Reduction Drive Gear)
35758 90374-55001 Bearing, Thrust Needle Roller (For Reduction Drive Gear)
35788 35789-63010 Race, Thrust Bearing
35788 35789-63020 Race, Thrust Bearing
35788 35789-63031 Race, Thrust Bearing
82125 82125-44020 Wire, Transmission
82125 90301-21009 Ring, O(For Transmission Wire)
9010506049 90105-06049 Bolt(For Transmission Case No.2 Plate)
9010506064 90105-06064 New Genuine Part
9010506070 90105-06070 New Genuine Part
9010506224 90105-06224 New Genuine Part
9010506252 90105-06252 Bolt(For Cylinder Head Cover)
9010506286 90105-06286 New Genuine Part
9025010017 90250-10017 Pin, Straight(For Clutch Housing Set)
9025404011 90254-04011 Pin, Slotted Spring (For Transfer Manual Valve Lever)
9030106004 90301-06004 Ring, O No.3(For Transmission Solenoid)
9034112034 90341-12034 Plug Sub-Assy, Drain (Atm)
9034118061 90341-18061 Plug, Hole (CVT TC)
9043012008 90430-12008 Gasket (For Shift Inter Lock Plate)
9046400905 90464-00905 New Genuine Part
9052409001 90524-09001 Spring, Retainer (For Manual Valve Lever Shaft)
9056020006 90560-20006 Spacer (For Manual Valve Lever)
9094903102 90949-03102 New Genuine Part
9155180830 91551-80830 Bolt, Compressor, No.2
9161160618 91611-60618 Bolt(For Oil Receiver Pipe)
9413000802 94130-00802 Nut, No.1 (For Center Support Bearing)
9413000802 90170-A0001 New Genuine Part
9451200800 94512-00800 Washer, No.1 (For Propeller Shaft & Differential Setting)
