ZGE20

Toyota WISH · 2009 · 3,184 parts · 176 categories

3,184 items

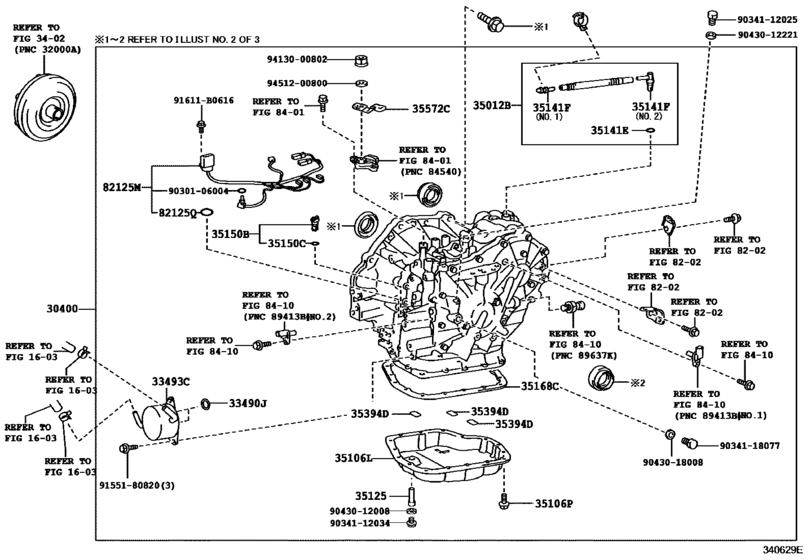

Transaxle Assy(Cvt) ([05.2015 - ] K313 (1505- )ZGE20) 44

#	OEM	Part name
30400	30400-20041	Transaxle Assy, Continuously Variable
30400	30400-68020	Transaxle Assy, Continuously Variable
30400	30400-68030	Transaxle Assy, Continuously Variable
30400	91612-61045	Bolt(For Transaxle & Engine Setting)
30400	90311-45027	Seal, Type T Oil(For Cvt Oil Pump)
33490	90301-20012	Ring, O (For Transmission Oil Cooler)
33493	33493-20050	Cooler, Oil
33493	33493-20060	Cooler, Oil
35012	35012-12100	Hose Sub-Assy, Transmission Breather
35106	35106-12130	Pan Sub-Assy, Transaxle Oil(Cvt)
35106	35106-12131	Pan Sub-Assy, Transaxle Oil(Cvt)
35106	35106-12170	Pan Sub-Assy, Transaxle Oil(Cvt)
35106	35106-12171	Pan Sub-Assy, Transaxle Oil(Cvt)
35106	90119-06173	Bolt, Stud (For Automatic Transmission Oil Pan Setting)
35125	35125-12400	Tube, Transmission Oil Filler, No.1
35125	35125-12430	Tube, Transmission Oil Filler, No.1
35141	90301-06005	Ring, O (For Breather Plug)
35141	90301-06021	Ring, O (For Breather Plug)
35141	90930-03191	Plug, Breather, No.1(Cvt)
35141	90930-03216	Plug, Breather, No.1(Cvt)
35150	35150-44010	Plug(For Transmission Case)
35150	35150-48010	Plug, Transaxle Hole
35150	90301-09173	Ring, O(For Transmission Oil Filler Tube)
35168	35168-12090	Gasket, Transaxle Oil Pan(Cvt)
35168	35168-12091	Gasket, Transaxle Oil Pan(Cvt)
35394	35394-30011	Magnet, Oil Cleaner (For Transmission)
35572	35572-12160	Lever, Transmission Control Shaft
35572	35572-12170	Lever, Transmission Control Shaft
82125	82125-12641	Wire, Transmission
82125	82125-12642	Wire, Transmission
82125	90301-21009	Ring, O(For Transmission Wire)
91611	91611-B0616	Bolt(For Transaxle Case Receiver)
9030106004	90301-06004	Ring, O No.3(For Transmission Solenoid)
9034112025	90341-12025	Plug, No.4
9034112034	90341-12034	Plug Sub-Assy, Drain (Atm)
9034118077	90341-18077	Plug , Filler(CVT FE)
9043012008	90430-12008	Gasket (For Shift Inter Lock Plate)
9043012221	90430-12221	Gasket
9043018008	90430-18008	Gasket
9043018008	90430-T0021	Gasket(For Manual Transmission Filler Plug)
9155180820	91551-80820	Bolt, W/washer (For Transmission Oil Pump Cover)
9413000802	94130-00802	Nut, No.1 (For Center Support Bearing)
9413000802	90170-A0001	New Genuine Part
9451200800	94512-00800	Washer, No.1 (For Propeller Shaft & Differential Setting)

OEM	Part name	Category
30400-20041	Transaxle Assy, Continuously Variable	Transaxle Assy(Cvt) ([05.2015 - ] K313 (1505- )ZGE20)
30400-68020	Transaxle Assy, Continuously Variable	Transaxle Assy(Cvt) ([05.2015 - ] K313 (1505- )ZGE20)
30400-68030	Transaxle Assy, Continuously Variable	Transaxle Assy(Cvt) ([05.2015 - ] K313 (1505- )ZGE20)
33493-20050	Cooler, Oil	Transaxle Assy(Cvt) ([05.2015 - ] K313 (1505- )ZGE20)
33493-20060	Cooler, Oil	Transaxle Assy(Cvt) ([05.2015 - ] K313 (1505- )ZGE20)
35012-12100	Hose Sub-Assy, Transmission Breather	Transaxle Assy(Cvt) ([05.2015 - ] K313 (1505- )ZGE20)
35106-12130	Pan Sub-Assy, Transaxle Oil(Cvt)	Transaxle Assy(Cvt) ([05.2015 - ] K313 (1505- )ZGE20)
35106-12131	Pan Sub-Assy, Transaxle Oil(Cvt)	Transaxle Assy(Cvt) ([05.2015 - ] K313 (1505- )ZGE20)
35106-12170	Pan Sub-Assy, Transaxle Oil(Cvt)	Transaxle Assy(Cvt) ([05.2015 - ] K313 (1505- )ZGE20)
35106-12171	Pan Sub-Assy, Transaxle Oil(Cvt)	Transaxle Assy(Cvt) ([05.2015 - ] K313 (1505- )ZGE20)
35125-12400	Tube, Transmission Oil Filler, No.1	Transaxle Assy(Cvt) ([05.2015 - ] K313 (1505- )ZGE20)
35125-12430	Tube, Transmission Oil Filler, No.1	Transaxle Assy(Cvt) ([05.2015 - ] K313 (1505- )ZGE20)
35150-44010	Plug(For Transmission Case)	Transaxle Assy(Cvt) ([05.2015 - ] K313 (1505- )ZGE20)
35150-48010	Plug, Transaxle Hole	Transaxle Assy(Cvt) ([05.2015 - ] K313 (1505- )ZGE20)
35168-12090	Gasket, Transaxle Oil Pan(Cvt)	Transaxle Assy(Cvt) ([05.2015 - ] K313 (1505- )ZGE20)
35168-12091	Gasket, Transaxle Oil Pan(Cvt)	Transaxle Assy(Cvt) ([05.2015 - ] K313 (1505- )ZGE20)
35394-30011	Magnet, Oil Cleaner (For Transmission)	Transaxle Assy(Cvt) ([05.2015 - ] K313 (1505- )ZGE20)
35572-12160	Lever, Transmission Control Shaft	Transaxle Assy(Cvt) ([05.2015 - ] K313 (1505- )ZGE20)
35572-12170	Lever, Transmission Control Shaft	Transaxle Assy(Cvt) ([05.2015 - ] K313 (1505- )ZGE20)
82125-12641	Wire, Transmission	Transaxle Assy(Cvt) ([05.2015 - ] K313 (1505- )ZGE20)
82125-12642	Wire, Transmission	Transaxle Assy(Cvt) ([05.2015 - ] K313 (1505- )ZGE20)
90119-06173	Bolt, Stud (For Automatic Transmission Oil Pan Setting)	Transaxle Assy(Cvt) ([05.2015 - ] K313 (1505- )ZGE20)
90170-A0001	New Genuine Part	Transaxle Assy(Cvt) ([05.2015 - ] K313 (1505- )ZGE20)
90301-06004	Ring, O No.3(For Transmission Solenoid)	Transaxle Assy(Cvt) ([05.2015 - ] K313 (1505- )ZGE20)
90301-06005	Ring, O (For Breather Plug)	Transaxle Assy(Cvt) ([05.2015 - ] K313 (1505- )ZGE20)
90301-06021	Ring, O (For Breather Plug)	Transaxle Assy(Cvt) ([05.2015 - ] K313 (1505- )ZGE20)
90301-09173	Ring, O(For Transmission Oil Filler Tube)	Transaxle Assy(Cvt) ([05.2015 - ] K313 (1505- )ZGE20)
90301-20012	Ring, O (For Transmission Oil Cooler)	Transaxle Assy(Cvt) ([05.2015 - ] K313 (1505- )ZGE20)
90301-21009	Ring, O(For Transmission Wire)	Transaxle Assy(Cvt) ([05.2015 - ] K313 (1505- )ZGE20)
90311-45027	Seal, Type T Oil(For Cvt Oil Pump)	Transaxle Assy(Cvt) ([05.2015 - ] K313 (1505- )ZGE20)
90341-12025	Plug, No.4	Transaxle Assy(Cvt) ([05.2015 - ] K313 (1505- )ZGE20)
90341-12034	Plug Sub-Assy, Drain (Atm)	Transaxle Assy(Cvt) ([05.2015 - ] K313 (1505- )ZGE20)
90341-18077	Plug , Filler(CVT FE)	Transaxle Assy(Cvt) ([05.2015 - ] K313 (1505- )ZGE20)
90430-12008	Gasket (For Shift Inter Lock Plate)	Transaxle Assy(Cvt) ([05.2015 - ] K313 (1505- )ZGE20)
90430-12221	Gasket	Transaxle Assy(Cvt) ([05.2015 - ] K313 (1505- )ZGE20)
90430-18008	Gasket	Transaxle Assy(Cvt) ([05.2015 - ] K313 (1505- )ZGE20)
90430-T0021	Gasket(For Manual Transmission Filler Plug)	Transaxle Assy(Cvt) ([05.2015 - ] K313 (1505- )ZGE20)
90930-03191	Plug, Breather, No.1(Cvt)	Transaxle Assy(Cvt) ([05.2015 - ] K313 (1505- )ZGE20)
90930-03216	Plug, Breather, No.1(Cvt)	Transaxle Assy(Cvt) ([05.2015 - ] K313 (1505- )ZGE20)
91551-80820	Bolt, W/washer (For Transmission Oil Pump Cover)	Transaxle Assy(Cvt) ([05.2015 - ] K313 (1505- )ZGE20)
91611-B0616	Bolt(For Transaxle Case Receiver)	Transaxle Assy(Cvt) ([05.2015 - ] K313 (1505- )ZGE20)
91612-61045	Bolt(For Transaxle & Engine Setting)	Transaxle Assy(Cvt) ([05.2015 - ] K313 (1505- )ZGE20)
94130-00802	Nut, No.1 (For Center Support Bearing)	Transaxle Assy(Cvt) ([05.2015 - ] K313 (1505- )ZGE20)
94512-00800	Washer, No.1 (For Propeller Shaft & Differential Setting)	Transaxle Assy(Cvt) ([05.2015 - ] K313 (1505- )ZGE20)
