Search › Model › ZGE20

ZGE20

Toyota WISH · 2009 · 3,184 parts · 176 categories

← Back to categories

3,184 items

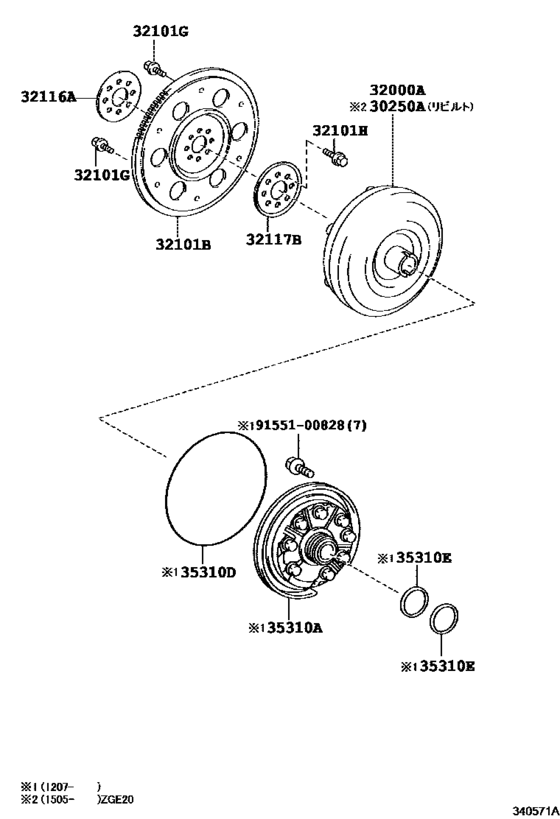

Torque Converter, Front Oil Pump(Cvt) ([03.2009 - ] K311,K311F,K313 (0903- )ZGE20,25) 14

#	OEM	Part name
30250	30250-12490	Converter Assy, Torque, Rebuilt
32000	32000-12400	Converter Assy, Torque
32000	32000-12490	Converter Assy, Torque
32101	32101-12100	Gear Sub-Assy, Drive Plate & Ring
32101	90109-08113	Bolt(For Drive Plate & Torque Converter Setting)
32101	90119-08498	Bolt(For Drive Plate & Torque Converter Setting)
32101	90105-10048	Bolt, Flywheel Setting
32116	32116-12030	Spacer, Drive Plate, Front
32117	32117-12040	Spacer, Drive Plate, Rear
35310	35310-12150	Pump Assy, Front Oil
35310	90301-99133	Ring, O (For Front Oil Pump)
35310	90301-99202	Ring, O (For Front Oil Pump)
35310	35617-12030	Seal, Type T Oil (For Front Oil Pump)
9155100828	91551-00828	Bolt (For Transaxle Rear Cover Setting)

OEM	Part name	Category
30250-12490	Converter Assy, Torque, Rebuilt	Torque Converter, Front Oil Pump(Cvt) ([03.2009 - ] K311,K311F,K313 (0903- )ZGE20,25)
32000-12400	Converter Assy, Torque	Torque Converter, Front Oil Pump(Cvt) ([03.2009 - ] K311,K311F,K313 (0903- )ZGE20,25)
32000-12490	Converter Assy, Torque	Torque Converter, Front Oil Pump(Cvt) ([03.2009 - ] K311,K311F,K313 (0903- )ZGE20,25)
32101-12100	Gear Sub-Assy, Drive Plate & Ring	Torque Converter, Front Oil Pump(Cvt) ([03.2009 - ] K311,K311F,K313 (0903- )ZGE20,25)
32116-12030	Spacer, Drive Plate, Front	Torque Converter, Front Oil Pump(Cvt) ([03.2009 - ] K311,K311F,K313 (0903- )ZGE20,25)
32117-12040	Spacer, Drive Plate, Rear	Torque Converter, Front Oil Pump(Cvt) ([03.2009 - ] K311,K311F,K313 (0903- )ZGE20,25)
35310-12150	Pump Assy, Front Oil	Torque Converter, Front Oil Pump(Cvt) ([03.2009 - ] K311,K311F,K313 (0903- )ZGE20,25)
35617-12030	Seal, Type T Oil (For Front Oil Pump)	Torque Converter, Front Oil Pump(Cvt) ([03.2009 - ] K311,K311F,K313 (0903- )ZGE20,25)
90105-10048	Bolt, Flywheel Setting	Torque Converter, Front Oil Pump(Cvt) ([03.2009 - ] K311,K311F,K313 (0903- )ZGE20,25)
90109-08113	Bolt(For Drive Plate & Torque Converter Setting)	Torque Converter, Front Oil Pump(Cvt) ([03.2009 - ] K311,K311F,K313 (0903- )ZGE20,25)
90119-08498	Bolt(For Drive Plate & Torque Converter Setting)	Torque Converter, Front Oil Pump(Cvt) ([03.2009 - ] K311,K311F,K313 (0903- )ZGE20,25)
90301-99133	Ring, O (For Front Oil Pump)	Torque Converter, Front Oil Pump(Cvt) ([03.2009 - ] K311,K311F,K313 (0903- )ZGE20,25)
90301-99202	Ring, O (For Front Oil Pump)	Torque Converter, Front Oil Pump(Cvt) ([03.2009 - ] K311,K311F,K313 (0903- )ZGE20,25)
91551-00828	Bolt (For Transaxle Rear Cover Setting)	Torque Converter, Front Oil Pump(Cvt) ([03.2009 - ] K311,K311F,K313 (0903- )ZGE20,25)

Source: Public OEM parts-catalog data
Variants: 2 / 6
Category: 176
Collected: 2026-08-04
