Search › Model › ZGE20
ZGE20

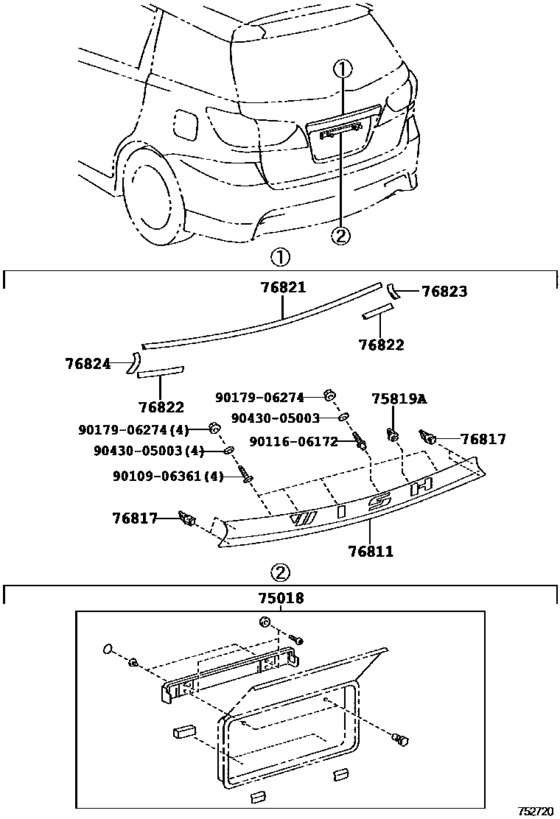

Rear Moulding ([04.2012 - ] (1204- )) 12
| # | OEM | Part name |
|---|---|---|
| 75018 | 75010-48020 | Frame Sub-Assy, Rear License Plate |
| 75819 | 75819-33010 | Clip, Luggage Compartment Door Moulding |
| 76811 | 76811-68130 | Garnish, Back Door, Outside |
| 76817 | 76817-50010 | Clip, Back Door Outside Garnish |
| 76821 | 76821-68070 | Protector, Back Door Garnish Moulding, Upper |
| 76822 | 76822-68010 | Protector, Back Door Garnish Moulding, Lower |
| 76823 | 76823-68010 | Protector, Back Door Garnish Moulding, Rh |
| 76824 | 76824-68010 | Protector, Back Door Garnish Moulding, Lh |
| 9010906361 | 90109-06361 | BOLT |
| 9011606172 | 90116-06172 | BOLT STUD |
| 9017906274 | 90179-06274 | Nut |
| 9043005003 | 90430-05003 | GASKET |
| OEM | Part name | Category |
|---|---|---|
| 75010-48020 | Frame Sub-Assy, Rear License Plate | Rear Moulding ([04.2012 - ] (1204- )) |
| 75819-33010 | Clip, Luggage Compartment Door Moulding | Rear Moulding ([04.2012 - ] (1204- )) |
| 76811-68130 | Garnish, Back Door, Outside | Rear Moulding ([04.2012 - ] (1204- )) |
| 76817-50010 | Clip, Back Door Outside Garnish | Rear Moulding ([04.2012 - ] (1204- )) |
| 76821-68070 | Protector, Back Door Garnish Moulding, Upper | Rear Moulding ([04.2012 - ] (1204- )) |
| 76822-68010 | Protector, Back Door Garnish Moulding, Lower | Rear Moulding ([04.2012 - ] (1204- )) |
| 76823-68010 | Protector, Back Door Garnish Moulding, Rh | Rear Moulding ([04.2012 - ] (1204- )) |
| 76824-68010 | Protector, Back Door Garnish Moulding, Lh | Rear Moulding ([04.2012 - ] (1204- )) |
| 90109-06361 | BOLT | Rear Moulding ([04.2012 - ] (1204- )) |
| 90116-06172 | BOLT STUD | Rear Moulding ([04.2012 - ] (1204- )) |
| 90179-06274 | Nut | Rear Moulding ([04.2012 - ] (1204- )) |
| 90430-05003 | GASKET | Rear Moulding ([04.2012 - ] (1204- )) |
