ZGE20

Toyota WISH · 2009 · 3,184 parts · 176 categories

3,184 items

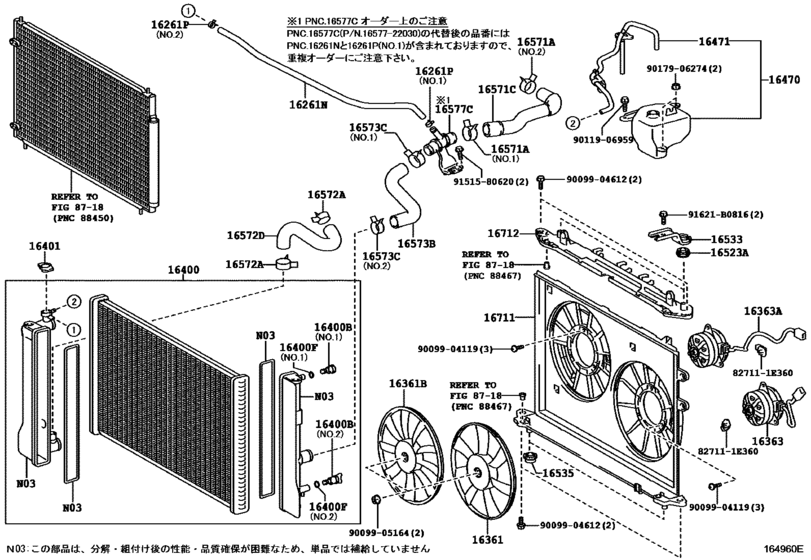

Radiator & Water Outlet ([03.2009 - 05.2015] (0903-1505)) 48

#	OEM	Part name
0	82711-1E360	Clamp, Wiring Harness
16261	16261-21160	Hose, Water By-Pass, No.1
16261	16261-37090	Hose, Water By-Pass, No.2
16261	16261-37091	Hose, Water By-Pass, No.2
16261	90467-15022	Clip Or Clamp(For Ventilation Hose)
16261	96136-41901	Clip Or Clamp(For Ventilation Hose)
16361	16361-28350	Fan
16361	16361-28360	Fan, No.2
16363	16363-37030	Motor, Cooling Fan
16363	16363-37031	Motor, Cooling Fan
16363	16363-28210	Motor, Cooling Fan, No.2
16363	16363-37090	Motor, Cooling Fan, No.2
16400	16410-22150	Radiator Assy
16400	16410-22151	Radiator Assy
16400	16410-37201	Radiator Assy
16400	16417-21280	Cock Sub-Assy, Radiator Drain
16400	16417-28530	Plug, Radiator Drain Cock
16400	16418-20290	Packing(For Radiator Drain Cock)
16400	16418-20291	Packing(For Radiator Drain Cock)
16400	16492-21050	Ring, O(For Oil Cooler Drain Cock)
16401	16401-20353	Cap Sub-Assy, Radiator
16401	16401-36030	Cap Sub-Assy, Radiator
16470	16470-37030	Tank Assy, Radiator Reserve
16471	16405-37050	Cap Sub-Assy, Reserve Tank
16523	16523-21050	Cushion, Radiator Support
16533	16533-21040	Support, Radiator, Upper
16535	16535-37010	Support, Radiator, Lower
16571	96136-43901	Clamp Or Clip, Hose(For Radiator Inlet)
16571	96136-44301	Clamp Or Clip, Hose(For Radiator Inlet)
16571	16571-37110	Hose, Radiator, No.1
16572	16572-37130	Hose, Radiator, No.2
16573	16573-21090	Hose, Radiator, No.3
16573	16573-37060	Hose, Radiator, No.3
16573	90466-35001	Clamp Or Clip, Hose(For Radiator Inlet)
16577	16577-22030	Pipe, Radiator
16577	16577-22H03	Pipe, Radiator, No.7
16577	16577-22H02	Pipe, Radiator, No.7
16577	16577-22H01	Pipe, Radiator, No.7
16577	16577-22031	Pipe, Radiator
16711	16711-37070	Shroud, Fan
16712	16712-37040	Shroud, Fan, No.2
91621	91621-B0816	BOLT WWASHER
9009904119	90099-04119	BOLT WASHER HEAD
9009904612	90099-04612	Bolt
9009905164	90099-05164	Nut
9011906959	90119-06959	New Genuine Part
9017906274	90179-06274	Nut
9151580620	91515-80620	New Genuine Part

OEM	Part name	Category
16261-21160	Hose, Water By-Pass, No.1	Radiator & Water Outlet ([03.2009 - 05.2015] (0903-1505))
16261-37090	Hose, Water By-Pass, No.2	Radiator & Water Outlet ([03.2009 - 05.2015] (0903-1505))
16261-37091	Hose, Water By-Pass, No.2	Radiator & Water Outlet ([03.2009 - 05.2015] (0903-1505))
16361-28350	Fan	Radiator & Water Outlet ([03.2009 - 05.2015] (0903-1505))
16361-28360	Fan, No.2	Radiator & Water Outlet ([03.2009 - 05.2015] (0903-1505))
16363-28210	Motor, Cooling Fan, No.2	Radiator & Water Outlet ([03.2009 - 05.2015] (0903-1505))
16363-37030	Motor, Cooling Fan	Radiator & Water Outlet ([03.2009 - 05.2015] (0903-1505))
16363-37031	Motor, Cooling Fan	Radiator & Water Outlet ([03.2009 - 05.2015] (0903-1505))
16363-37090	Motor, Cooling Fan, No.2	Radiator & Water Outlet ([03.2009 - 05.2015] (0903-1505))
16401-20353	Cap Sub-Assy, Radiator	Radiator & Water Outlet ([03.2009 - 05.2015] (0903-1505))
16401-36030	Cap Sub-Assy, Radiator	Radiator & Water Outlet ([03.2009 - 05.2015] (0903-1505))
16405-37050	Cap Sub-Assy, Reserve Tank	Radiator & Water Outlet ([03.2009 - 05.2015] (0903-1505))
16410-22150	Radiator Assy	Radiator & Water Outlet ([03.2009 - 05.2015] (0903-1505))
16410-22151	Radiator Assy	Radiator & Water Outlet ([03.2009 - 05.2015] (0903-1505))
16410-37201	Radiator Assy	Radiator & Water Outlet ([03.2009 - 05.2015] (0903-1505))
16417-21280	Cock Sub-Assy, Radiator Drain	Radiator & Water Outlet ([03.2009 - 05.2015] (0903-1505))
16417-28530	Plug, Radiator Drain Cock	Radiator & Water Outlet ([03.2009 - 05.2015] (0903-1505))
16418-20290	Packing(For Radiator Drain Cock)	Radiator & Water Outlet ([03.2009 - 05.2015] (0903-1505))
16418-20291	Packing(For Radiator Drain Cock)	Radiator & Water Outlet ([03.2009 - 05.2015] (0903-1505))
16470-37030	Tank Assy, Radiator Reserve	Radiator & Water Outlet ([03.2009 - 05.2015] (0903-1505))
16492-21050	Ring, O(For Oil Cooler Drain Cock)	Radiator & Water Outlet ([03.2009 - 05.2015] (0903-1505))
16523-21050	Cushion, Radiator Support	Radiator & Water Outlet ([03.2009 - 05.2015] (0903-1505))
16533-21040	Support, Radiator, Upper	Radiator & Water Outlet ([03.2009 - 05.2015] (0903-1505))
16535-37010	Support, Radiator, Lower	Radiator & Water Outlet ([03.2009 - 05.2015] (0903-1505))
16571-37110	Hose, Radiator, No.1	Radiator & Water Outlet ([03.2009 - 05.2015] (0903-1505))
16572-37130	Hose, Radiator, No.2	Radiator & Water Outlet ([03.2009 - 05.2015] (0903-1505))
16573-21090	Hose, Radiator, No.3	Radiator & Water Outlet ([03.2009 - 05.2015] (0903-1505))
16573-37060	Hose, Radiator, No.3	Radiator & Water Outlet ([03.2009 - 05.2015] (0903-1505))
16577-22030	Pipe, Radiator	Radiator & Water Outlet ([03.2009 - 05.2015] (0903-1505))
16577-22031	Pipe, Radiator	Radiator & Water Outlet ([03.2009 - 05.2015] (0903-1505))
16577-22H01	Pipe, Radiator, No.7	Radiator & Water Outlet ([03.2009 - 05.2015] (0903-1505))
16577-22H02	Pipe, Radiator, No.7	Radiator & Water Outlet ([03.2009 - 05.2015] (0903-1505))
16577-22H03	Pipe, Radiator, No.7	Radiator & Water Outlet ([03.2009 - 05.2015] (0903-1505))
16711-37070	Shroud, Fan	Radiator & Water Outlet ([03.2009 - 05.2015] (0903-1505))
16712-37040	Shroud, Fan, No.2	Radiator & Water Outlet ([03.2009 - 05.2015] (0903-1505))
82711-1E360	Clamp, Wiring Harness	Radiator & Water Outlet ([03.2009 - 05.2015] (0903-1505))
90099-04119	BOLT WASHER HEAD	Radiator & Water Outlet ([03.2009 - 05.2015] (0903-1505))
90099-04612	Bolt	Radiator & Water Outlet ([03.2009 - 05.2015] (0903-1505))
90099-05164	Nut	Radiator & Water Outlet ([03.2009 - 05.2015] (0903-1505))
90119-06959	New Genuine Part	Radiator & Water Outlet ([03.2009 - 05.2015] (0903-1505))
90179-06274	Nut	Radiator & Water Outlet ([03.2009 - 05.2015] (0903-1505))
90466-35001	Clamp Or Clip, Hose(For Radiator Inlet)	Radiator & Water Outlet ([03.2009 - 05.2015] (0903-1505))
90467-15022	Clip Or Clamp(For Ventilation Hose)	Radiator & Water Outlet ([03.2009 - 05.2015] (0903-1505))
91515-80620	New Genuine Part	Radiator & Water Outlet ([03.2009 - 05.2015] (0903-1505))
91621-B0816	BOLT WWASHER	Radiator & Water Outlet ([03.2009 - 05.2015] (0903-1505))
96136-41901	Clip Or Clamp(For Ventilation Hose)	Radiator & Water Outlet ([03.2009 - 05.2015] (0903-1505))
96136-43901	Clamp Or Clip, Hose(For Radiator Inlet)	Radiator & Water Outlet ([03.2009 - 05.2015] (0903-1505))
96136-44301	Clamp Or Clip, Hose(For Radiator Inlet)	Radiator & Water Outlet ([03.2009 - 05.2015] (0903-1505))
