ZGE20

Toyota WISH · 2009 · 3,184 parts · 176 categories
ZGE20 ×

← Back to categories

3,184 items

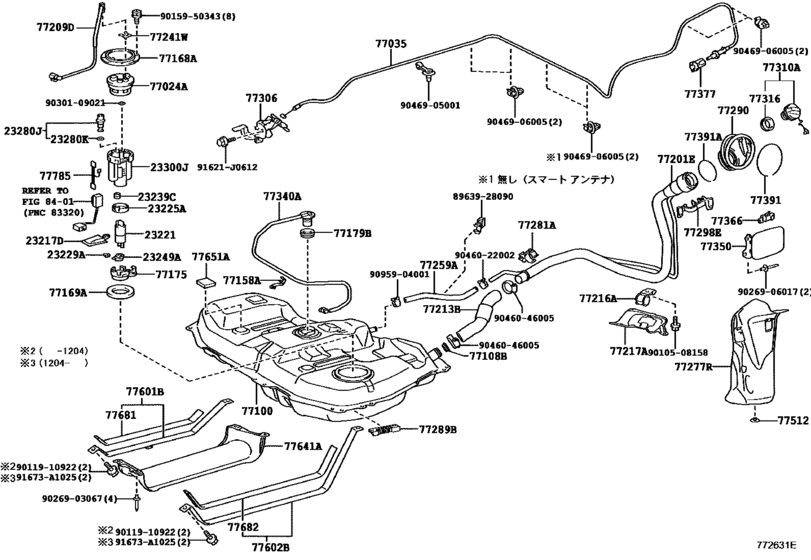

Fuel Tank & Tube ([03.2009 - ] ﾌｭｰｴﾙﾀﾝｸ (0903- )ZGE20,21,22) 65
#OEMPart name
23217 23217-0D070 Filter, Fuel Pump
23221 23221-28290 Pump Assy, Fuel
23225 23225-21010 Spacer, Fuel Pump
23229 23229-16010 Clip(For Fuel Pump Filter)
23229 23219-03010 Clip(For Fuel Pump Filter)
23239 23239-21010 Seal, Fuel Pump Filter
23249 23249-74610 Rubber, Cushion(For Fuel Pump)
23280 23280-20060 Regulator Assy, Fuel Pressure
23280 90301-07020 Ring, O(For Fuel Pressure Regulator)
23300 23300-28040 Filter Assy, Fuel
77024 77024-68010 Plate Sub-Assy, Fuel Suction
77035 77035-68020 Cable Sub-Assy, Fuel Lid Lock Control
77100 77001-68031 Tank Assy, Fuel
77108 77108-12020 Valve Sub-Assy, Fuel Tank Filler Check
77158 77158-68010 Support, Tank Suction Tube
77168 77168-52010 Plate, Fuel Tank Vent Tube Set
77169 77169-33020 Gasket, Fuel Pump Bracket
77175 77175-52020 Support, Fuel Suction, No.2
77179 77179-33010 Gasket, Fuel Tank Evap/vent Tube
77201 77201-68030 Pipe Sub-Assy, Fuel Tank Filler
77209 77209-68010 Tube Sub-Assy, Fuel Tank Main
77213 77213-68010 Hose, Fuel Tank To Filler Pipe
77216 77216-68020 Support, Fuel Tank Filler Pipe, No.1
77217 77217-68010 Support, Fuel Tank Filler Pipe, No.2
77241 77241-32060 Clip, Tube Joint
77259 77259-68010 Hose, Fuel(For Breather Tube)
77277 77277-68011 Protector, Fuel Tank Filler Pipe
77281 77281-68010 Clamp, Fuel Filler Pipe - FUEL TUBE PROTECTOR, NO.1
77289 77289-68010 Clamp, Fuel Tube, No.3
77290 77291-68020 Shield Assy, Fuel Tank Filler Pipe
77298 77298-68041 Support, Fuel Tube Protector, No.3
77306 77306-13020 Lever Sub-Assy, Fuel Lid Lock Open
77310 77300-52030 Cap Assy, Fuel Tank
77316 77316-52040 Gasket, Fuel Tank Cap
77340 77340-68010 Valve Assy, Fuel Cut Off W/tube
77350 77350-68020 Lid Assy, Fuel Filler Opening
77366 77360-30070 Spring, Fuel Filler Opening Lid Hinge
77366 77360-0R010 Spring Assy, Charging Port Opening Lid
77377 77377-12050 Bracket, Fuel Lid Lock Control
77391 77391-42010 Ring, Fuel Inlet Box
77391 77391-12020 Ring, Fuel Inlet Box
77512 90467-07201 Clamp(For Cool Air Intake)
77601 77601-68030 Band Sub-Assy, Fuel Tank, No.1 Rh
77602 77602-68010 Band Sub-Assy, Fuel Tank, No.1 Lh
77641 77641-68010 Protector, Fuel Tank, No.1
77651 77651-20090 Cushion, Fuel Tank, No.1
77681 77616-68010 Seat, Fuel Tank Band, Rh
77682 77616-68020 Seat, Fuel Tank Band, Rh
77785 77785-32010 Harness, Fuel Pump
91621 91621-J0612 BOLT W-WASHER
91673 91673-A1025 New Genuine Part
8963928090 89639-28090 Wire, Brake Control
9010508158 90105-08158 Plug(For Fuel Sub-Tank)
9011910922 90119-10922 BOLT WWASHER
9011910922 90080-11654 New Genuine Part
9015950343 90159-50343 SCREW, W-WASHER
9026903067 90269-03067 RIVET
9026906017 90269-06017 RIVET
9030109021 90301-09021 GASKET
9046022002 90460-22002 CLAMP
9046022002 90460-22001 CLAMP
9046046005 90460-46005 Clamp (For Fuel Filler Pipe)
9046905001 90469-05001 CLAMP
9046906005 90469-06005 Clamp(For Hood Lock Control Cable)
9095904001 90959-04001 Clip, Fuel Hose
