Search › Model › ZD21S
ZD21S

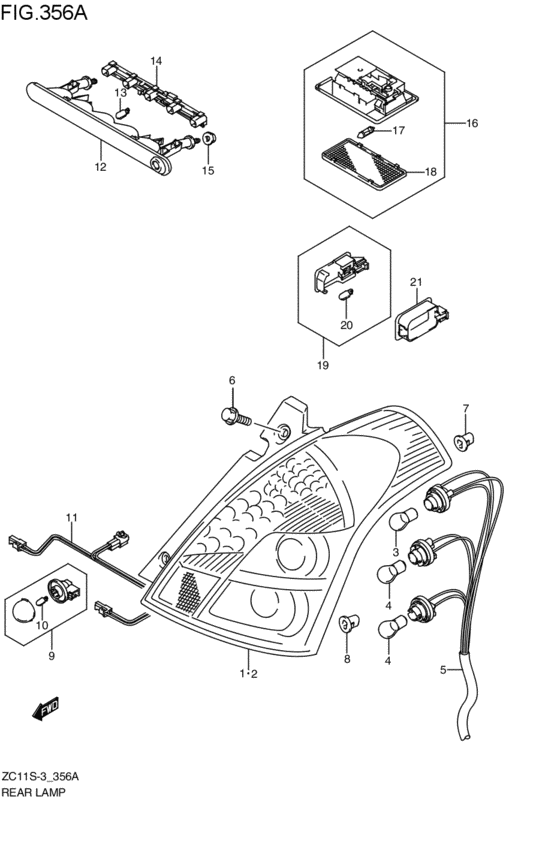

rear lamp (2007-04-01~) 22
| # | OEM | Part name |
|---|---|---|
| 1 | 35650-73K00-000 | LAMP UNIT,RR COMB,R |
| 2 | 35670-73K00-000 | LAMP UNIT,RR COMB,L |
| 3 | 09471-12046-000 | BULB(12V21/5W) |
| 3 | 09471-12128-000 | BULB(12V21/5W,BF141-49642A) |
| 4 | 09471-12045-000 | BULB(12V21W) |
| 5 | 35658-73K00-000 | Socket & cord assy |
| 5 | 35658-73K01-000 | SOCKET&CORD ASSY |
| 6 | 02162-0620C-000 | SCREW |
| 7 | 35153-54G00-000 | GROMMET,RR COMB LAMP |
| 8 | 35153-63G00-000 | GROMMET,RR COMB LAMP |
| 9 | 35910-75F12-000 | Lamp assy,license |
| 10 | 09471-12081-000 | Bulb (12v,5w) - Bulb, 12v,5w (stanley, wb-227e) |
| 10 | 09471-12216-000 | BULB(12V5W) - Bulb (12v5w) |
| 11 | 36843-73K00-000 | WIRE,LICENSE LAMP |
| 12 | 35820-63J00-000 | LAMP UNIT,HIGH MT STOP |
| 14 | 35817-63J00-000 | BULB COVER |
| 15 | 09159-06100-000 | NUT |
| 16 | 36210-63J01-6GS | LAMP ASSY,ROOM |
| 16 | 36210-63J02-6GS | Lamp Assy,room |
| 17 | 09471-12181-000 | BULB(12V10W) |
| 18 | 36212-63J00-000 | LENS |
| 19 | 36210-54G20-000 | LAMP ASSY,LUGGAGE ROOM |
| OEM | Part name | Category |
|---|---|---|
| 02162-0620C-000 | SCREW | rear lamp (2007-04-01~) |
| 09159-06100-000 | NUT | rear lamp (2007-04-01~) |
| 09471-12045-000 | BULB(12V21W) | rear lamp (2007-04-01~) |
| 09471-12046-000 | BULB(12V21/5W) | rear lamp (2007-04-01~) |
| 09471-12081-000 | Bulb (12v,5w) - Bulb, 12v,5w (stanley, wb-227e) | rear lamp (2007-04-01~) |
| 09471-12128-000 | BULB(12V21/5W,BF141-49642A) | rear lamp (2007-04-01~) |
| 09471-12181-000 | BULB(12V10W) | rear lamp (2007-04-01~) |
| 09471-12216-000 | BULB(12V5W) - Bulb (12v5w) | rear lamp (2007-04-01~) |
| 35153-54G00-000 | GROMMET,RR COMB LAMP | rear lamp (2007-04-01~) |
| 35153-63G00-000 | GROMMET,RR COMB LAMP | rear lamp (2007-04-01~) |
| 35650-73K00-000 | LAMP UNIT,RR COMB,R | rear lamp (2007-04-01~) |
| 35658-73K00-000 | Socket & cord assy | rear lamp (2007-04-01~) |
| 35658-73K01-000 | SOCKET&CORD ASSY | rear lamp (2007-04-01~) |
| 35670-73K00-000 | LAMP UNIT,RR COMB,L | rear lamp (2007-04-01~) |
| 35817-63J00-000 | BULB COVER | rear lamp (2007-04-01~) |
| 35820-63J00-000 | LAMP UNIT,HIGH MT STOP | rear lamp (2007-04-01~) |
| 35910-75F12-000 | Lamp assy,license | rear lamp (2007-04-01~) |
| 36210-54G20-000 | LAMP ASSY,LUGGAGE ROOM | rear lamp (2007-04-01~) |
| 36210-63J01-6GS | LAMP ASSY,ROOM | rear lamp (2007-04-01~) |
| 36210-63J02-6GS | Lamp Assy,room | rear lamp (2007-04-01~) |
| 36212-63J00-000 | LENS | rear lamp (2007-04-01~) |
| 36843-73K00-000 | WIRE,LICENSE LAMP | rear lamp (2007-04-01~) |
