Search › Model › ZD21S
ZD21S

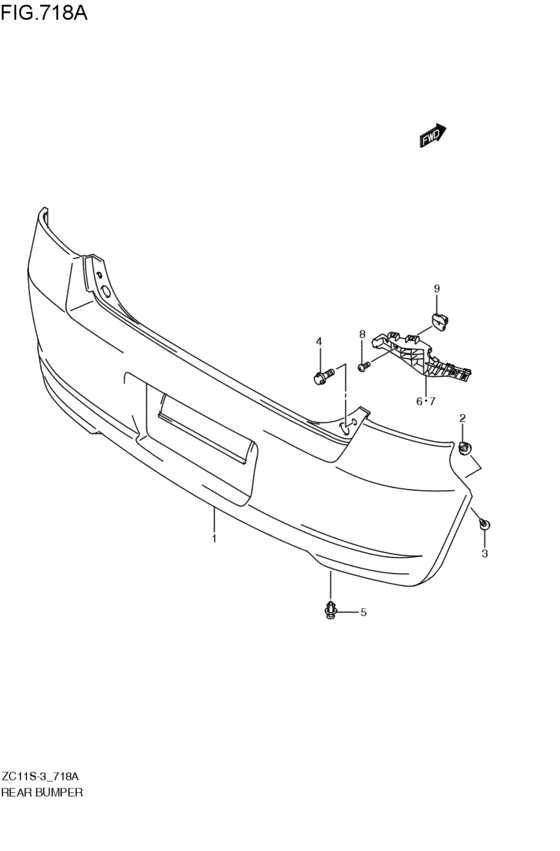

rear bumper (2007-04-01~) 11
| # | OEM | Part name |
|---|---|---|
| 1 | 71811-73K00-Z2S | バンパ,リヤ(シルバー) |
| 1 | 71811-73K00-Z7T | バンパ,リヤ(ホワイト) |
| 1 | 71811-73K00-799 | BUMPER,RR(PRIMARY) |
| 2 | 09148-06007-000 | NUT |
| 3 | 03241-0616C-000 | SCREW |
| 4 | 02162-0616B-000 | SCREW - Bolt, adjust |
| 5 | 09409-08327-000 | CLIP |
| 6 | 71821-73K10-000 | HOLDER,RR BPR SIDE,R |
| 7 | 71822-73K10-000 | HOLDER,RR BPR SIDE,L |
| 8 | 03511-0512A-000 | SCREW |
| 9 | 09148-05031-000 | NUT |
| OEM | Part name | Category |
|---|---|---|
| 02162-0616B-000 | SCREW - Bolt, adjust | rear bumper (2007-04-01~) |
| 03241-0616C-000 | SCREW | rear bumper (2007-04-01~) |
| 03511-0512A-000 | SCREW | rear bumper (2007-04-01~) |
| 09148-05031-000 | NUT | rear bumper (2007-04-01~) |
| 09148-06007-000 | NUT | rear bumper (2007-04-01~) |
| 09409-08327-000 | CLIP | rear bumper (2007-04-01~) |
| 71811-73K00-799 | BUMPER,RR(PRIMARY) | rear bumper (2007-04-01~) |
| 71811-73K00-Z2S | バンパ,リヤ(シルバー) | rear bumper (2007-04-01~) |
| 71811-73K00-Z7T | バンパ,リヤ(ホワイト) | rear bumper (2007-04-01~) |
| 71821-73K10-000 | HOLDER,RR BPR SIDE,R | rear bumper (2007-04-01~) |
| 71822-73K10-000 | HOLDER,RR BPR SIDE,L | rear bumper (2007-04-01~) |
