ZD11S

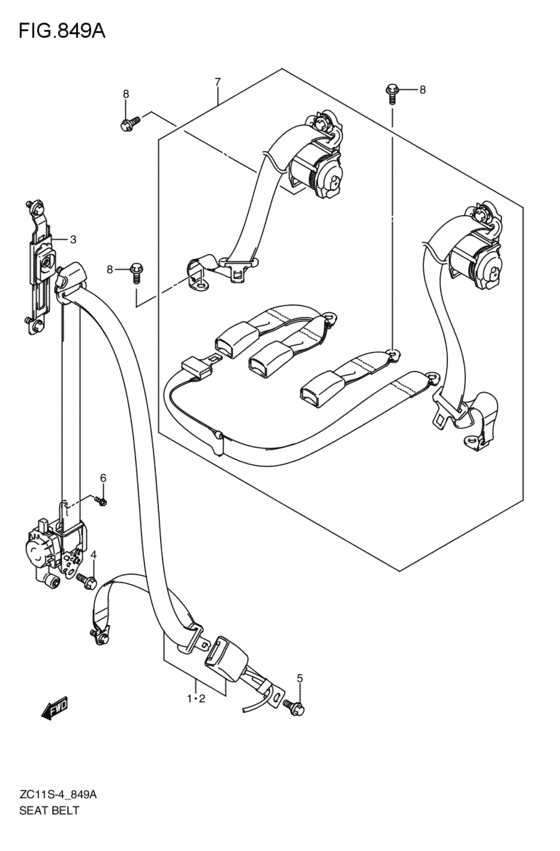

seat belt (2009-02-01~) 14
| # | OEM | Part name |
|---|---|---|
| 1 | 84901-63J11-BHE | Belt assy,fr,r |
| 1 | 84910-63J10-000 | BUCKLE ASSY,FR BELT,R |
| 1 | 84920-63J02-BHE | TONGUE,FR BELT,R |
| 1 | 84921-63J00-000 | COVER,FR BELT |
| 2 | 84902-63J01-BHE | Belt assy,fr,l |
| 2 | 84910-63J00-000 | BUCKLE ASSY,FR BELT,L |
| 2 | 84940-63J02-BHE | TONGUE,FR BELT,L |
| 3 | 84990-63J00-6GS | ADJUSTER ASSY,FR SHLDR |
| 4 | 09103-11001-000 | BOLT(7/16X22) - Bolt, fr belt buckle |
| 5 | 09117-11002-000 | BOLT(11X20) |
| 6 | 02162-0612A-000 | SCREW - Bolt, bracket |
| 7 | 84908-73K30-5PK | BELT ASSY,RR - Black |
| 7 | 84908-73K31-5PK | Belt Assy,rr |
| 8 | 09103-11002-000 | BOLT(7/16X22) |
| OEM | Part name | Category |
|---|---|---|
| 02162-0612A-000 | SCREW - Bolt, bracket | seat belt (2009-02-01~) |
| 09103-11001-000 | BOLT(7/16X22) - Bolt, fr belt buckle | seat belt (2009-02-01~) |
| 09103-11002-000 | BOLT(7/16X22) | seat belt (2009-02-01~) |
| 09117-11002-000 | BOLT(11X20) | seat belt (2009-02-01~) |
| 84901-63J11-BHE | Belt assy,fr,r | seat belt (2009-02-01~) |
| 84902-63J01-BHE | Belt assy,fr,l | seat belt (2009-02-01~) |
| 84908-73K30-5PK | BELT ASSY,RR - Black | seat belt (2009-02-01~) |
| 84908-73K31-5PK | Belt Assy,rr | seat belt (2009-02-01~) |
| 84910-63J00-000 | BUCKLE ASSY,FR BELT,L | seat belt (2009-02-01~) |
| 84910-63J10-000 | BUCKLE ASSY,FR BELT,R | seat belt (2009-02-01~) |
| 84920-63J02-BHE | TONGUE,FR BELT,R | seat belt (2009-02-01~) |
| 84921-63J00-000 | COVER,FR BELT | seat belt (2009-02-01~) |
| 84940-63J02-BHE | TONGUE,FR BELT,L | seat belt (2009-02-01~) |
| 84990-63J00-6GS | ADJUSTER ASSY,FR SHLDR | seat belt (2009-02-01~) |
