Search › Model › ZD11S
ZD11S

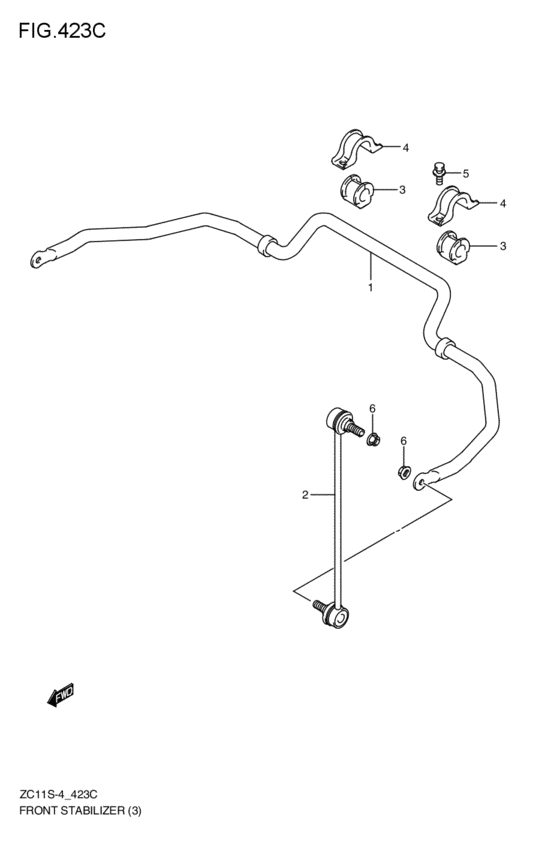

front stabilizer (4WD; 2009-02-01~) 7
| # | OEM | Part name |
|---|---|---|
| 1 | 42311-63J50-000 | BAR,FR STABILIZER |
| 2 | 42420-63J00-000 | JOINT,FR STABILIZER BAR |
| 2 | 42420-63J01-000 | JOINT COMP FR STABILIZER BAR |
| 3 | 42431-63J50-000 | MOUNT,FR STAB BAR |
| 4 | 42441-63J61-000 | BRACKET,FR STABILIZER MOUNT |
| 5 | 09117-08101-000 | BOLT(8X25) |
| 6 | 08316-1010A-000 | NUT - Nut, kick starter |
| OEM | Part name | Category |
|---|---|---|
| 08316-1010A-000 | NUT - Nut, kick starter | front stabilizer (4WD; 2009-02-01~) |
| 09117-08101-000 | BOLT(8X25) | front stabilizer (4WD; 2009-02-01~) |
| 42311-63J50-000 | BAR,FR STABILIZER | front stabilizer (4WD; 2009-02-01~) |
| 42420-63J00-000 | JOINT,FR STABILIZER BAR | front stabilizer (4WD; 2009-02-01~) |
| 42420-63J01-000 | JOINT COMP FR STABILIZER BAR | front stabilizer (4WD; 2009-02-01~) |
| 42431-63J50-000 | MOUNT,FR STAB BAR | front stabilizer (4WD; 2009-02-01~) |
| 42441-63J61-000 | BRACKET,FR STABILIZER MOUNT | front stabilizer (4WD; 2009-02-01~) |
