Search › Model › ZD11S
ZD11S

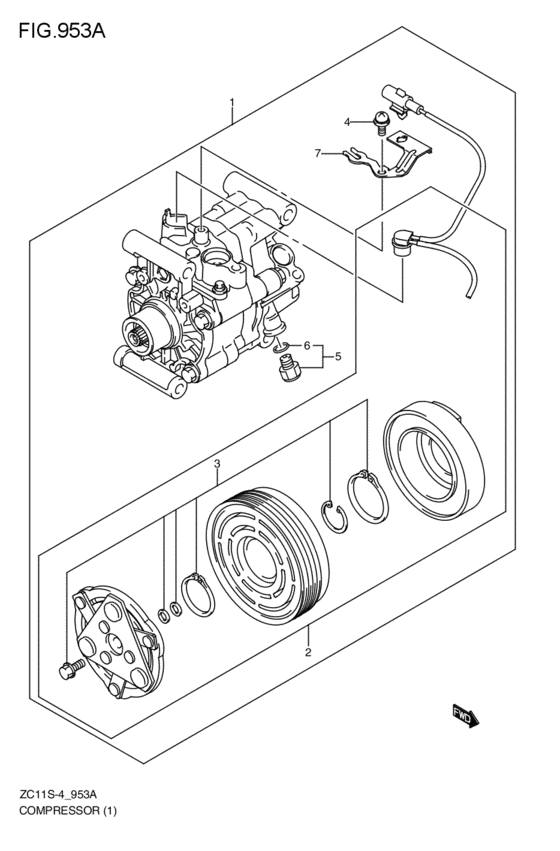

compressor (M13A; 2009-02-01~) 7
| # | OEM | Part name |
|---|---|---|
| 1 | 95200-63JA1-000 | COMPRESSOR ASSY |
| 2 | 95210-63JA0-000 | CLUTCH,MAGNET |
| 3 | 95212-58JA0-000 | CLIP KIT |
| 4 | 95254-58JA0-000 | SCREW,CLAMP |
| 5 | 95271-58JA0-000 | VALVE,RELIEF |
| 6 | 95272-58JA0-000 | O-RING |
| 7 | 95291-63JA0-000 | PROTECTOR |
| OEM | Part name | Category |
|---|---|---|
| 95200-63JA1-000 | COMPRESSOR ASSY | compressor (M13A; 2009-02-01~) |
| 95210-63JA0-000 | CLUTCH,MAGNET | compressor (M13A; 2009-02-01~) |
| 95212-58JA0-000 | CLIP KIT | compressor (M13A; 2009-02-01~) |
| 95254-58JA0-000 | SCREW,CLAMP | compressor (M13A; 2009-02-01~) |
| 95271-58JA0-000 | VALVE,RELIEF | compressor (M13A; 2009-02-01~) |
| 95272-58JA0-000 | O-RING | compressor (M13A; 2009-02-01~) |
| 95291-63JA0-000 | PROTECTOR | compressor (M13A; 2009-02-01~) |
